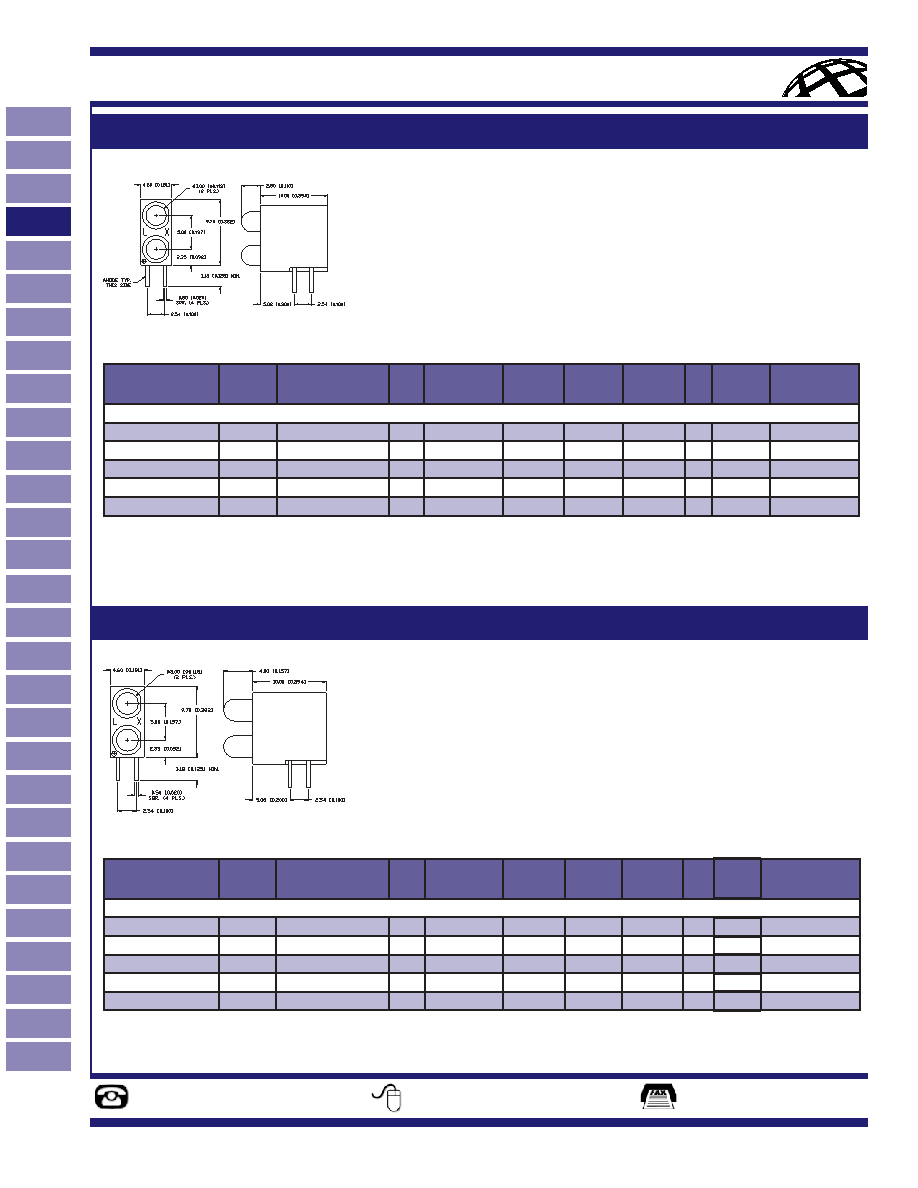

LED Indicators ~ PCB ~ Dome Lens
SSF-LXH2103XX/3 Series
T-3mm Dual Tower, 0.2” Leadframe Offset, 3mm Protrusion
SSF-LXH2103XX/4 Series
T-3mm Dual Tower, 0.2” Leadframe Offset, 4mm Protrusion
Lumex Part Number
Die
Material
Emitted Color
Peak
(nm)
Lens
Operating
Current
(mA)
Operating
TYP. Vf (V)
Brightness
TYP. Mcd
@
mA
View
Angle° 2θ
Component LED
Used
HIGH BRIGHTNESS
SSF-LXH2103SISID/3
AlInGaP
Super High Intensity Red
636
Red Diffused
5-25
2
100
20
60
SSL-LX3034SID
SSF-LXH2103SOSOD/3
AlInGaP
Super Orange
610
Orange Diffused
5-25
2
100
20
60
SSL-LX3034SOD
SSF-LXH2103SUGUGD3
AlInGaP
Super Ultra Green
574
Green Diffused
5-25
2.2
60
20
60
SSL-LX3034SUGD
SSF-LXH2103SYSYD/3
AlInGaP
Super Yellow
590
Yellow Diffused
5-25
2
100
20
60
SSL-LX3034SYD
SSF-LXH2103USBSBD3
InGaN/SiC
Ultra Super Blue
470
Blue Diffused
5-25
3.5
80
20
60
SSL-LX3034USBD
Lumex Part Number
Die
Material
Emitted Color
Peak
(nm)
Lens
Operating
Current
(mA)
Operating
TYP. Vf
(V)
Brightness
TYP. Mcd
@
mA
View
Angle°
2θ
Component LED
Used
HIGH BRIGHTNESS
SSF-LXH2103SISID/4
AlInGaP
Super High Intensity Red
636
Red Diffused
5-25
2
100
20
60
SSL-LX3054SID
SSF-LXH2103SOSOD/4
AlInGaP
Super Orange
610
Orange Diffused
5-25
2
100
20
60
SSL-LX3054SOD
SSF-LXH2103SUGUGD4
AlInGaP
Super Ultra Green
574
Green Diffused
5-25
2.2
180
20
60
SSL-LX3054SUGD
SSF-LXH2103SYSYD/4
AlInGaP
Super Yellow
590
Yellow Diffused
5-25
2
250
20
60
SSL-LX3054SYD
SSF-LXH2103USBSBD4
InGaN/SiC
Ultra Super Blue
470
Blue Diffused
5-25
3.5
80
20
60
SSL-LX3054USBD
FEATURES / OPTIONS
State-of-the-Art, Chip Technology
Easy Drop-In Board Installation
Right Angle to the Board Position
Choice of Colors and Lens Finishes
Low Current Versions Available
Color or Intensity Sorting Available
Blinking LED
With Internal Resistor for 5V and 12V Operation
Black or Gray Holders for High Contrast
Color Combinations
APPLICATIONS / USES
Board Level Status Indicators
Board Level Fault Indicators
Circuit Troubleshooting Indicators
Warning/Alarm Lights
Backlighting of Overlays
Post Lighting Switches and Keypads
FEATURES / OPTIONS
State-of-the-Art, Chip Technology
Easy Drop-In Board Installation
Right Angle to the Board Position
Choice of Colors and Lens Finishes
Low Current Versions Available
Color or Intensity Sorting Available
Blinking LED
With Internal Resistor for 5V and 12V Operation
Black or Gray Holders for High Contrast
Color Combinations
APPLICATIONS / USES
Board Level Status Indicators
Board Level Fault Indicators
Circuit Troubleshooting Indicators
Warning/Alarm Lights
Backlighting of Overlays
Post Lighting Switches and Keypads
