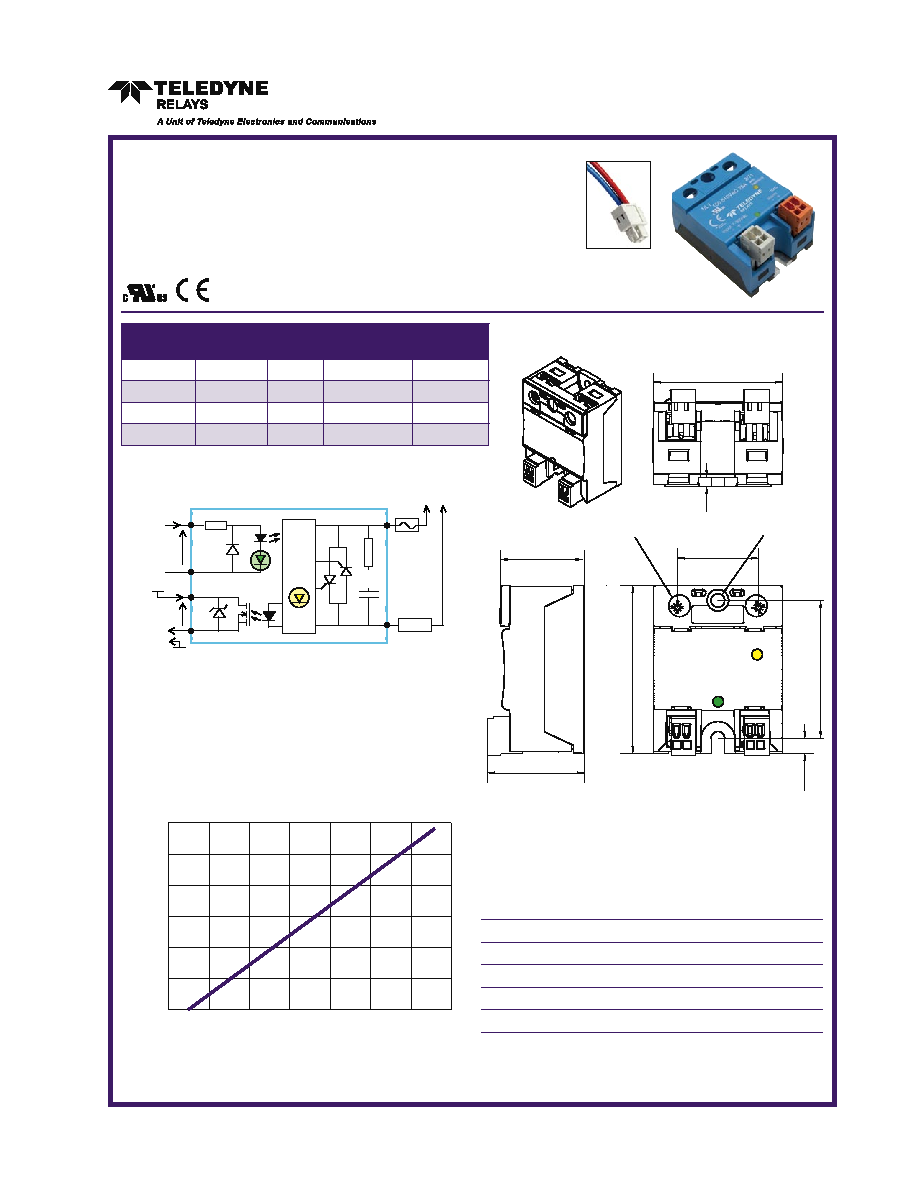

2005 TELEDYNE RELAYS
(800) 284-7007 www.teledynerelays.com
SSH Page 1
SSH\042005\Q1
NEW Series SSH
Output to 75A, 510 Vac with Diagnostics
High Industrial Performance (HIPpak) Solid-State Relays
FEATURES/BENEFITS
Zero-cross models with system diagnostics
Very low zero-cross turn-on voltage
Input and output protection and control LED standard
IP20 protection by aps on terminals
With double removable input connectors; spring terminals
Designed in conformity with EN60947-4-3 (IEC947-4-3)
and EN60950/VDE0805 (Reinforced Insulation)
Part No.
Load
Voltage
Load
Current
Control
Voltage
Switch
Type
SSH24D35 50-265 Vac
35A
7-30 Vdc
Zero Cross
SSH24D50 24-265 Vac
50A
7-30 Vdc
Zero Cross
SSH48D50 24-510 Vac
50A
7-30 Vdc
Zero Cross
SSH48D75 24-510 Vac
75A
7-30 Vdc
Zero Cross
TYPICAL APPLICATION
Figure 1 — SSH relays
MECHANICAL SPECIFICATION
Figure 2 — SSH relays
CONTROL CHARACTERISTICS
Figure 3 — SSH relays
ELECTRICAL SPECIFICATIONS
(+25°C ambient temperature unless otherwise specied)
INPUT (CONTROL) SPECIFICATIONS
Min
Max
Units
Input Current Range
4
28
mA
Must Turn-Off Voltage
3.0
Vdc
Reverse Voltage Protection
30
V
Input Resistor (Typ)
1000
Ω
Two removable
input connectors
with spring
Grey: Control
Orange: Status
