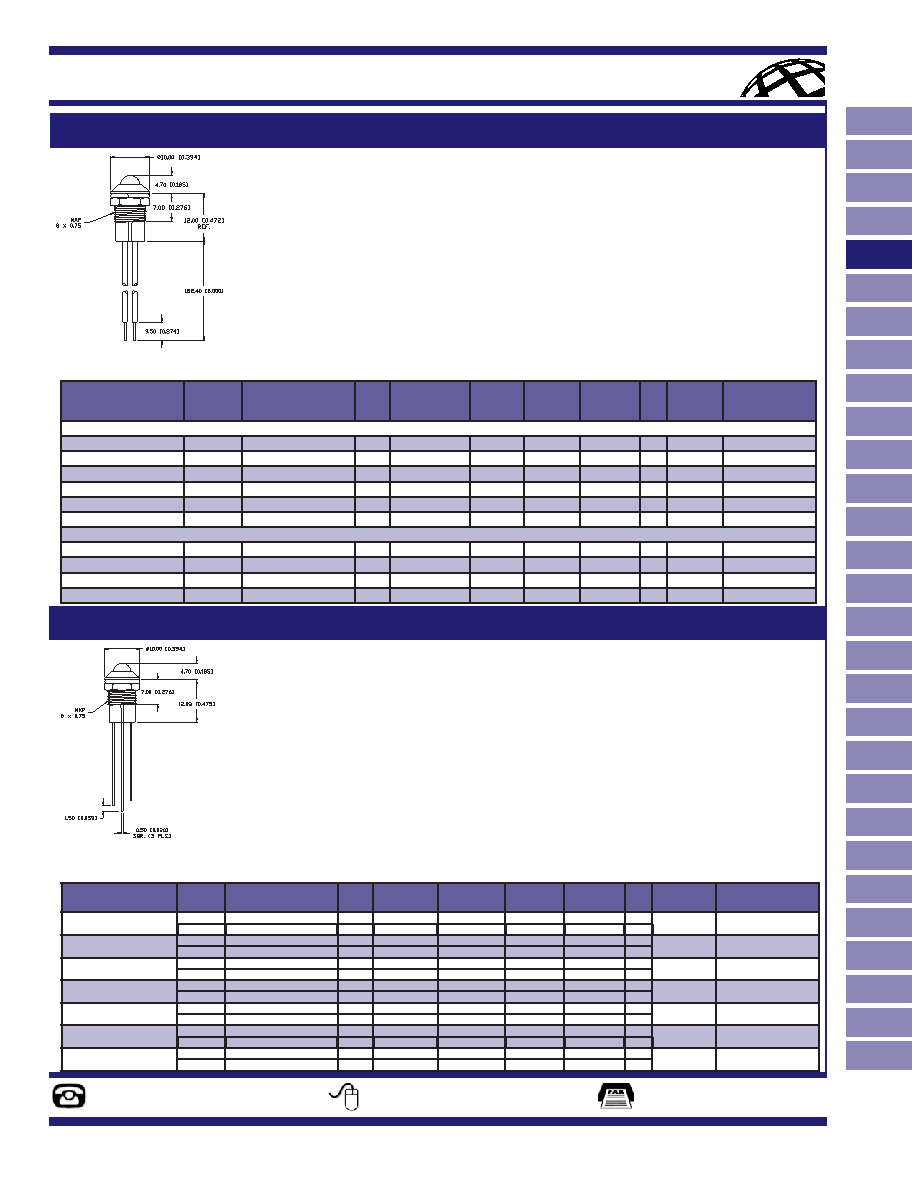

LED Indicators ~ Panel ~ Dome Lens
PANEL CUTOUT: 0.323”
PANEL THICKNESS: 3.50mm MAX
TERMINATION: 6” 24 AWG Leads
PANEL CUTOUT: 0.323”
PANEL THICKNESS: 3.50mm MAX
SSI-LXR3816XD-150 Series
T-5mm Chrome Indicator, Protruded LED, 6” Leads
SSI-LXR3816XW-3 Series
T-5mm Chrome Indicator, 3-Leaded Protruded LED
Lumex Part Number
Die
Material
Emitted Color
Peak
(nm)
Lens
Operating
Current
(mA)
Operating
TYP. Vf
(V)
Brightness
TYP. Mcd
@
mA
View
Angle° 2θ
Component
LED Used
HIGH BRIGHTNESS
SSI-LXR3816SID-150
AlInGaP
Super High Intensity Red
636
Red Diffused
5-25
2
700
20
60
SSL-LX5093SID
SSI-LXR3816SOD-150
AlInGaP
Super Orange
610
Orange Diffused
5-25
2
850
20
60
SSL-LX5093SOD
SSI-LXR3816SUGD150
AlInGaP
Super Ultra Green
574
Green Diffused
5-25
2.2
170
20
60
SSL-LX5093SUGD
SSI-LXR3816SYD-150
AlInGaP
Super Yellow
590
Yellow Diffused
5-25
2
300
20
60
SSL-LX5093SYD
SSI-LXR3816USBD150
InGaN/SiC
Ultra Super Blue
470
Blue Diffused
5-25
3.5
300
20
60
SSL-LX5093USBD
SSI-LXR3816UWW-150
InGaN/SiC
Ultra White
-
White Diffused
5-25
3.5
650
20
30
SSL-LX5093UWW
STANDARD BRIGHTNESS
SSI-LXR3816GD-150
GaP
Green
565
Green diffused
5-25
2.2
30
20
60
SSL-LX5093GD
SSI-LXR3816ID-150
GaAsP
High Intensity Red
635
Red Diffused
5-25
2.0
30
20
60
SSL-LX5093ID
SSI-LXR3816SRD-150
GaAlAs
Super Red
660
Red Diffused
5-25
1.7
250
20
60
SSL-LX5093SRD/D
SSI-LXR3816YD-150
GaAsP
Yellow
585
Yellow Diffused
5-25
2.1
30
20
60
SSL-LX5093YD
Lumex Part Number
Die
Material
Emitted Color
Peak
(nm)
Lens
Operating
Current (mA)
Operating
TYP. Vf (V)
Brightness
TYP. Mcd
@
mA
View Angle°
2θ
Component
LED Used
SSI-LXR3816IGW-3
GaAsP
High Intensity Red
635
Milky White
5-25
2.0
45
20
60
SSL-LX5099IGW
GaP
Green
565
Diffused
5-25
2.2
55
20
SSI-LXR3816IYW-3
GaAsP
High Intensity Red
635
Milky White
5-25
2.0
55
20
60
SSL-LX5099IYW
GaAsP
Yellow
585
Diffused
5-25
2.1
40
20
SSI-LXR3816SISUGW3
AlInGaP
Super High Intensity Red
636
Milky White
5-25
2
700
20
60
SSL-LX5099SISUGW
AlInGaP
Super Ultra Green
574
Diffused
5-25
2.2
200
20
SSI-LXR3816SISYW-3
AlInGaP
Super High Intensity Red
636
Milky White
5-25
2
800
20
60
SSL-LX5099SISYW
AlInGaP
Super Yellow
590
Diffused
5-25
2
400
20
SSI-LXR3816SRSGW-3
GaAlAs
Super Red
660
Milky White
5-25
1.7
200
20
60
SSL-LX5099SRSGW
GaP
Super Green
565
Diffused
5-25
2.2
60
20
SSI-LXR3816SYSUGW3
AlInGaP
Super Yellow
590
Milky White
5-25
2.0
400
20
60
SSL-LX5099SYSUGW
AlInGaP
Super Ultra Green
574
Diffused
5-25
2.2
200
20
SSI-LXR3816YGW-3
GaAsP
Yellow
585
Milky White
5-25
2.1
40
20
60
SSL-LX5099YGW
GaP
Green
565
Diffused
5-25
2.2
45
20
FEATURES / OPTIONS
State-of-the-Art, High Brightness LED Chip Technology
Choice of LED Colors and Lens Finishes
Bi-Color Styles Optional
Insulated Lead Lengths Optional
Easy Two-Step Installation, Rear and Front of Panel
Small Volumes Acceptable
Available Without Insulated Leads (Bare LED Pins)
Black Anodized Holder Optional
Blinking LED
With Internal Resistor for 5V and 12V Operation
With Connector
APPLICATIONS / USES
Front Panel Status Indicators
Alarm/Warning Indicators
Front Panel Circuit Fault Indicators
Instrument Control Panels
Medical Diagnostics Indicators
Industrial Automation Control Panels
APPLICATIONS / USES
Front Panel Status Indicators
Alarm/Warning Indicators
Front Panel Circuit Fault Indicators
Instrument Control Panels
Medical Diagnostics Indicators
Industrial Automation Control Panels
FEATURES / OPTIONS
State-of-the-Art, High Brightness LED Chip Technology
Choice of LED Colors and Lens Finishes
Bi-Color Styles Optional
Insulated Lead Lengths Optional
Easy Two-Step Installation, Rear and Front of Panel
Small Volumes Acceptable
Wire Leads Termination
Black Anodized Holder Optional
Blinking LED
With Internal Resistor for 5V and 12V Operation
With Connector
Common Anode Version
