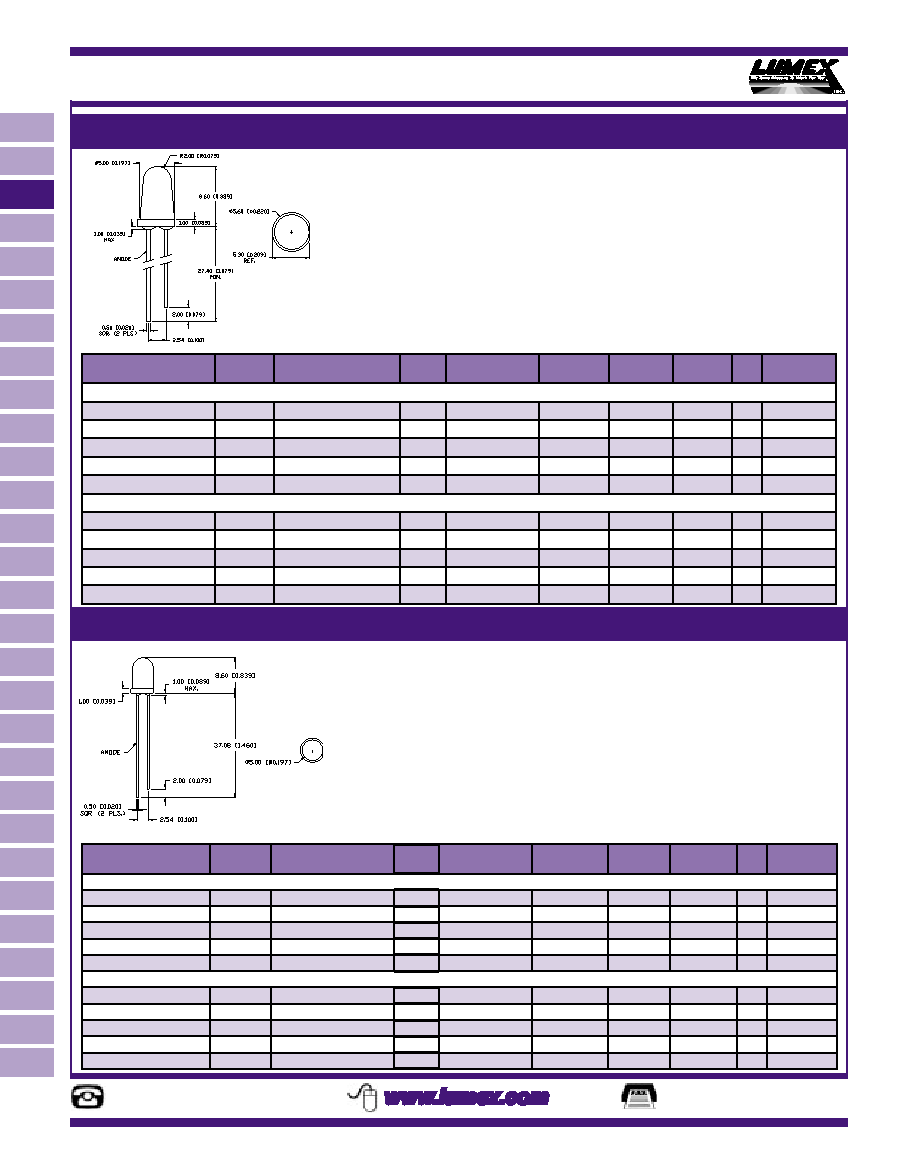

50
Discrete LEDs ~ Dome Lens
SSL-LX50493 Series
T-5mm Tapered
SSL-LX5098 Series
T-5mm Dome, Extra Long Leads
FEATURES / OPTIONS
State-of-the-Art, High Brightness Chip Technology
Choice of Colors and Lens Finishes
Lead Frame / Lens Casting Reliability
Easy-to-Solder Leads, Tin Finish
Available Bulk or on Tape and Reel
Lead Trimming and FormingAvailable
Custom Shapes, Easily Tooled, Low Minimum
Blinking LED
With Internal Resistor for 5V and 12V Operation
APPLICATIONS / USES
Board or Panel Indication or Illumination
Backlighting of Overlays and Graphics
Annunciator and Control Panels
Keyboards and Switches
Telecom Switches and Central Station Equipment
Signs, Warning Lights, Displays
FEATURES / OPTIONS
State-of-the-Art, High Brightness Chip Technology
Choice of Colors and Lens Finishes
Lead Frame / Lens Casting Reliability
Easy-to-Solder Leads, Tin Finish
Available Bulk or on Tape and Reel
Lead Trimming and FormingAvailable
Custom Shapes, Easily Tooled, Low Minimum
Blinking LED
With Internal Resistor for 5V and 12V Operation
APPLICATIONS / USES
Board or Panel Indication or Illumination
Backlighting of Overlays and Graphics
Annunciator and Control Panels
Keyboards and Switches
Telecom Switches and Central Station Equipment
Signs, Warning Lights, Displays
Lumex Part Number
Die
Material
Emitted Color
Peak
(nm)
Lens
Operating
Current (mA)
Operating
TYP. Vf (V)
Brightness
TYP. Mcd
@
mA
View Angle°
2θ
HIGH BRIGHTNESS
SSL-LX50493SID
AlInGaP
Super High Intensity Red
636
Red Diffused
5-25
2
700
20
60
SSL-LX50493SOD
AlInGaP
Super Orange
610
Orange Diffused
5-25
2
800
20
60
SSL-LX50493SUGD
AlInGaP
Super Ultra Green
574
Green Diffused
5-25
2.2
170
20
60
SSL-LX50493SYD
AlInGaP
Super Yellow
590
Yellow Diffused
5-25
2
400
20
60
SSL-LX50493USBD
InGaN/SiC
Ultra Super Blue
470
Blue Diffused
5-25
3.5
300
20
60
STANDARD BRIGHTNESS
SSL-LX50493GD
GaP
Green
565
Green Diffused
5-25
2.2
18
20
60
SSL-LX50493HD
GaP
High Efciency Red
700
Red Diffused
5-25
2.1
8
20
60
SSL-LX50493ID
GaAsP
High Intensity Red
635
Red Diffused
5-25
2.0
30
20
60
SSL-LX50493SRD
GaAlAs
Super Red
660
Red Diffused
5-25
1.7
100
20
60
SSL-LX50493YD
GaAsP
Yellow
585
Yellow Diffused
5-25
2.1
18
20
60
Lumex Part Number
Die
Material
Emitted Color
Peak
(nm)
Lens
Operating
Current (mA)
Operating
TYP. Vf (V)
Brightness
TYP. Mcd
@
mA
View Angle°
2θ
HIGH BRIGHTNESS
SSL-LX5098SID
AlInGaP
Super High Intensity Red
636
Red Diffused
5-25
2
700
20
60
SSL-LX5098SOD
AlInGaP
Super Orange
610
Orange Diffused
5-25
2
800
20
60
SSL-LX5098SUGD
AlInGaP
Super Ultra Green
574
Green Diffused
5-25
2.2
170
20
60
SSL-LX5098SYD
AlInGaP
Super Yellow
590
Yellow Diffused
5-25
2
400
20
60
SSL-LX5098USBD
InGaN/SiC
Ultra Super Blue
470
Blue Diffused
5-25
3.5
300
20
60
STANDARD BRIGHTNESS
SSL-LX5098GD
GaP
Green
565
Green Diffused
5-25
2.2
30
20
60
SSL-LX5098HD
GaP
High Efciency Red
700
Red Diffused
5-25
2.1
6
20
60
SSL-LX5098ID
GaAsP
High Intensity Red
635
Red Diffused
5-25
2
30
20
60
SSL-LX5098SRD/D
GaAlAs
Super Red
660
Red Diffused
5-25
1.7
250
20
60
SSL-LX5098YD
GaAsP
Yellow
585
Yellow Diffused
5-25
2.1
30
20
60
1
29
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
