STK4161
V
SANYO Electric Co., Ltd. Semiconductor Business Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
70997HA (ID) / 8308TA No. 2135—1/8
Ordering number: EN2135B
Thick Film Hybrid IC
AF Power Amplifier (Split Power Supply)
(35W + 35W min, THD = 0.08%)
Features
Pin-compatible with the STK4102II series. The
STK4101V series use the same package and are avail-
able for output 15W to 50W.
Built-in muting circuit to cut off various kinds of pop
noise
Greatly reduced heat sink due to substrate temperature
125
°
C guaranteed
Distortion 0.08% due to current mirror circuit
Excellent cost performance

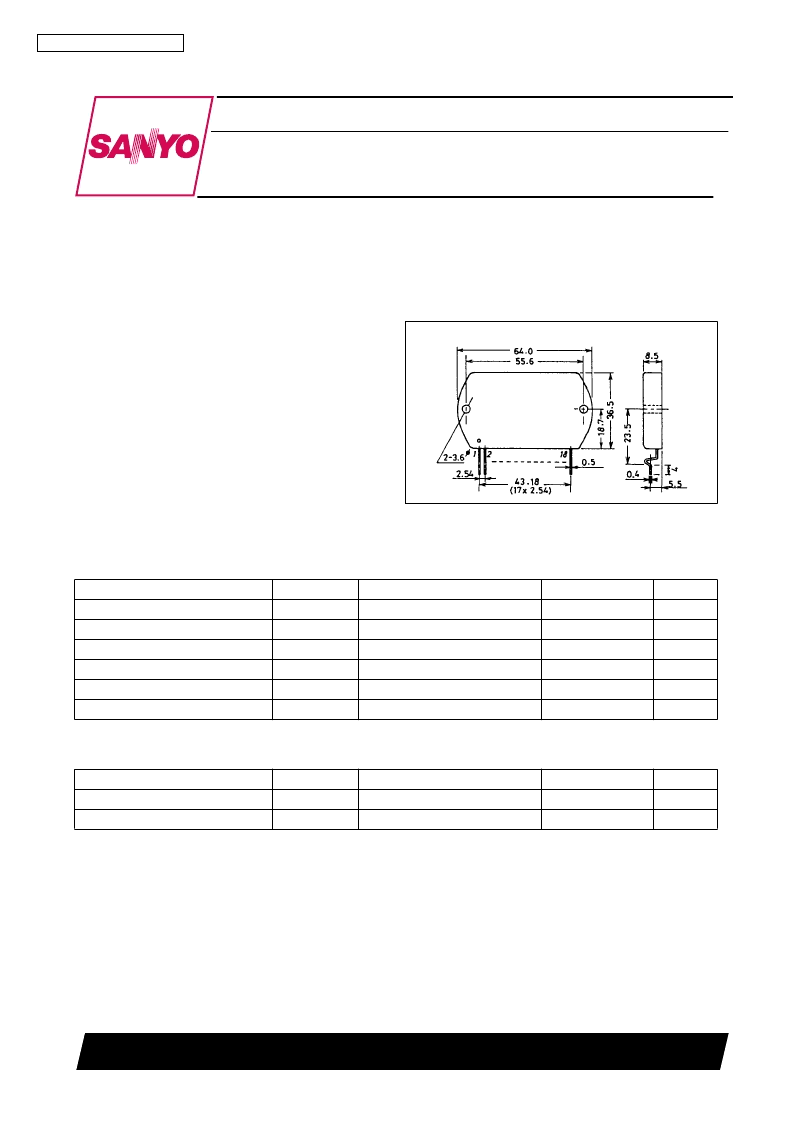

Package Dimensions
unit: mm
4040
[STK4161
V
]
Specifications
Maximum Ratings
at Ta = 25
°
C
Recommended Operating Conditions
at Ta = 25
°
C
Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
V
CC
θ
max
±
46
V
Thermal resistance
j-c
2.1
°
C/W
Junction Temperature
Tj
150
°
C
Operating substrate temperature
Tc
125
°
C
Storage temperature
Tstg
30 to +125
°
C
Available time for load short-circuit
t
s
*1
V
CC
=
±
30.5V, R
L
= 8
, f = 50Hz, Po = 35W
2
s
Parameter
Symbol
Conditions
Ratings
Unit
Recommended supply voltage
V
CC
±
30.5
V
Load resistance
R
L
8
