TC1219/1220-3 8/20/99
TelCom Semiconductor reserves the right to make changes in the circuitry and specifications of its devices.
TC1219
TC1220
SWITCHED CAPACITOR VOLTAGE CONVERTERS WITH SHUTDOWN
IN SOT PACKAGES
FEATURES
s
Charge Pumps in 6-Pin SOT-23A Package
s
>95% Voltage Conversion Efficiency
s
Voltage Inversion and/or Doubling
s
Operates from +2.5V to +5.5V
s
Up to 25 mA Output Current
s
Only Two External Capacitors Required
s
Low Power Consumption
s
Power-Saving Shutdown Mode
s
TC1220 Compatible with 1.8V Logic Systems
APPLICATIONS
s
LCD Panel Bias
s
Cellular Phones
s
Pagers
s
PDAs, Portable Dataloggers
s
Battery-Powered Devices
GENERAL DESCRIPTION
The TC1219/1220 are CMOS “charge-pump” voltage
converters in ultra-small 6-Pin SOT-23A packages. They
invert and/or double an input voltage which can range from
+2.5V to +5.5V. Conversion efficiency is typically >95%.
Switching frequency is 12 KHz for the TC1219, 35 KHz for
the TC1220. When the shutdown pin is held at a logic low,
the device goes into a very low power mode of operation,
consuming less than 1
A of supply current.
External component requirement is only two capacitors
for standard voltage inverter applications.
With a few
additional components a positive doubler can also be built.
All other circuitry, including control, oscillator, power
MOSFETs are integrated on-chip. Typical supply currents
are 60
A (TC1219), 115 A (TC1220).
All devices are available in 6-pin SOT-23A surface
mount packages.

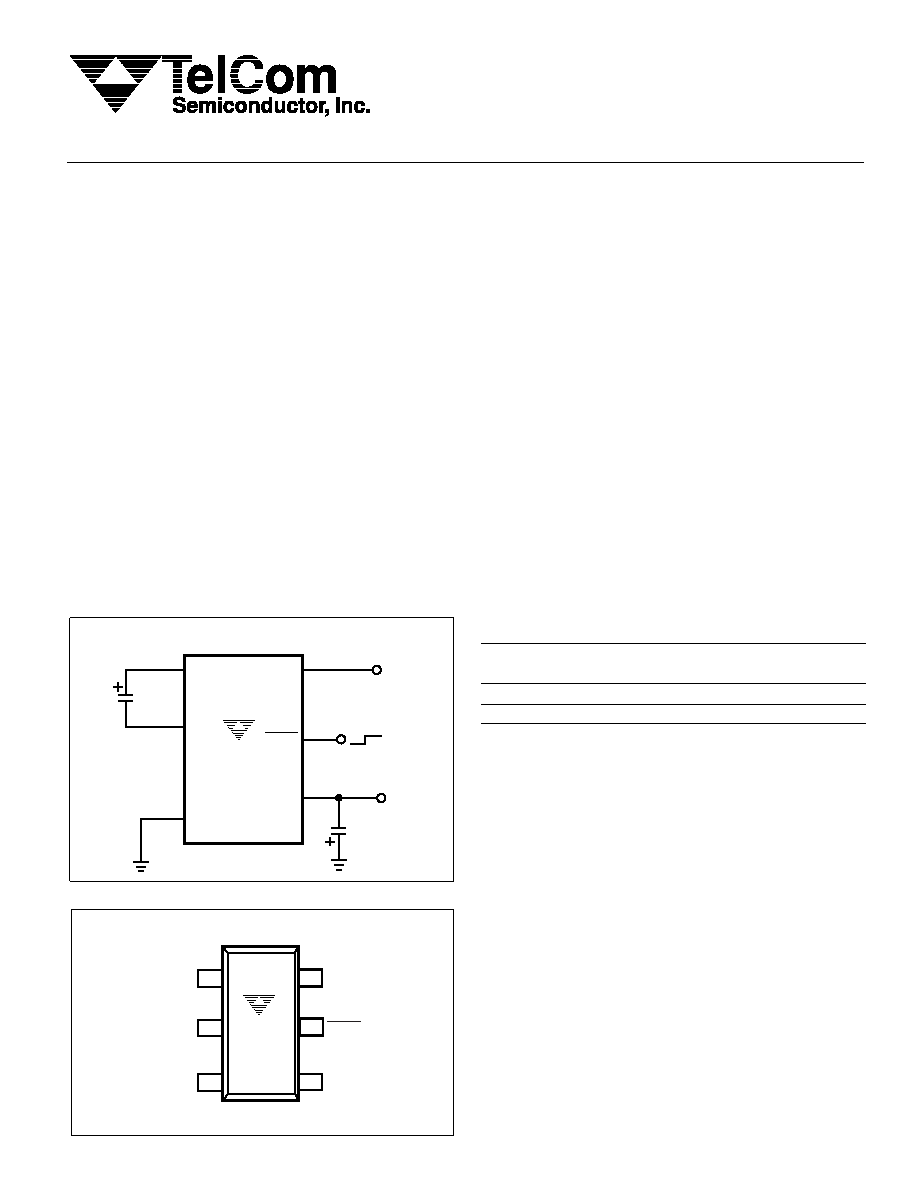

TYPICAL OPERATING CIRCUIT
ORDERING INFORMATION
Osc. Freq.
Part No.
Package
(KHz)
Temp. Range
TC1219ECH
6-Pin SOT-23A* 12
– 40
°C to +85°C
TC1220ECH
6-Pin SOT-23A* 35
– 40
°C to +85°C
PIN CONFIGURATION
6-Pin SOT-23A*
NOTE: *6-Pin SOT-23A is equivalent to EIAJ SC-74
Negative Voltage Inverter
C+
GND
SHDN
C–
OUT
TC1219ECH
TC1220ECH
1
2
3
6
VIN
4
5
TC1219
TC1220
VIN
V–
OUTPUT
C+
C–
C1
C2
INPUT
GND
OUT
SHDN
ON
OFF
NOTE: *6-Pin SOT-23A is equivalent to EIAJ SC-74
