Description
Features
Technical Specifications
Planar magnetics
1500V isolation
45A 3/4-brick
Very-high efficiency
Open-frame packaging
100°C baseplate operation
Synchronous rectification
Low-voltage output

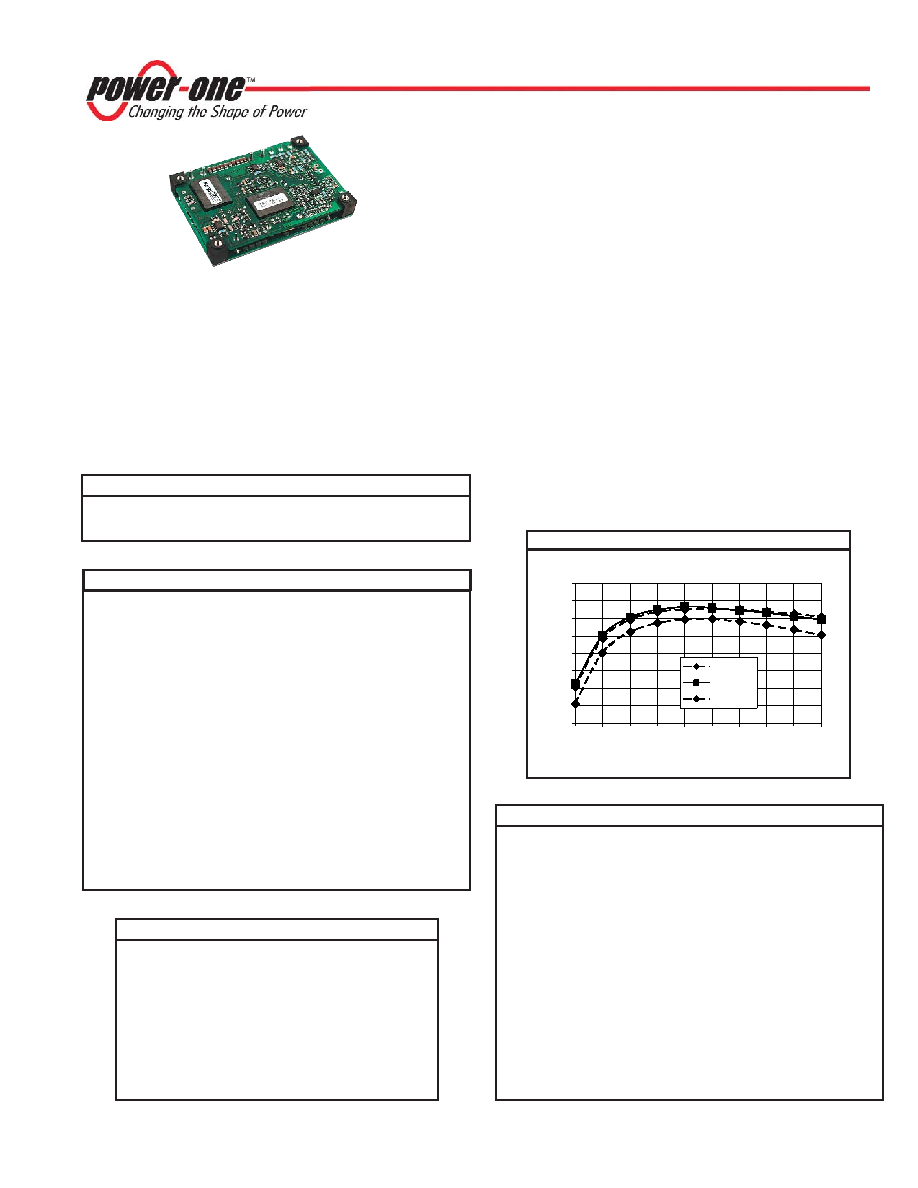

TES DC-DC Series Data Sheet
Single-Output, 150 Watts
Page 1 of 3
REV. NOV 14, 2003
TES single output DC-DC converters provide up to 150 watts of output power at up to 45A of output
current in an industry-standard 3/4-brick package. The TES converters feature open-frame packaging, along with
planar magnetics and a high efficiency topology, to provide maximum useable power density.
The TES
converters use 100% surface-mount construction and are fully-compatible with production board washing
processes.
Voltage Range
48 VDC Nominal
36 - 72 VDC
Input
Output
Setpoint Accuracy
±1%
Line Regulation Vin Min. - Vin Max., Iout Rated
0.2% Vout
Load Regulation Iout Min. - Iout Max., Vin Nom.
0.5% Vout
Remote Sense Headroom
0.5 VDC
Minimum Output Current
10 % Iout Rated
Dynamic Regulation, Loadstep
25% Iout
Pk Deviation
4% Vout
Settling Time
500 s
Voltage Trim Range
±10%
Current Limit Type
Latch
Current Limit Threshold Range, % of Iout Rated
110 - 140%
Short Circuit Threshold Range, % of Iout Rated
200%
OVP Trip Range
115 - 140% Vout Nom.
UVP Trip Range
70 - 90% Vout Nom.
OVP/UVP Type
Latch
Notes
MTBF predictions may vary slightly from model to model.
Specifications typically at 25°C, normal line, and full load, unless
otherwise stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Safety: Agency approvals may vary from model to model. Please
consult factory for specific model information.
TES150ZE-A
55
60
65
70
75
80
85
90
95
10
20
30
40
50
60
70
80
90
100
LOAD %
EFF. (36v)
EFF. (48v)
EFF. (75v)
Efficiency vs. Load (48V Input)
Turn-On Time
10 ms
Remote Shutdown
Positive Logic
Remote Shutdown Reference
Vin Negative
Switching Frequency 5Vout / 3.3V & 2.5Vout
300 kHz / 200 kHz
Isolation
Input - Output
1500 VDC
Input - Case
1050 VDC
Output - Case
500 VDC
Temperature Coefficient
±0.02%/°C
Case Temperature
Operating Range
-40 To +100°C
Storage Range
-40 To +125°C
Thermal Shutdown Range
105 to 115°C
Vibration, 3 Axes, 5 Min Each
5 g, 10 - 55 Hz
MTBF (Bellcore TR-NWT-000332)
1.0 X 106 hrs
Safety
UL, cUL, TUV
Weight (Approx.)
3.3 oz
General
