THS10064
SLAS255B – DECEMBER 1999 – REVISED DECEMBER 2002
www.ti.com
34

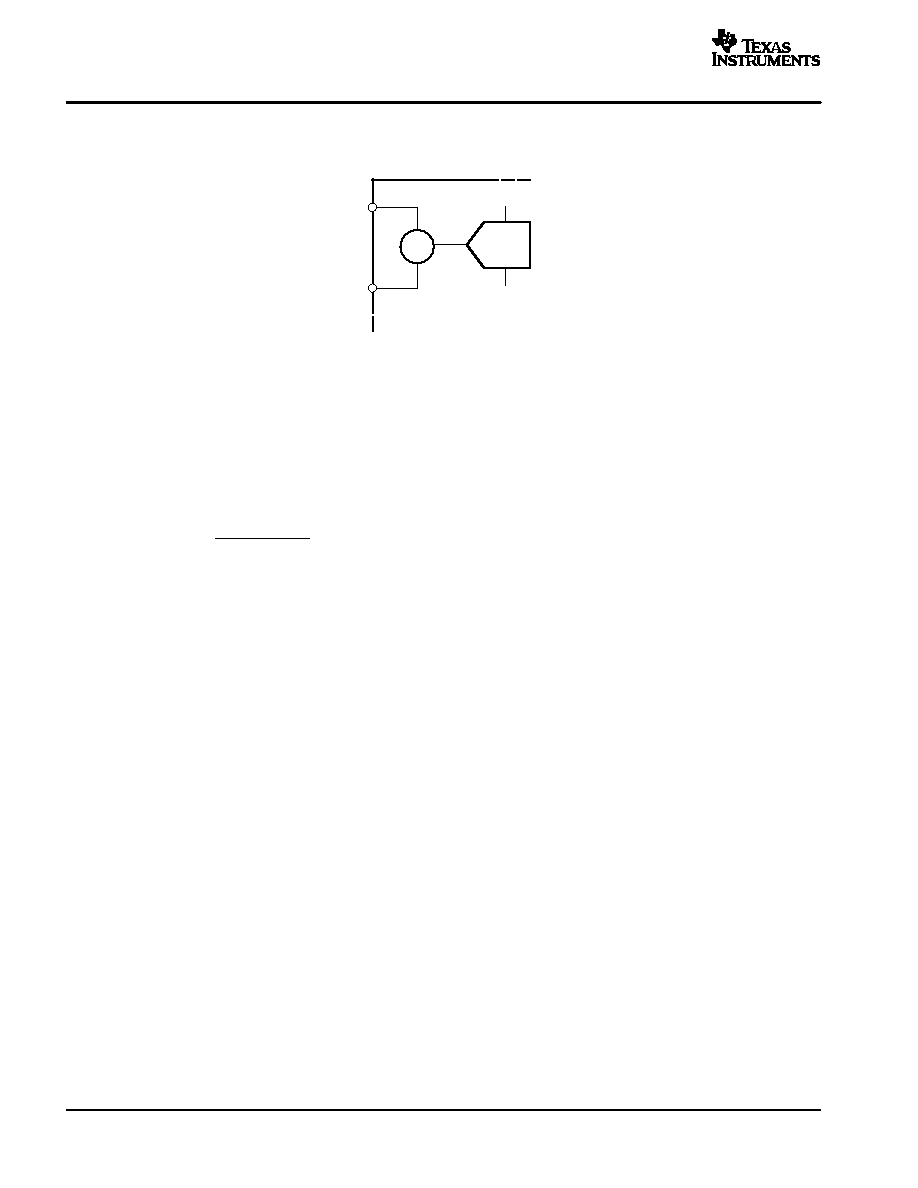

A differential operation is desired for many applications. Figure 43 shows a simplified model for the analog inputs
AINM and AINP, which are configured for differential operation. This configuration has a few advantages, which are
discussed in the following paragraphs.
10-Bit
ADC
VREFP
VREFM
AINP
Σ
VADC
AINM
+
–
Figure 43. Differential Input Stage
In comparison to the single-ended configuration it can be seen that the voltage, VADC, which is applied at the input
of the ADC is the difference between the input AINP and AINM. This means that VREFM defines the minimum voltage
(VADC) which can be applied to the ADC. VREFP defines the maximum voltage (VADC) which can be applied to the
ADC. The voltage VADC can be calculated as follows:
V
ADC +
ABS(AINP–AINM)
An advantage to single-ended operation is that the common-mode voltage
V
CM +
AINM
) AINP
2
can be rejected in the differential configuration, if the following condition for the analog input voltages is true:
AGND
v AINM, AINP v AV
DD
1V
v V
CM v
4V
In addition to the common-mode voltage rejection, the differential operation allows a dc-offset rejection which is
common to both analog inputs. See Figure 45.
SINGLE-ENDED MODE OF OPERATION
The THS10064 can be configured for single-ended operation using dc- or ac-coupling. In either case, the input of
the THS10064 must be driven from an operational amplifier that does not degrade the ADC performance. Because
the THS10064 operates from a 5-V single supply, it is necessary to level-shift ground-based bipolar signals to comply
with its input requirements. This can be achieved with dc- and ac-coupling. An application example is shown for
dc-coupled level shifting in the following section, dc-coupling.
(2)
(3)
(4)
(5)
