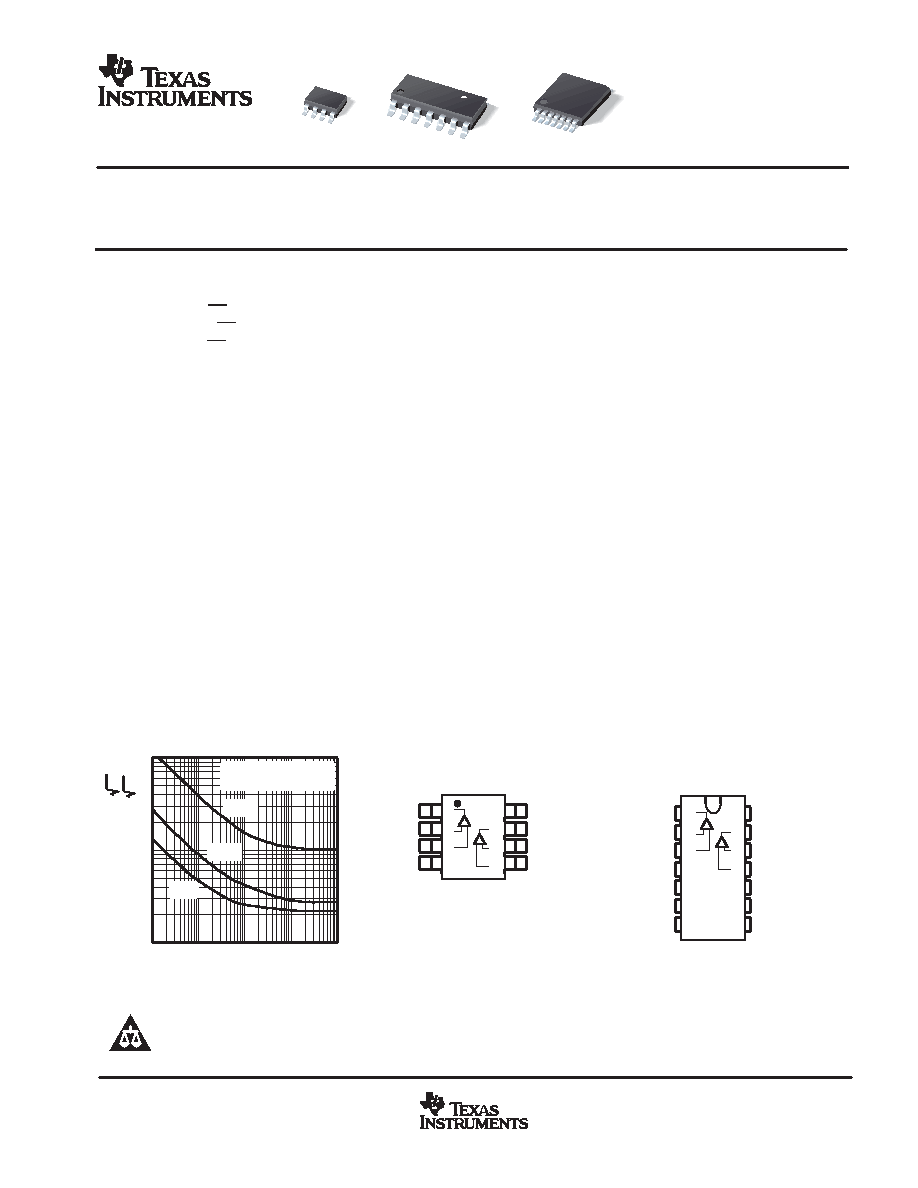

THS3122
THS3125
SLOS382 SEPTEMBER 2001
LOW NOISE, HIGHSPEED, 450 mA
CURRENT FEEDBACK AMPLIFIERS
1
www.ti.com
FEATURES
D Low Noise
2.9 pA/
√Hz Noninverting Current Noise
10.8 pA/
√Hz Inverting Current Noise
2.2 nV/
√Hz Voltage Noise
D High Output Current, 450 mA
D High Speed
128 MHz , 3 dB BW(RL = 50 , RF = 470 )
1550 V/
s Slew Rate (G = 2, RL = 50 )
D Wide Output Swing
26 VPP Output Voltage, RL = 50
D Low Distortion
-80 dBc (1 MHz, 2 VPP, G = 2)
D Low Power Shutdown Mode (THS3125)
370-
A Shutdown Supply Current
D Standard SOIC, SOIC PowerPAD, and
TSSOP PowerPAD Package
APPLICATIONS
D Video Distribution
D Instrumentation
D Line Drivers
D Motor Drivers
D Piezo Drivers
DESCRIPTION
The THS3122/5 are low-noise, high-speed current
feedback amplifiers, with high output current drive. This
makes them ideal for any application that requires low
distortion over a wide frequency with heavy loads. The
THS3122/5 can drive four serially terminated video
lines while maintaining a differential gain error less than
0.03%.
The high output drive capability of the THS3122/5
enables the devices to drive 50-
loads with low
distortion over a wide range of output voltages:
80 dBc THD at 2 VPP
75 dBc THD at 8 VPP
The THS3122/5 can operate from
±5 V to ±15 V supply
voltages while drawing as little as 7.2 mA of supply
current per channel. They offer a low power shutdown
mode, reducing the supply current to only 370
A. The
THS3122/5 are packaged in a standard SOIC, SOIC
PowerPAD
, and TSSOP PowerPAD packages.
1
10
100
0.01
0.1
1
10
100
f Frequency kHz
Current
Noise
VOLTAGE NOISE AND CURRENT NOISE
vs
FREQUENCY
V
n
I
n
V
o
ltage
Noise
pA/
Hz
nV/
Hz
In
In+
Vn
VCC = ±5 V to ±15 V
TA = 25°C
THS3122
SOIC (D) AND
SOIC PowerPAD
(DDA) PACKAGE
(TOP VIEW)
1
2
3
4
8
7
6
5
1 OUT
1 IN
1 IN+
VCC
VCC+
2 OUT
2 IN
2 IN+
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1 OUT
1 IN
1 IN+
VCC
N/C
GND
N/C
VCC+
2 OUT
2 IN
2 IN+
N/C
SHUTDOWN
N/C
THS3125
SOIC (D) AND
TSSOP PowerPAD
(PWP) PACKAGE
(TOP VIEW)
PowerPAD is a trademark of Texas Instruments.
Copyright
2001, Texas Instruments Incorporated
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
