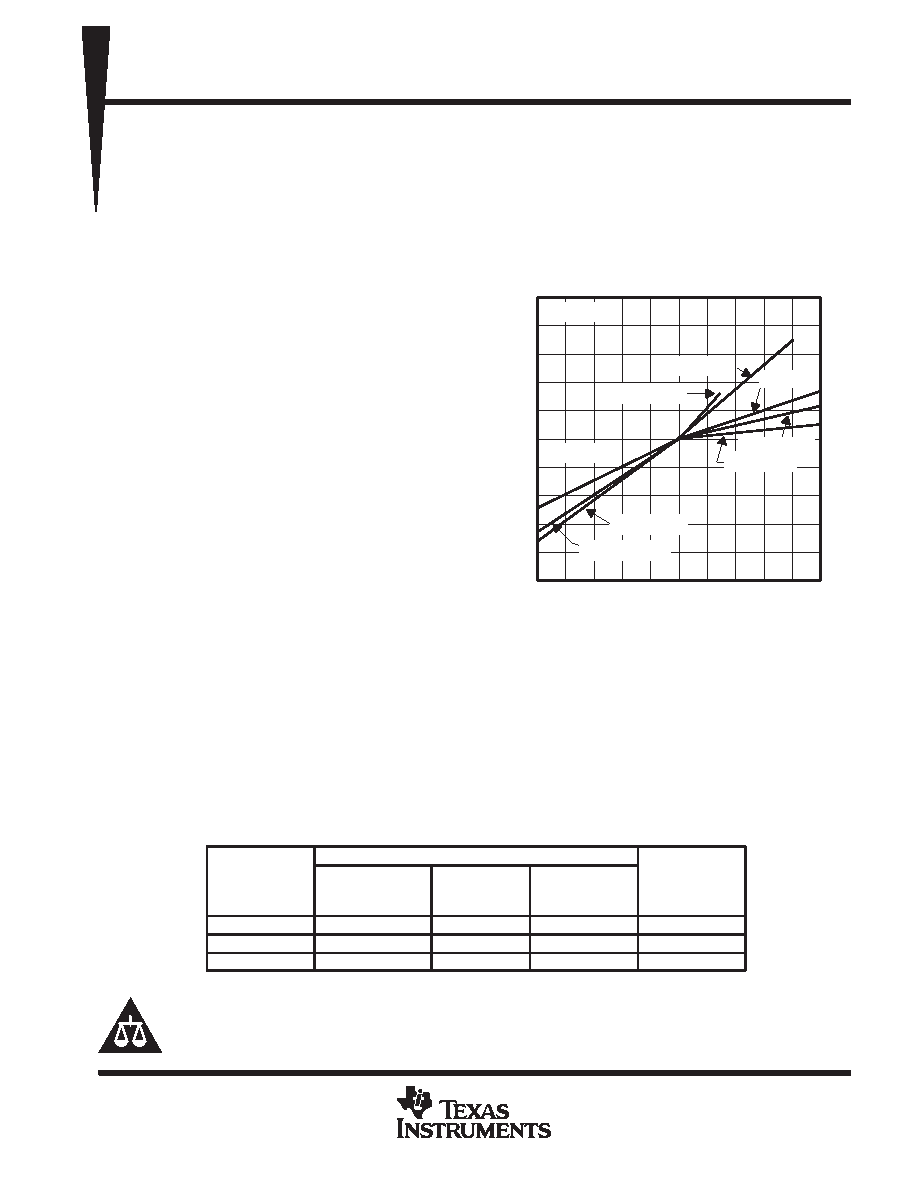

TLE2425, TLE2425Y
PRECISION VIRTUAL GROUND
SLOS065C – MARCH 1991 – REVISED MAY 1998
1
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
D 2.5-V Virtual Ground for 5-V/GND Analog
Systems
D Self-Contained in Small-Outline,
Dual-In-Line or 3-Terminal TO-226AA
Packages
D High Output-Current Capability
Sink or Source . . . 20 mA Typ
D Micropower Operation . . . 170 A Typ
D Excellent Regulation Characteristics
– Output Regulation
– 45
V Typ at IO = 0 to –10 mA
+15
V Typ at IO = 0 to +10 mA
– Input Regulation = 1.5
V/V Typ
D Low-Impedance Output . . . 0.0075 Typ
D Macromodel Included
description
In signal-conditioning applications using a single
power source, a reference voltage is required for
termination of all signal grounds. To accomplish
this, engineers have typically used solutions
consisting of resistors, capacitors, operational
amplifiers, and voltage references. Texas Instru-
ments has eliminated all of those components
with one easy-to-use 3-terminal device. That
device is the TLE2425 precision virtual ground.
Use of the TLE2425 over other typical circuit
solutions gives the designer increased dynamic
signal range, improved signal-to-noise ratio,
lower distortion, improved signal accuracy, and
easier interfacing to ADCs and DACs. These
benefits are the result of combining a precision
micropower voltage reference and a high-perfor-
mance precision operational amplifier in a single
silicon chip. It is the precision and performance of these two circuit functions together that yield such dramatic
system-level performance.
The TLE2425 improves input regulation as well as output regulation and, in addition, reduces output impedance
and power dissipation in a majority of virtual-ground-generation circuits. Both input regulation and load
regulation exceed 12 bits of accuracy on a single 5-V system. Signal-conditioning front ends of data acquisition
systems that push 12 bits and beyond can use the TLE2425 to eliminate a major source of system error.
The TLE2425C is characterized for operation from 0
°C to 70°C. The TLE2425I is characterized for operation
from – 40
°C to 85°C. The TLE2425M is characterized for operation over the full military temperature range of
–55
°C to 125°C.
AVAILABLE OPTIONS
PACKAGED DEVICES
TA
SMALL OUTLINE
(D)
CERAMIC DIP
(JG)
PLASTIC
TO-226AA
(LP)
CHIP FORM
(Y)
0
°C to 70°C
TLE2425CD
—
TLE2425CD
TLE2425Y
–40
°C to 85°C
TLE2425ID
—
TLE2425ID
—
–55
°C to 125°C
TLE2425MD
—
The D and LP packages are available taped and reeled in the commercial temperature range only. Add
R suffix to the device type (e.g., TLE2425CDR). The chip form is tested at 25
°C.
Copyright
1998, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
V)
–
Output
V
oltage
Change
–
V
80
–20
0
20
60
40
–40
–60
–80
– 100
10
8
–2
0
2
6
4
–4
–6
–8
–10
100
OUTPUT REGULATION
IO – Output Current – mA
VI = 5 V
TA = – 55°C
TA = 25°C
TA = 125°C
V
O
TA = – 40°C
TA = 125°C
TA = – 55°C
TA = 0°C
TA = 25°C
