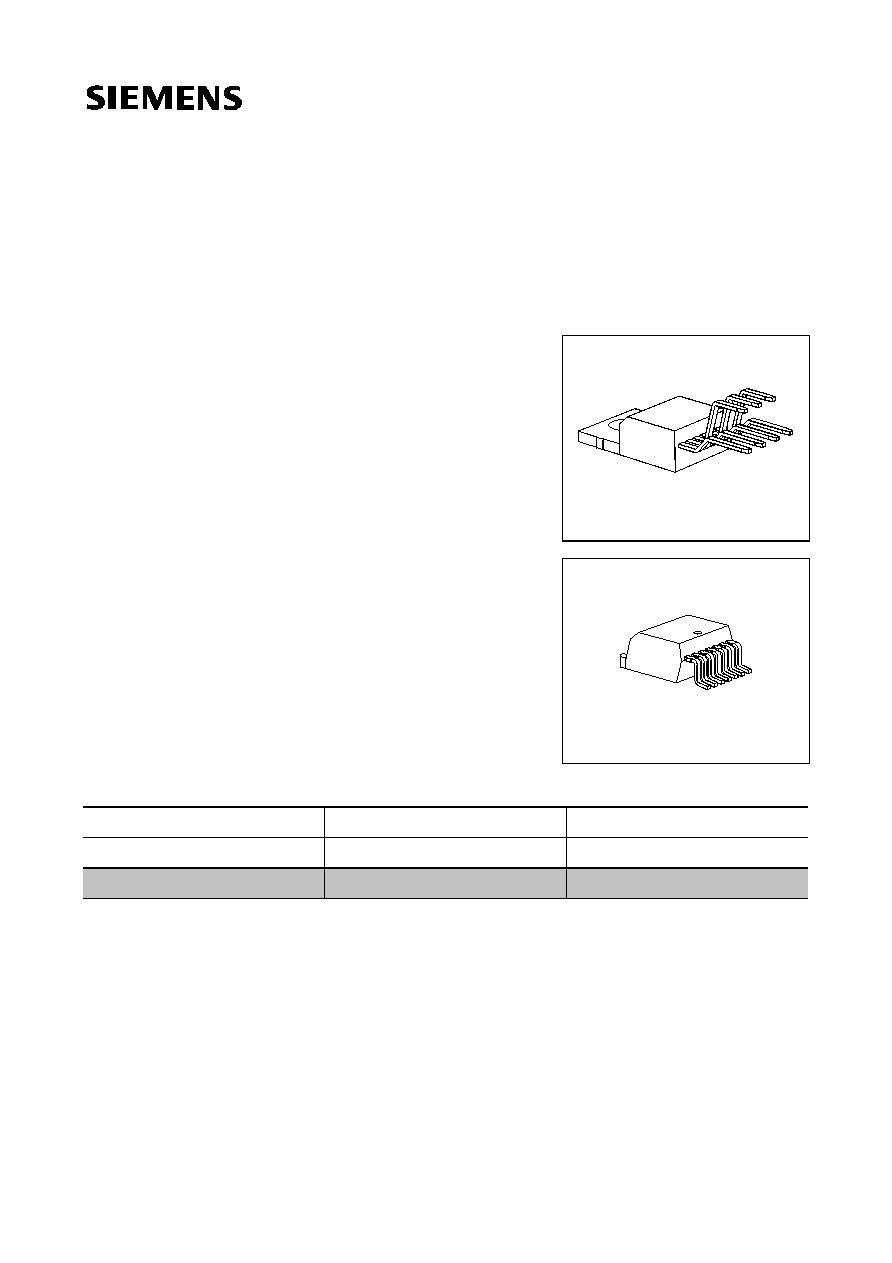

P-TO220-7-1
P-TO220-7-8
5-A DC Motor Driver with Inhibit
Overview
TLE 5207
Semiconductor Group
1
1998-02-01
Description
TLE 5207 is an integrated power bridge with inhibit feature and DMOS output stages for
driving DC motors.
This motor bridge is optimized for driving DC motors in reversible operation. The internal
protective circuitry in particular ensures that no crossover currents can occur.
Because the free-wheeling diodes are integrated, the external circuitry that is necessary
is restricted to the capacitors on the supply voltage.
The two control inputs have TTL/CMOS-compatible levels.
Type
Ordering Code
Package
TLE 5207
Q67000-A9295
P-TO220-7-1
TLE 5207G
Q67006-A9296
P-TO220-7-8
Features
Output current
± 4 A (peak 5 A)
Inhibit with very low quiescent current (typ. 20
A)
I/O error diagnostics
Short-circuit proof
Four-quadrant operation
Integrated free-wheeling diodes
Wide temperature range
