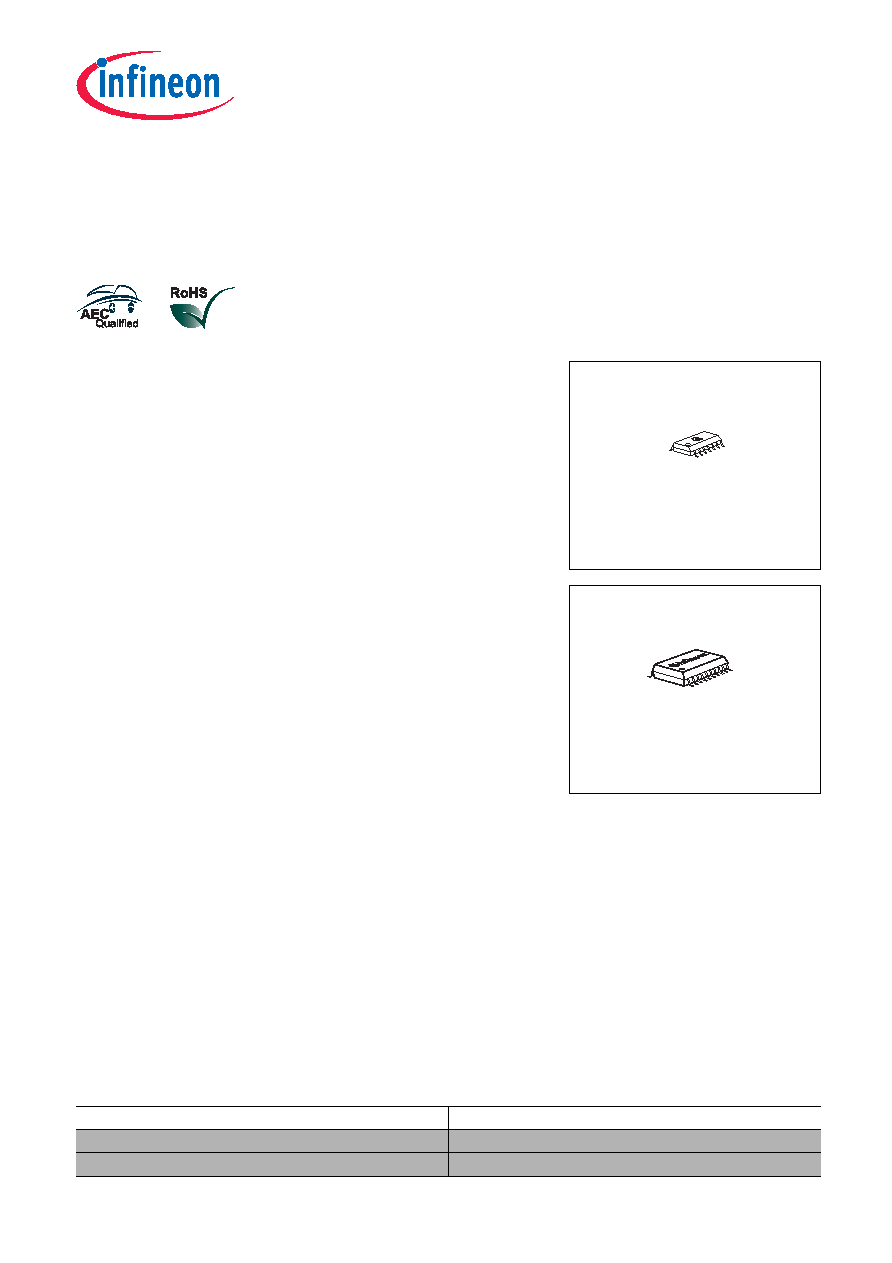

Type
Package
TLE 6711 G
PG-DSO-14-1
TLE 6711 GL
PG-DSO-20-36
P/PG-DSO-14-3, -8, -9, -11, 14
P/PG-DSO-20 -1, -6, -7, -9, -14, -15, -17, -18
Data Sheet
2
Rev. 3.4, 2007-08-16
Multifunctional Voltage Regulator and Watchdog
TLE 6711 G
TLE 6711 GL
Features
Step up converter (Boost Voltage)
Boost Over- and Under-Voltage-Lockout
Step down converter (Logic Voltage)
2% output voltage tolerance
Logic Over- and Under-Voltage-Lockout
Overtemperature Shutdown
Power ON/OFF reset generator
Digital window watchdog
System Enable Output
Ambient operation temperature range
-40
°C to 125 °C
Wide Supply voltage operation range
Very low current consumption
Very small PG-DSO-14-1 SMD package
Green Product (RoHS Compliant)
AEC Qualified
Description
The TLE 6711 G/GL is a multifunctional power supply circuit especially
designed for automotive applications.
It delivers a programmable step up voltage (Boost) and a precise 5 V
fully short circuit protected output voltage (Buck).
The TLE 6711 G/GL contains a power on reset feature to start up
the system, an integrated digital window watchdog to monitor the
connected microcontroller and a system enable output to indicate the microcontroller window watchdog faults.
The device is based on Infineon’s power technology SPT which allows bipolar and CMOS control circuitry to be
integrated with DMOS power devices on the same monolithic circuitry.
The very small PG-DSO-14-1 SMD packages meet the application requirements.
Furthermore, the build-in features like under- and overvoltage lockout for boost- and buck-voltage and the
overtemperature shutdown feature increase the reliability of the TLE 6711 G/GL supply system.
