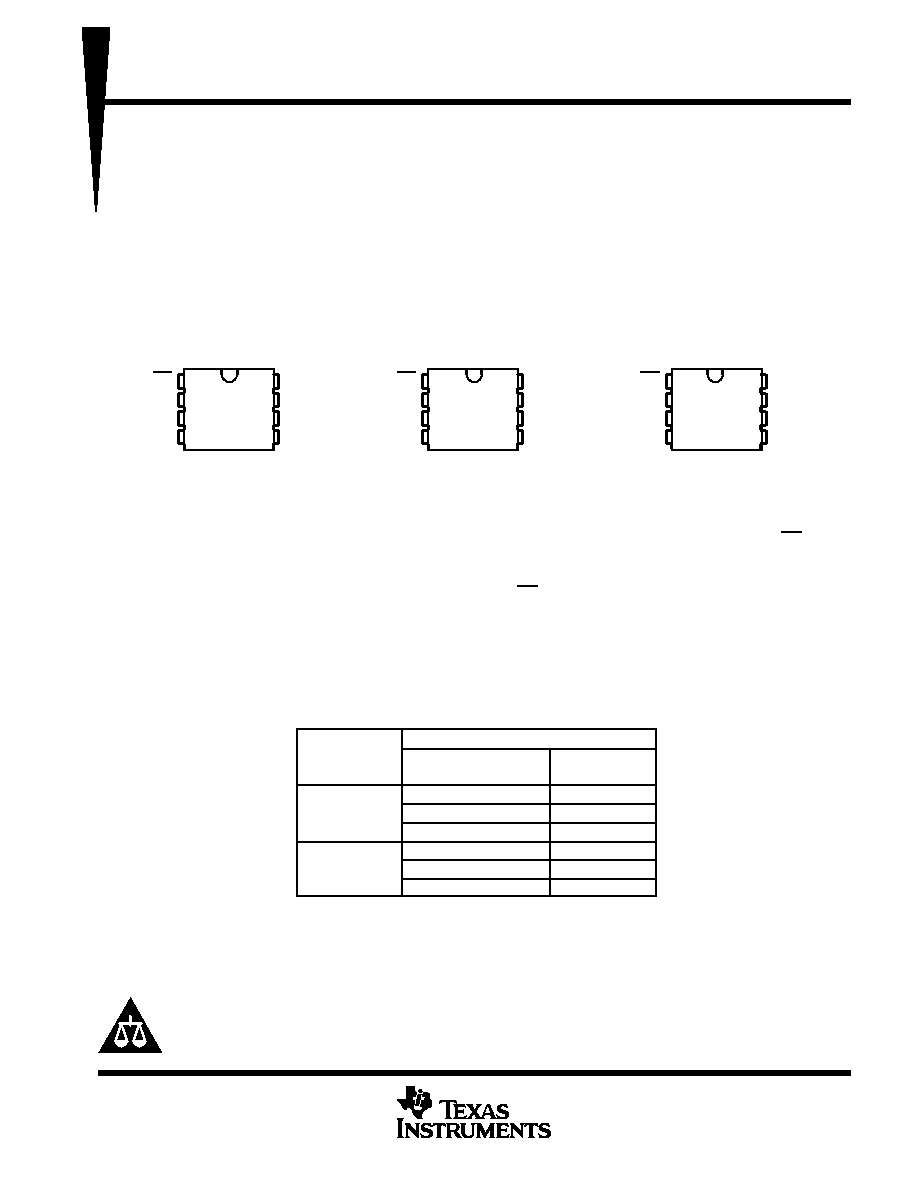

TLV2541, TLV2542, TLV2545
2.7-V TO 5.5-V, LOW-POWER, 12-BIT, 140/200 KSPS,
SERIAL ANALOG-TO-DIGITAL CONVERTERS WITH AUTOPOWER DOWN
SLAS245D –MARCH 2000 – REVISED MAY 2003
1
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
D Maximum Throughput . . . 140/200 KSPS
D Built-In Conversion Clock
D INL/DNL: ±1 LSB Max, SINAD: 72 dB,
SFDR: 85 dB, fi = 20 kHz
D SPI/DSP-Compatible Serial Interface
D Single Supply: 2.7 Vdc to 5.5 Vdc
D Rail-to-Rail Analog Input With 500 kHz BW
D Three Options Available:
– TLV2541: Single Channel Input
– TLV2542: Dual Channels With
Autosweep
– TLV2545: Single Channel With
Pseudo-Differential Input
D Low Power With Autopower Down
– Operating Current: 1 mA at 2.7 V, 1.5 mA
at 5 V
Autopower Down: 2
A at 2.7 V, 5 A
at 5 V
D Small 8-Pin MSOP and SOIC Packages
TOP VIEW
TLV2541
1
2
3
4
8
7
6
5
CS
VREF
GND
AIN
SDO
FS
VDD
SCLK
1
2
3
4
8
7
6
5
CS
VREF
GND
AIN0
SDO
SCLK
VDD
AIN1
1
2
3
4
8
7
6
5
CS
VREF
GND
AIN(+)
SDO
SCLK
VDD
AIN(–)
TOP VIEW
TLV2542
TOP VIEW
TLV2545
description
The TLV2541, TLV2542, and TLV2545 are a family of high performance, 12-bit, low power, miniature, CMOS
analog-to-digital converters (ADC). The TLV254x family operates from a single 2.7-V to 5.5-V supply. Devices
are available with single, dual, or single pseudo-differential inputs. Each device has a chip select (CS), serial
clock (SCLK), and serial data output (SDO) that provides a direct 3-wire interface to the serial port of most
popular host microprocessors (SPI interface). When interfaced with a TMS320
t DSP, a frame sync signal (FS)
can be used to indicate the start of a serial data frame on CS for all devices or FS for the TLV2541.
TLV2541, TLV2542, and TLV2545 are designed to operate with very low power consumption. The power saving
feature is further enhanced with an autopower-down mode. This product family features a high-speed serial link
to modern host processors with SCLK up to 20 MHz. The maximum SCLK frequency is dependent upon the
mode of operation (see Table 1). The TLV254x family uses the built-in oscillator as the conversion clock,
providing a 3.5-
s conversion time.
AVAILABLE OPTIONS
PACKAGED DEVICES
TA
8-MSOP
(DGK)
8-SOIC
(D)
TLV2541CDGK (AGZ)
0
°C to 70°C
TLV2542CDGK (AHB)
0 C to 70 C
TLV2545CDGK (AHD)
TLV2541IDGK (AHA)
TLV2541ID
–40
°C to 85°C
TLV2542IDGK (AHC)
TLV2542ID
40 C to 85 C
TLV2545IDGK (AHE)
TLV2545ID
Copyright
2000 – 2003, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
TMS320 is a trademark of Texas Instruments.
