TLV5621I
LOW-POWER QUADRUPLE 8-BIT DIGITAL-TO-ANALOG CONVERTER
SLAS138B – APRIL 1996 – REVISED FEBRUARY 1997
13
POST OFFICE BOX 655303
DALLAS, TEXAS 75265

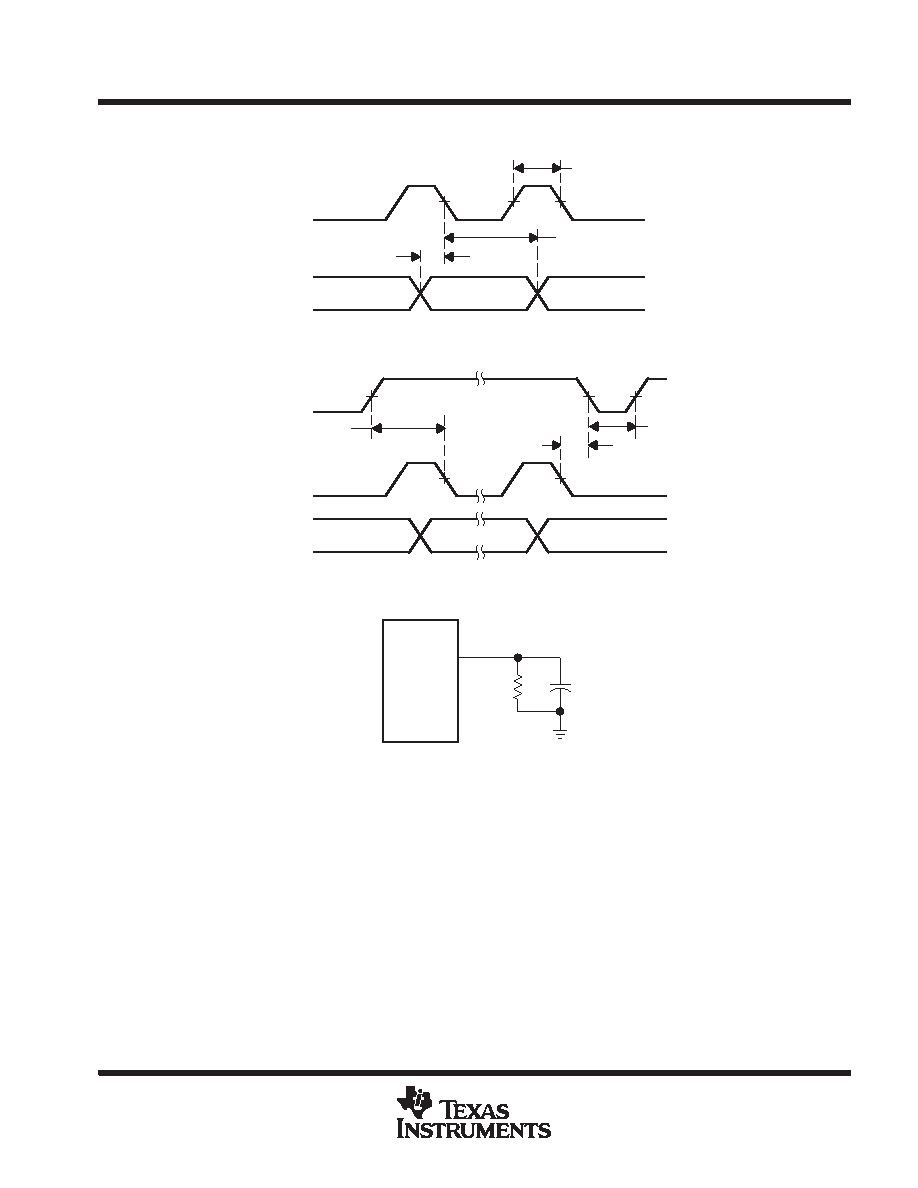

PARAMETER MEASUREMENT INFORMATION
tw(CLK)
50%
th(DATA-CLK)
tsu(DATA-CLK)
CLK
DATA
Figure 6. Timing of DATA Relative to CLK
50%
tw(EN)
CLK
DATA
50%
tsu(CLK-EN)
tsu(EN-CLK)
EN
Figure 7. Timing of CLK Relative to EN
10 k
CL = 100 pF
TLV5621
DACA
DACB
DACC
DACD
Figure 8. Slewing Settling Time and Linearity Measurements
