參數資料
| 型號： | TP01 |
| 廠商： | Crydom Co. |
| 文件頁數： | 1/3頁 |
| 文件大?。?/td> | 0K |
| 描述： | THERMAL PAD SINGLE PHASE |
| 其它有關文件： | Declaration of Conformity |
| 標準包裝： | 25 |
| 使用： | 單相 SSR，M50 電源模塊 |
| 形狀： | 矩形 |
| 外形： | 55.12mm x 42.42mm |
| 厚度： | 0.005"（0.127mm） |
| 膠合劑： | 粘合劑 - 一側 |
| 顏色： | 粉紅 |
| 導熱性： | 0.7 W/m-K |
| 產品目錄頁面： | 2640 (CN2011-ZH PDF) |
| 其它名稱： | 69-11-25972-T725 CC1644 TP01-ND |

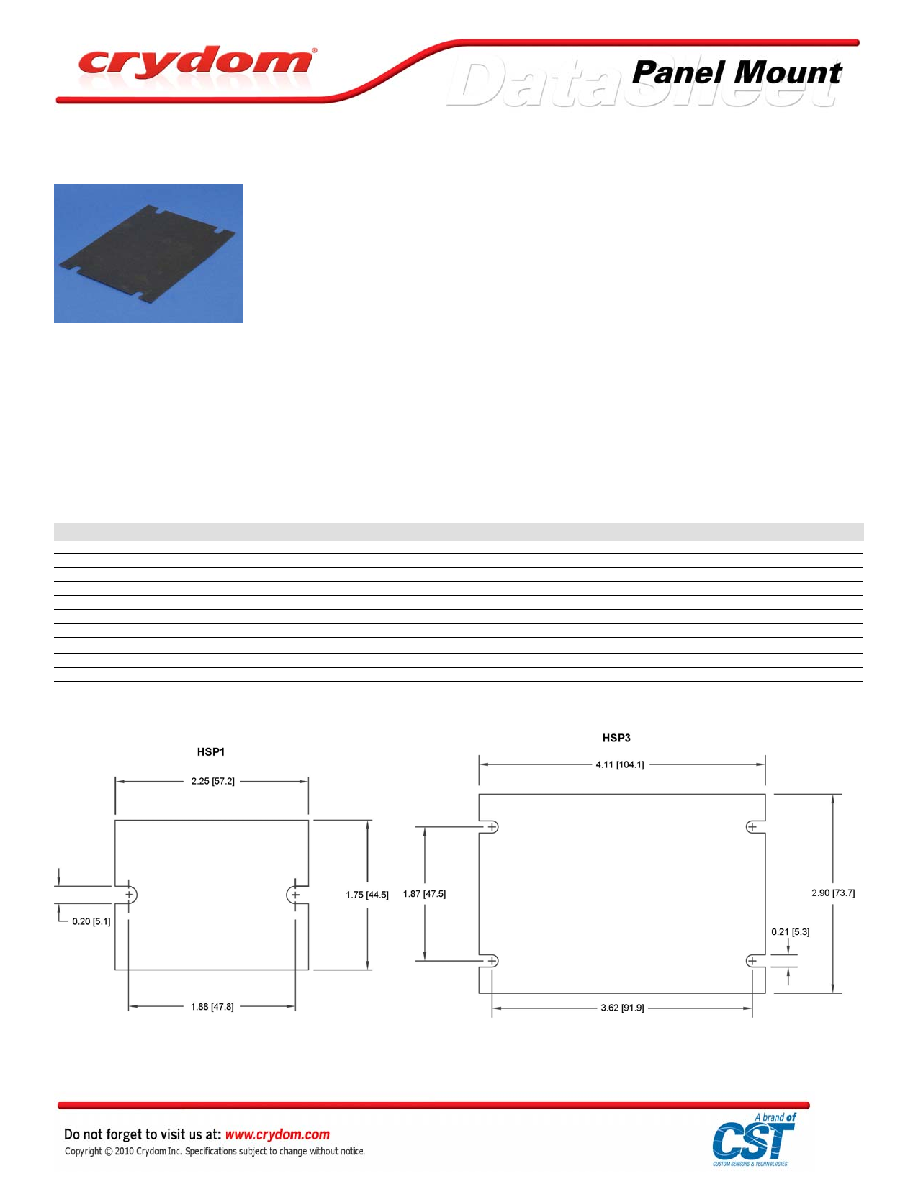

Heat Transfer Pad
Easy-to-use thermal interface Material designed for use with
Standard Crydom single-phase and three-phase
solid-state relays.
Excellent alternative to thermal grease
Adhesive on one side, removable protective film
on reverse side (1)
TP01
For use with all single phase Panel mount SSR’s, Control modules and M50 power modules.
TP03
All Three phase (53TP) SSR’s.
TYPICAL PROPERTIES
Description
TP01/TP03
Color
Pink
Thickness, inch (mm)
0.005 (0.13)
Adhesive One Side
Yes
Thermal Impeadance [°C-in/W]
0.03 @50 psi
Apparent Thermal Conductivity [W/m-K]
0.7
Phase-Change Temperature [°C]
58
Operating Temperature Range [°C]
-60 to 125
Volume Resistivity [ohm-cm]
1015 Ohm
Specific Gravity
1.11
Suggested Heatsink Clamping Pressure, psi (MPa)
5 to 100 (0.035 to 0.690)
MECHANICAL SPECIFICATIONS
(1)
Protective film must be removed from the pad prior to installation of SSR onto heatsink.
Failure to remove film may result in relay failure.
Rev. 112310
