TPA2026D2
IN+
IN–
OUT+
OUT–
V
DD
V
DD
GND
C
I
C
I
Measurement
Output
+
–
Load
30kHz
Low-Pass
Filter
Measurement
Input
+
–
1 F
m
www.ti.com
SLOS649A – MARCH 2010 – REVISED JANUARY 2011
OPERATING CHARACTERISTICS
at TA = 25°C, VDD = 3.6V, SDZ = 1.3 V, RL = 8 +33 mH, and AV = 6 dB (unless otherwise noted).
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
kSVR
Power-supply ripple rejection ratio
VDD = 3.6 Vdc with ac of 200 mVPP at 217 Hz
–68
dB
faud_in = 1 kHz, PO = 550 mW, VDD = 3.6 V
0.1%
faud_in = 1 kHz, PO = 1 W, VDD = 5 V
0.1%
THD+N
Total harmonic distortion + noise
faud_in = 1 kHz, PO = 630 mW, VDD = 3.6 V
1%
faud_in = 1 kHz, PO = 1.4 W, VDD = 5 V
1%
NfonF
Output integrated noise
Av = 6 dB
44
mV
NfoA
Output integrated noise
Av = 6 dB floor, A-weighted
33
mV
FR
Frequency response
Av = 6 dB
20
20000
Hz
THD+N = 10%, VDD = 5 V, RL = 8
1.72
W
THD+N = 10%, VDD = 3.6 V, RL = 8
750
mW
Pomax
Maximum output power
THD+N = 1%, VDD = 5 V, RL = 8
1.4
W
THD+N = 1% , VDD = 3.6 V, RL = 8
630
mW
THD+N = 1%, VDD = 3.6 V, RL = 8 , PO= 0.63 W
90%
h
Efficiency
THD+N = 1%, VDD = 5 V, RL = 8 , PO = 1.4 W
90%

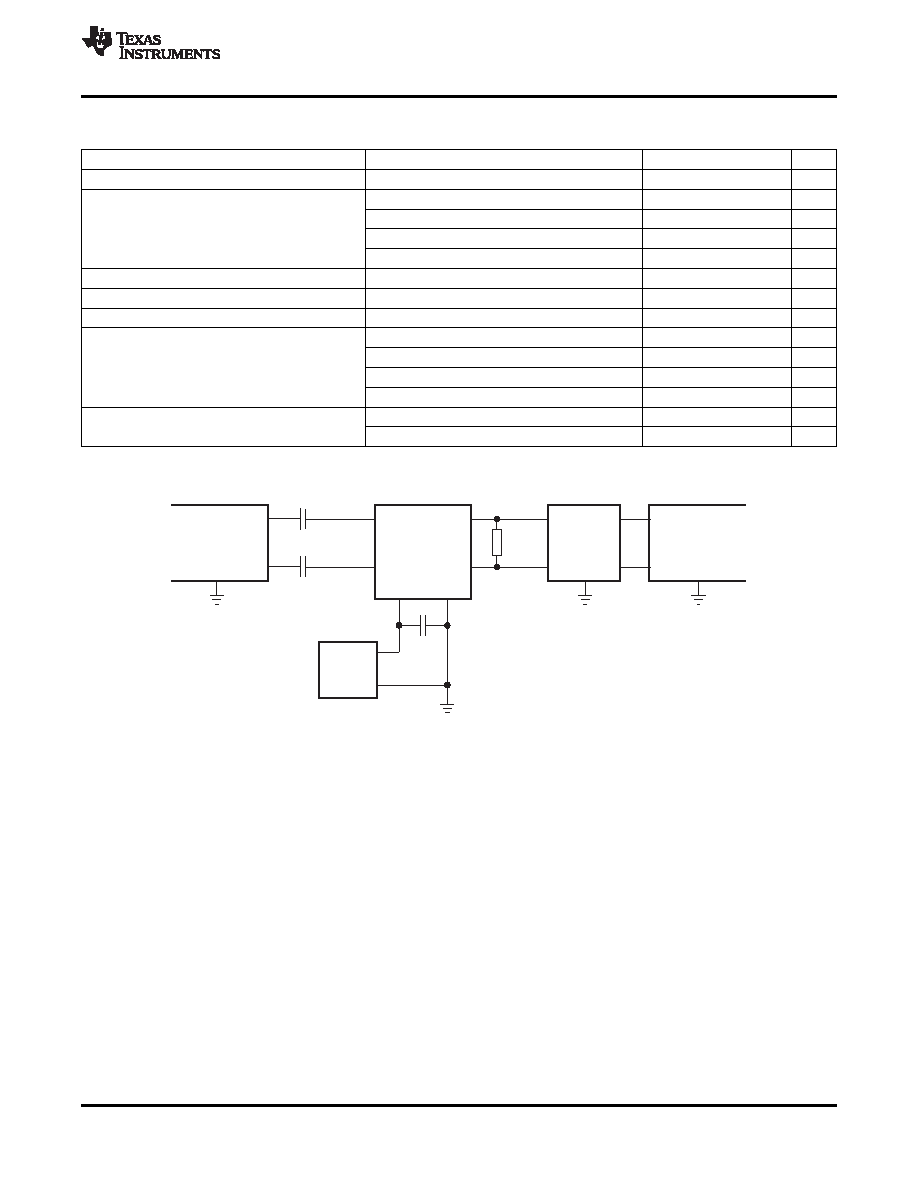

TEST SET-UP FOR GRAPHS
(1)
All measurements were taken with a 1-mF CI (unless otherwise noted).
(2)
A 33-mH inductor was placed in series with the load resistor to emulate a small speaker for efficiency measurements.
(3)
The 30-kHz low-pass filter is required, even if the analyzer has an internal low-pass filter. An RC low-pass filter (1 k
4.7 nF) is used on each output for the data sheet graphs.
Copyright 2010–2011, Texas Instruments Incorporated
5
Product Folder Link(s): TPA2026D2
