參數資料
| 型號： | TPA6110A2DGNR |
| 廠商： | TEXAS INSTRUMENTS INC |
| 元件分類： | 音頻／視頻放大 |
| 英文描述： | 0.15 W, 2 CHANNEL, AUDIO AMPLIFIER, PDSO8 |
| 封裝： | GREEN, PLASTIC, MSOP-8 |
| 文件頁數： | 1/23頁 |
| 文件大小： | 624K |
| 代理商： | TPA6110A2DGNR |
1
2
3
4
8
7
6
5
BYPASS
GND
SHUTDOWN
IN2–
IN1–
VO1
VDD
VO2
DGN PACKAGE
(TOP VIEW)
Audio
Input
Bias
Control
6
7
5
2
VO1
VO2
VDD
3
8
1
4
IN 1
BYPASS
SHUTDOWN
VDD/2
Ci
Ri
Rf
325 k
325 k
C(B)
C(S)
Audio
Input
Ci
Ri
IN 2
Rf
VDD
From Shutdown
Control Circuit
+
+
C(C)
SLOS314B
– DECEMBER 2000 – REVISED MARCH 2011
150-mW STEREO AUDIO POWER AMPLIFIER
Check for Samples: TPA6110A2
1
FEATURES
Surface-Mount Packaging
– PowerPAD MSOP
2
150 mW Stereo Output
Pin Compatible With LM4881
PC Power Supply Compatible
– Fully Specified for 3.3 V and 5 V
Operation
– Operation to 2.5 V
Pop Reduction Circuitry
Internal Mid-Rail Generation
Thermal and Short-Circuit Protection
DESCRIPTION
The TPA6110A2 is a stereo audio power amplifier packaged in an 8-pin PowerPAD
MSOP package capable of
delivering 150 mW of continuous RMS power per channel into 16-
loads. Amplifier gain is externally configured
by means of two resistors per input channel and does not require external compensation for settings of 1 to 10.
THD+N when driving a 16-
load from 5 V is 0.03% at 1 kHz, and less than 1% across the audio band of 20 Hz
to 20 kHz. For 32-
loads, the THD+N is reduced to less than 0.02% at 1 kHz, and is less than 1% across the
audio band of 20 Hz to 20 kHz. For 10-k
loads, the THD+N performance is 0.005% at 1 kHz, and less than
0.5% across the audio band of 20 Hz to 20 kHz.

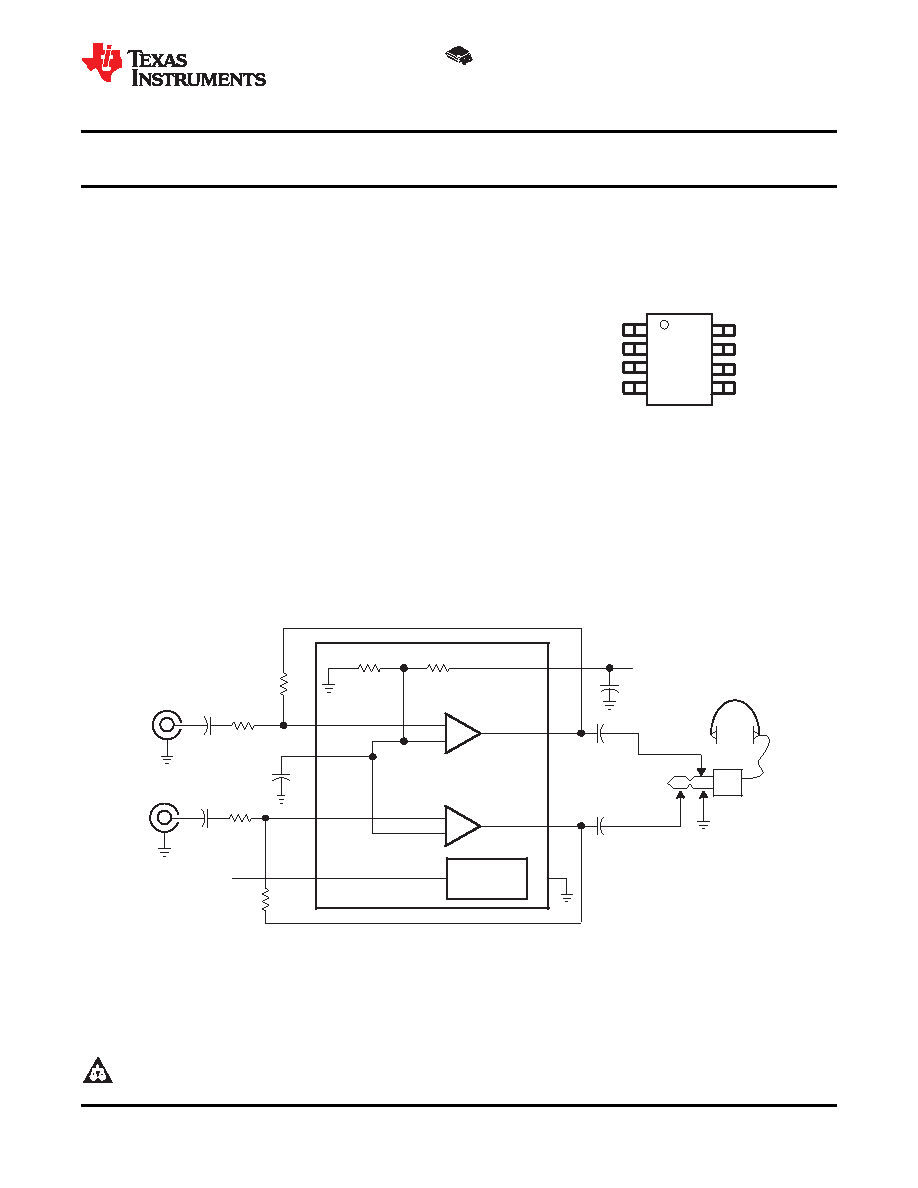

TYPICAL APPLICATION CIRCUIT
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2
PowerPAD is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Copyright
2000–2011, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
