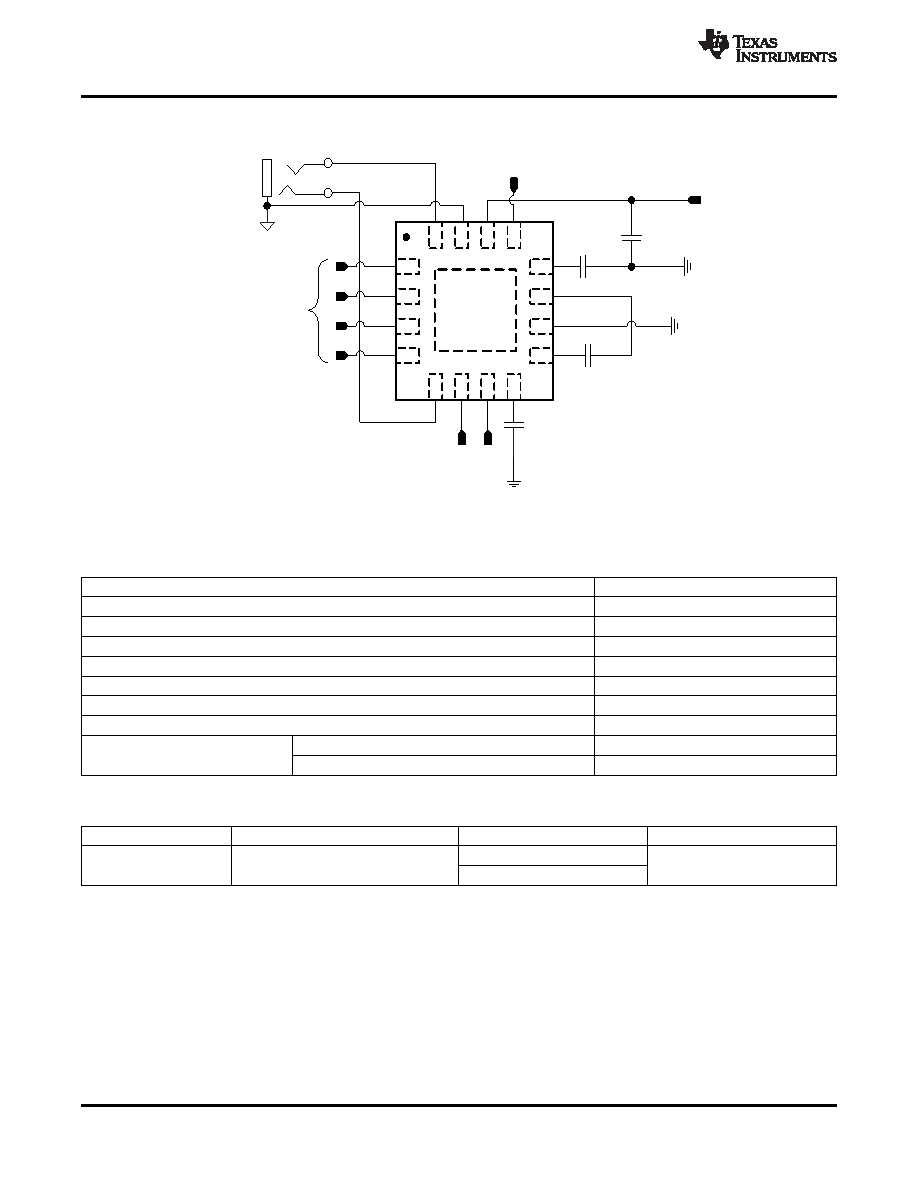

BOARD LAYOUT CONCEPT
5
1
2
3
4
12
11
10
9
6
7
8
1
6
1
5
1
4
1
3
MatchedBoardLayoutfor
DifferentialInputSignals
Soldered/
ElectricalFloat
or
GND
ToBattery
Enable
Control
2.2 F
m
2.2 F
m
1 F
m
1 F
m
HI-Z
Mode
Gain
Control
ABSOLUTE MAXIMUM RATINGS
SLOS623A – FEBRUARY 2009 – REVISED APRIL 2009 .................................................................................................................................................. www.ti.com
over operating free-air temperature range, TA = 25°C (unless otherwise noted)
VALUE / UNIT
Supply voltage, VDD
–0.3 V to 6.0 V
Headphone amplifier supply voltage, HPVDD (do not connect to external supply)
–0.3 V to 1.9 V
VI
Input voltage (INR+, INR-, INL+, INL-)
1.4 VRMS
Output continuous total power dissipation
See Dissipation Rating Table
TA
Operating free-air temperature range
–40°C to 85°C
TJ
Operating junction temperature range
–40°C to 150°C
Tstg Storage temperature range
–65°C to 150°C
OUTL, OUTR
8 kV
ESD Protection – HBM
All Other Pins
2 kV
ORDERING GUIDE
TA
PACKAGED DEVICES(1)
PART NUMBER(2)
SYMBOL
TPA6135A2RTER
–40°C to 85°C
16-pin, 3 mm × 3 mm Thin QFN
AOTI
TPA6135A2RTET
(1)
For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
Web site at www.ti.com.
(2)
The RTE packages is only available taped and reeled. The suffix “R” indicates a reel of 3000, the suffix “T” indicates a reel of 250
4
Copyright 2009, Texas Instruments Incorporated
Product Folder Link(s) :TPA6135A2
