TPS330615Q1, TPS330618Q1, TPS330620Q1, TPS330625Q1, TPS330633Q1
DUAL PROCESSOR SUPERVISORY CIRCUITS WITH POWERFAIL
SGLS241 MARCH 2004
4
POST OFFICE BOX 655303
DALLAS, TEXAS 75265

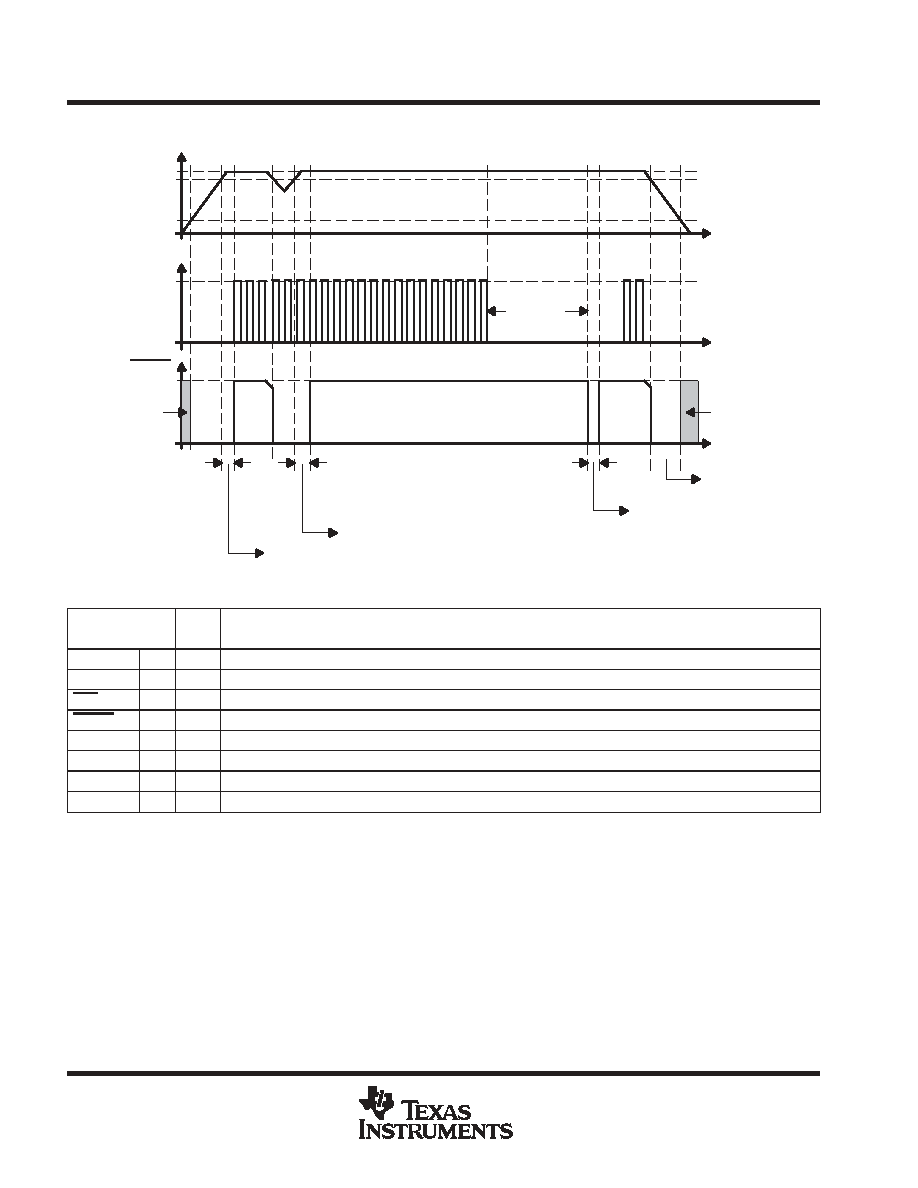

timing diagram
t
td
RESET Because
of Power-Down
RESET Because of WDI
RESET Because of a Power Drop Below VIT
RESET Because of Power-Up
tt(out)
SENSEn
V(nom)
VIT
1.1 V
WDI
1
0
RESET
1
0
Undefined
Behavior
Undefined
Behavior
Terminal Functions
TERMINAL
I/O
DESCRIPTION
NAME
NO.
I/O
DESCRIPTION
GND
4
I
Ground
PFI
3
I
Power-fail comparator input
PFO
6
O
Power-fail comparator output, open-drain
RESET
5
O
Active-low reset output, open-drain
SENSE1
1
I
Sense voltage input 1
SENSE2
2
I
Sense voltage input 2
WDI
7
I
Watchdog timer input
VDD
8
I
Supply voltage
detailed description
watchdog
In a microprocessor- or DSP-based system, it is not only important to supervise the supply voltage, it is also important
to ensure correct program execution. The task of a watchdog is to ensure that the program is not stalled in an indefinite
loop. The microprocessor, microcontroller, or DSP has to typically toggle the watchdog input within 0.8 s to avoid a
time out occurring. Either a low-to-high or a high-to-low transition resets the internal watchdog timer. If the input is
unconnected or tied with a high impedance driver, the watchdog is disabled and will be retriggered internally.
