TA - Ambient Temperature - °C
10
20
40
60
80
100
120
20
30
40
CURRENT SENSE IMPEDANCE
vs
AMBIENT TEMPERATURE
R
T
H
E
(T
5C
)-
Current
Sense
Impedance
-
k
r
r Measured
Acquired
24
23
22
EN/SYNC
VIN
BP5
TPS40090
TLA431
12V
6V
4.7
F
m
1.1kW
13.7kW
10kW
SLUS845C
– JUNE 2008 – REVISED MAY 2011

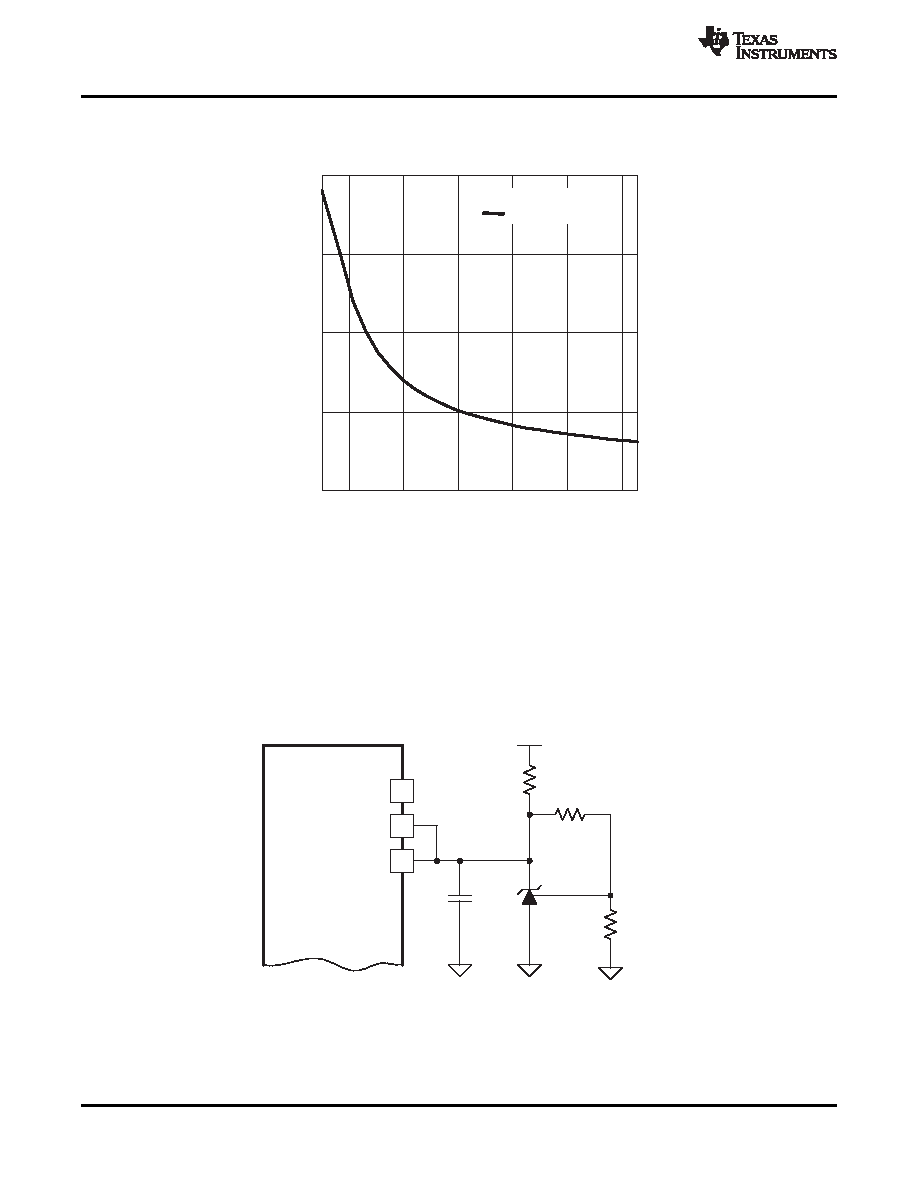

Figure 13.
Operation With Output Voltages Higher Than 3.3 V
The TPS40090 controllers are designed to operate in power supplies with output voltages ranging from 0.7 V to
3.3 V. To support higher output voltages, mainly in 12-V to 5-V power supplies, the BP5 voltage needs to be
increased slightly to provide enough headroom to ensure linearity of current sense amplifiers. The simple circuit
on Figure 14 shows a configuration that generates a 6-V voltage source to power the controller with increased
bias voltage. Both the VIN and BP5 pins should be connected to this voltage source. The differential amplifier
normally excessive for higher-output voltages can be disabled by connecting GNDS pin to the BP5 pin.
Figure 14. Biasing the TPS40090 With a 5-V Power Supply
Design Example
A design example is available in the TPS40090EVM-001 user
’s guide (SLUU175).
20
Copyright
2008–2011, Texas Instruments Incorporated
