VFB
VREG5
SS
GND
EN
VIN
VBST
SW
EXPOSED
THERMAL PAD
AREA
BOOST
CAPACITOR
VOUT
VIA to Ground Plane
OUTPUT
INDUCTOR
OUTPUT
FILTER
CAPACITOR
SLOW
START
CAP
ANALOG
GROUND
TRACE
VIN
INPUT
BYPASS
CAPACITOR
VIN
FEEDBACK
RESISTORS
TO ENABLE
CONTROL
POWER GROUND
BIAS
CAP
Connection to
POWER GROUND
on internal or
bottom layer
VIN
HIGH FREQENCY
BYPASS
CAPACITOR
www.ti.com
SLVSAN2 – NOVEMBER 2010
LAYOUT CONSIDERATIONS
1. Keep the input switching current loop as small as possible.
2. Keep the SW node as physically small and short as possible to minimize parasitic capacitance and
inductance and to minimize radiated emissions. Kelvin connections should be brought from the output to the
feedback pin of the device.
3. Keep analog and non-switching components away from switching components.
4. Make a single point connection from the signal ground to power ground.
5. Do not allow switching current to flow under the device.
6. Keep the pattern lines for VIN and PGND broad.
7. Exposed pad of device must be connected to PGND with solder.
8. VREG5 capacitor should be placed near the device, and connected PGND.
9. Output capacitor should be connected to a broad pattern of the PGND.
10. Voltage feedback loop should be as short as possible, and preferably with ground shield.
11. Lower resistor of the voltage divider which is connected to the VFB pin should be tied to SGND.
12. Providing sufficient via is preferable for VIN, SW and PGND connection.
13. PCB pattern for VIN, SW, and PGND should be as broad as possible.
14. VIN Capacitor should be placed as near as possible to the device.

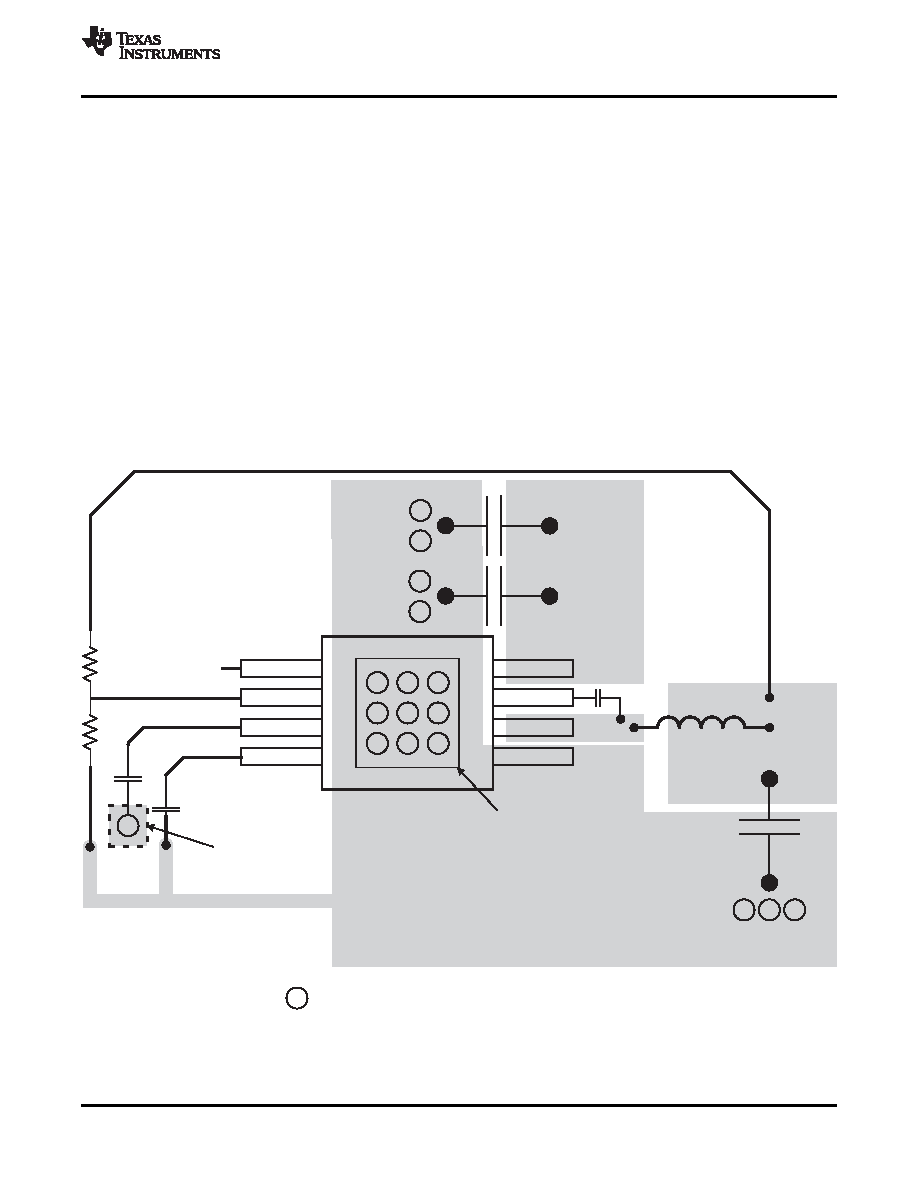

Figure 17. PCB Layout
Copyright 2010, Texas Instruments Incorporated
15
Product Folder Link(s) :TPS54328
