參數資料
| 型號： | TQD085ZED-A |
| 廠商： | POWER-ONE INC |
| 元件分類： | 電源模塊 |
| 英文描述： | 2-OUTPUT 100 W DC-DC REG PWR SUPPLY MODULE |
| 封裝： | ROHS COMPLIANT PACKAGE-14 |
| 文件頁數： | 1/2頁 |
| 文件大小： | 88K |
| 代理商： | TQD085ZED-A |
Turn-On Time
20 ms
Remote Shutdown
Positive Logic
Switching Frequency
250 kHz
Isolation
Input - Output
1500 VDC
Input - Case
1050 VDC
Output - Case
500 VDC
Temperature Coefficient
0.03 %/°C
Case Temperature
Operating Range
-40 To +100 °C
Storage Range
-40 To +125 °C
Thermal Shutdown Range
105 To 115 °C
Humidity Max., Non-Condensing
95%
Vibration, 3 Axes, 5 Min Each
5 g
MTBF (Bellcore TR-NWT-000332)
1.2 X 106 hrs
Safety
UL, cUL, TUV
Weight (Approx.)
3.8 oz
Technical Specifications
Setpoint Accuracy
±1%
Line Regulation Vin Min. - Vin Max., Iout Rated, Output 1
0.2% Vout
Load Regulation Iout Min. - Iout Max., Vin Nom., Output 1
0.3% Vout
Minimum Output Current, Each Output
10 % Iout Rated
Dynamic Regulation, Loadstep
25% Iout
Pk Deviation
4% Vout
Settling Time
500
μs
Voltage Trim Range
±10%
Power Limit Threshold Range, % of Iout Rated
110 - 130%
OVP Trip Range
115 - 140% Vout Nom.
UVP Trip Range
70 - 90%
Voltage range
5 VDC nominal
18 - 36 VDC
12 VDC nominal
36 - 72 VDC
Reflected ripple
50 mA
Input Reverse Voltage Protection
Shunt Diode
Input
Output
General
The TQD dc-dc converters are high power, dual output, fully-isolated converters that feature high efficiency, 1500 VDC
isolation, and open-frame packaging. The TQD Series allows board designers to deliver any combination of power
from either output, up to each model’s maximum rating. The TQD Series is available in 5V/3.3V or 3.3V/2.5V combi-
nations, uses planar magnetics, and has an MTBF of over a million hours.
Description
RoHS lead-solder-exempt compliant
Independent dual outputs
Flexible load sharing
High efficiency
Open-frame design
Planar magnetics
Independent trim for each output
Synchronous rectification
1500 V isolation
100 °C base plate operation
Features
55
60
65
70
75
80
85
90
10
20
30
40
50
60
70
80
90
100
LOAD %
EFFICIENCY
%
TQD085ZED
TQD100ZGE
MTBF predictions may vary slightly from model to model.
Specifications typically at 25 °C, normal line, and full load, unless
otherwise stated.
Soldering Conditions: I/O pins, 260 °C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Units are water-washable and fully compatible with commercial spray or
immersion post wave-solder washing equipment.
Efficiency vs. Load (48V Input)
Notes
Dual Output, 100 Watts

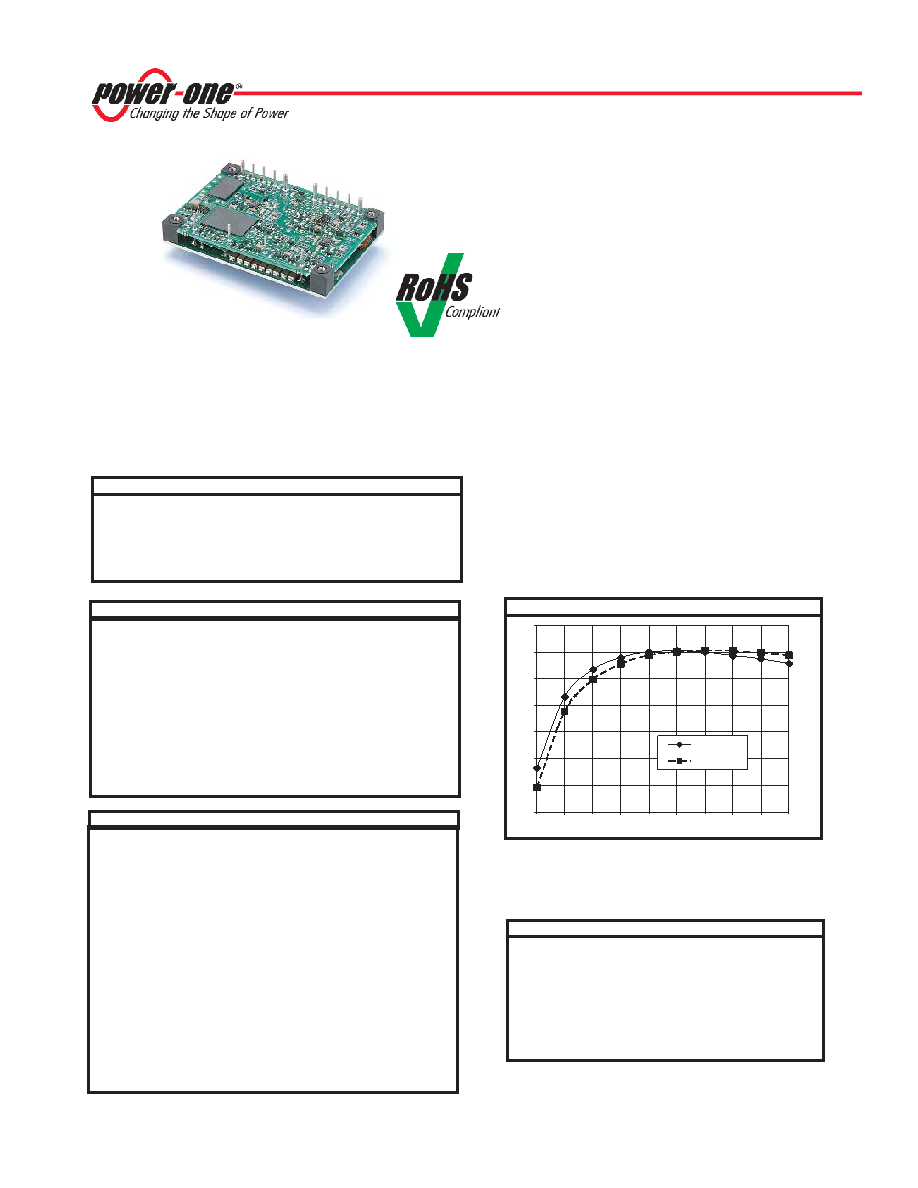

TQD DC-DC Series Data Sheet
MCD10055 Rev. 1.0
Page 1 of 2
www.power-one.com
