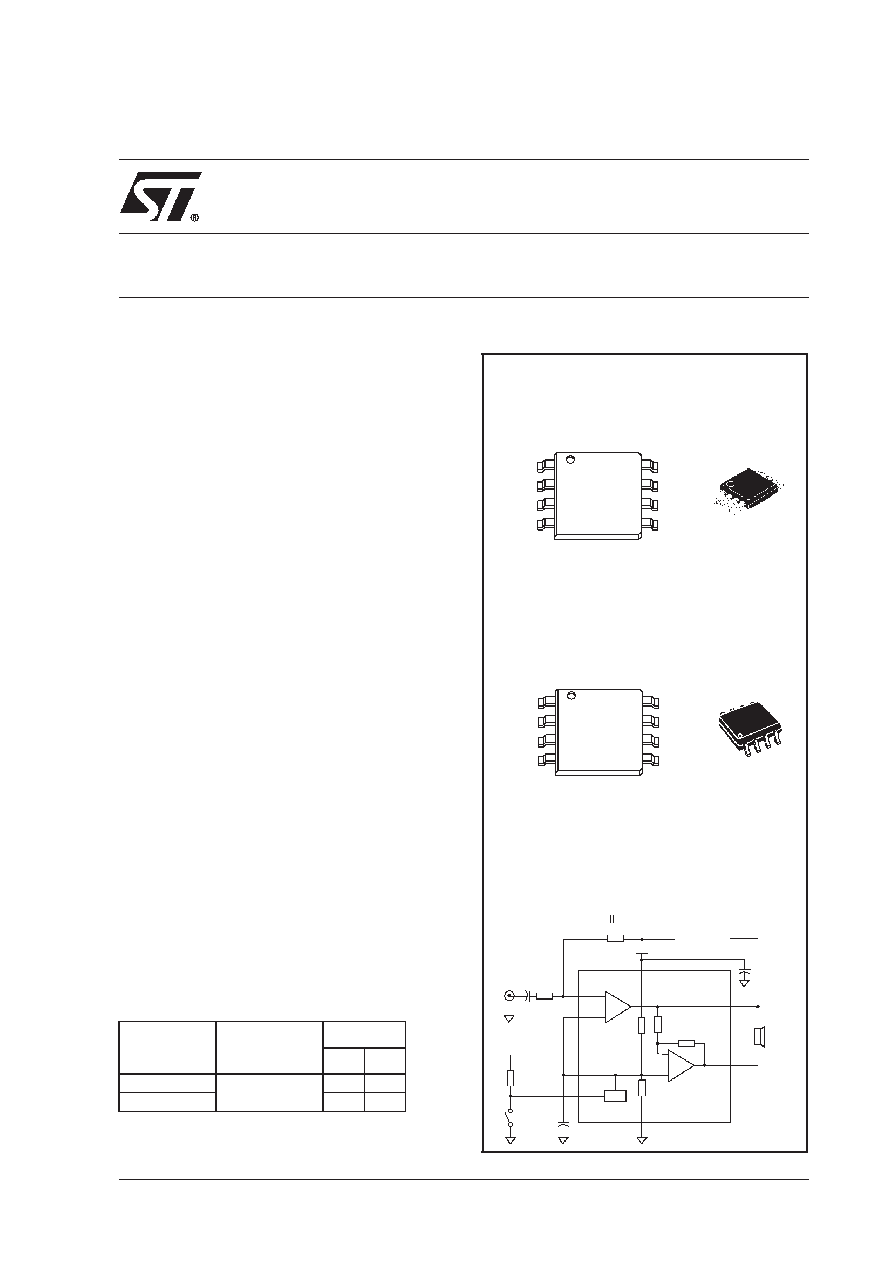

1/28
s OPERATING FROM V
CC = 2.5V to 5.5V
s 1W RAIL TO RAIL OUTPUT POWER @
Vcc=5V, THD=1%, f=1kHz, with 8
Load
s ULTRA LOW CONSUMPTION IN STANDBY
MODE (10nA)
s 75dB PSRR @ 217Hz from 5V to 2.6V
s ULTRA LOW POP & CLICK
s ULTRA LOW DISTORTION (0.1%)
s UNITY GAIN STABLE
s AVAILABLE IN MiniSO8 & SO8
DESCRIPTION
The TS4871 (MiniSO8 & SO8) is an Audio Power
Amplifier capable of delivering 1W of continuous
RMS Ouput Power into 8
load @ 5V.
This Audio Amplifier is exhibiting 0.1% distortion
level (THD) from a 5V supply for a Pout = 250mW
RMS. An external standby mode control reduces
the supply current to less than 10nA. An internal
thermal shutdown protection is also provided.
The TS4871 has been designed for high quality
audio applications such as mobile phones and to
minimize the number of external components.
The unity-gain stable amplifier can be configured
by external gain setting resistors.
APPLICATIONS
s Mobile Phones (Cellular / Cordless)
s Laptop / Notebook Computers
s PDAs
s Portable Audio Devices
ORDER CODE
S= MiniSO Package (MiniSO) - also available in Tape & Reel (ST)
D= Small Outline Package (SO) - also available in Tape & Reel (DT)
PIN CONNECTIONS (Top View)
Part Number
Temperature
Range
Package
SD
TS4871IS
-40, +85
°C
TS4871ID
Standby
Bypass
V+
IN
VIN-
V2
OUT
GND
VCC
VOUT1
1
2
3
4
8
7
6
5
Rin
Cin
Rstb
Cb
Rfeed
4
3
2
1
5
8
Vin-
Vin+
-
+
-
+
Bypass
Standby
Bias
6
Vout1
Vout2
Av=-1
TS4871
RL
8 Ohms
Vcc
GND
Audio
Input
Vcc
Cfeed
Cs
7
TYPICAL APPLICATION SCHEMATIC
TS4871IS-TS4871IST - MiniSO8
TS4871ID-TS4871IDT - SO8
Standby
Bypass
V+
IN
VIN-
V2
OUT
GND
VCC
VOUT1
1
2
3
4
8
7
6
5
TS4871
OUTPUT RAIL TO TAIL 1W AUDIO POWER AMPLIFIER
WITH STANDBY MODE
November 2001
