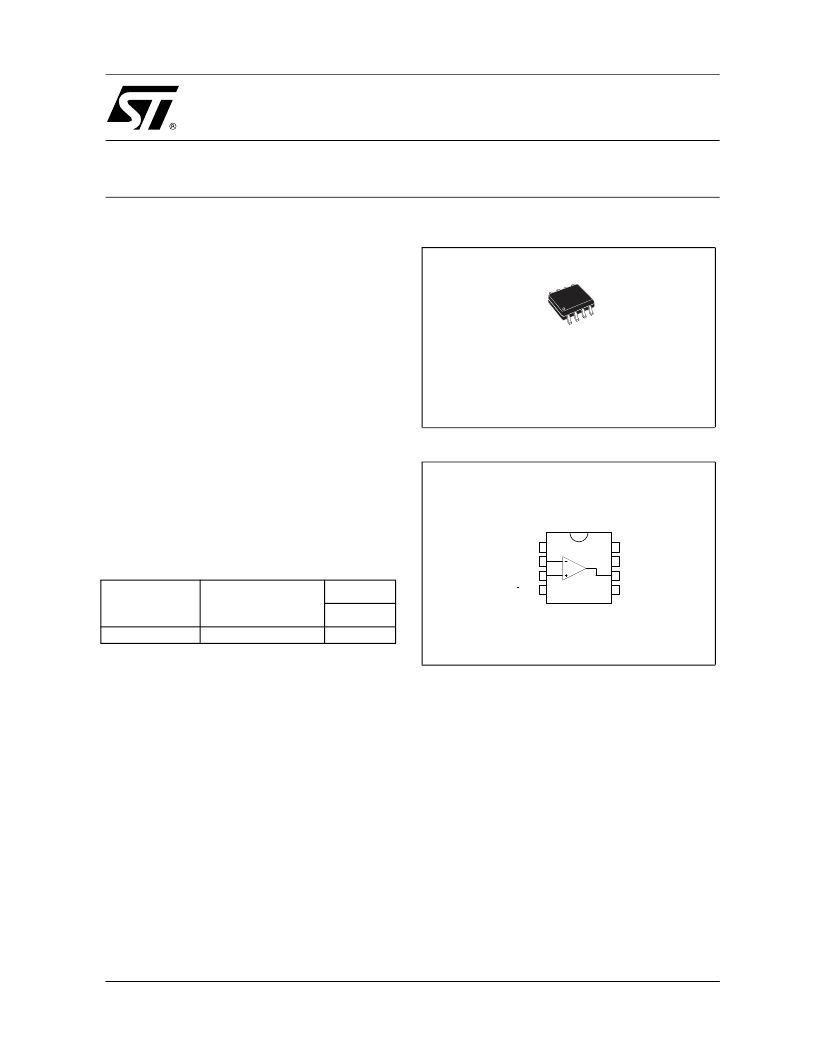

1/5
I
LOW DISTORTION
I
GAIN BANDWIDTH PRODUCT : 300MHz
I
GAIN OF 2 STABILITY
I
SLEW RATE : 400V/
μ
s
I
VERY FAST SETTLING TIME : 60ns (0.1%)
I
VERY HIGH INPUT IMPEDANCE
DESCRIPTION
The TSH321 is a wideband monolithic operational
amplifier, requiring a minimum close loop gain of 2
for stability.
The TSH321 features extremely high input imped-
ance (typically greater than 10
12
) allowing direct
interfacing with high impedance sources.
Low distortion, wide bandwidth and high linearity
make this amplifier suitable for RF and video ap-
plications. Short circuit protection is provided by
an internal current-limiting circuit.
The TSH321 has internal electrostatic discharge
(ESD)
protection
circuits
MILSTD883C-Class2.
and
fulfills
ORDER CODE
D =
Small Outline Package (SO) - also available in Tape & Reel (DT)
PIN CONNECTIONS
(top view)
Part Number
Temperature Range
Package
D
TSH321I
-40°C, +125°C
D
SO8
(Plastic Micropackage)
1
2
3
4
8
6
5
7
Inverting Input
Non-inverting Input
Output
Offset Null 2
Offset Null 1
N.C.
V
CC
V
CC
+
TSH321
WIDE BANDWIDTH AND MOS INPUT
SINGLE OPERATIONAL AMPLIFIER
October 2000
