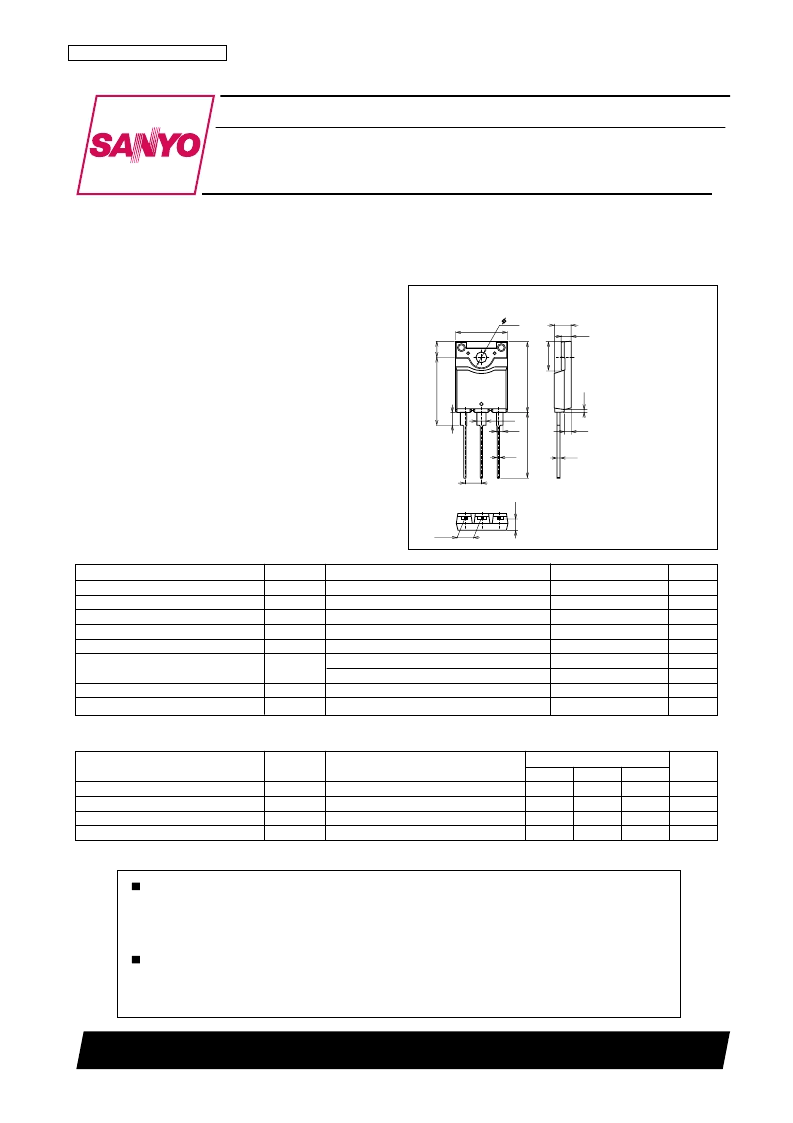

TT2066
No.6660-1/4
NPN Triple Diffused Planar Silicon Transistor
Features
High speed.
High breakdown voltage (VCBO=1500V).
High reliability (Adoption of HVP process).
Adoption of MBIT process.
Specifications
Absolute Maximum Ratings
at Ta=25
°
C
Parameter
Symbol
VCBO
VCEO
VEBO
IC
ICP
Conditions
Ratings
Unit
V
V
V
A
A
W
W
°
C
°
C
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
1500
800
5
24
40
3.0
95
150
Collector Dissipation
PC
Tc=25
°
C
Junction Temperature
Storage Temperature
Tj
Tstg
--55 to +150
Electrical Characteristics
at Ta=25
°
C
Ratings
typ
Parameter
Symbol
Conditions
min
max
Unit
Collector Cutoff Current
Collector Cutoff Current
Collector Sustain Voltage
Emitter Cutoff Current
ICBO
ICES
VCB=800V, IE=0
VCE=1500V, RBE=0
IC=100mA, IB=0
VEB=4V, IC=0
10
1.0
μ
A
mA
V
mA
VCEO(sus)
IEBO
800
1.0
Continued on next page.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
Ordering number : ENN6660
TT2066
Package Dimensions
unit : mm
2174
[TT2066]
82200 TS IM TA-2899
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
16.0
3.4
1
2
3
2
5
2
0
2
4
2.0
2.8
2.1
5.45
5.45
0.7
0.9
3
8
5.6
3.1
1 : Base
2 : Collector
3 : Emitter
SANYO : TO-3PMLH
Ultrahigh-Definition CRT Display
Horizontal Deflection Output Applications
