FEATURES
Among the three families of triple-output DC/DC converters in DATEL’s new
A-Series, the 8-11W, 2" x 1" devices stand out as the industry’s smallest
full-featured triples. Housed in miniature 2" x 1" x 0.375", 5-side shielded, metal
packages with electrically non-conductive coatings, these power converters offer
non-latching output current limiting, input overvoltage shutdown (except D5A
models), input reverse-polarity protection, and output overvoltage clamping to pro-
tect both the power converters and their loads.
As members of DATEL’s new A-Series, the 8-11W triples feature both low cost
and outstanding long-term reliability. Their design combines straightforward circuit
topologies, the newest components, proven SMT-on-pcb construction methods, and
highly repeatable automatic-assembly techniques. Their superior durability is sub-
stantiated by a rigorous in-house qualification program that includes HALT (Highly
Accelerated Life Testing).
Each of these fully line and load-regulated switching DC/DC converters has a
+5V primary output (with output current as high as 1A) and either ±12V or ±15V
auxiliary outputs (with currents as high as ±210mA). These devices were designed
to power small analog/digital partitions in equipment employing distributed-power
architectures with bus voltages between 4.7 and 72 Volts. Applications include
computer/networking, telecom/datacom equipment, industrial instrumentation and
automatic test equipment.
The smallest, full-featured triples
Low cost! Highly reliable!
Proven SMT-on-pcb construction
Qual tested; HALT tested; EMC tested
Output voltages: +5V/±12V or +5V/±15V
Four input voltage ranges:
4.7-7V, 9-18V, 18-36V or 36-72V
Small packages, 2" x 1" x 0.375"
–40 to +100°C operating temperature
Fully isolated, 1500Vdc guaranteed
Guaranteed efficiencies to 82%
Designed to meet UL1950 and EN60950
Modifications and customs for OEM’s
PWM
CONTROLLER
+VIN
–VIN
Typical topology is shown

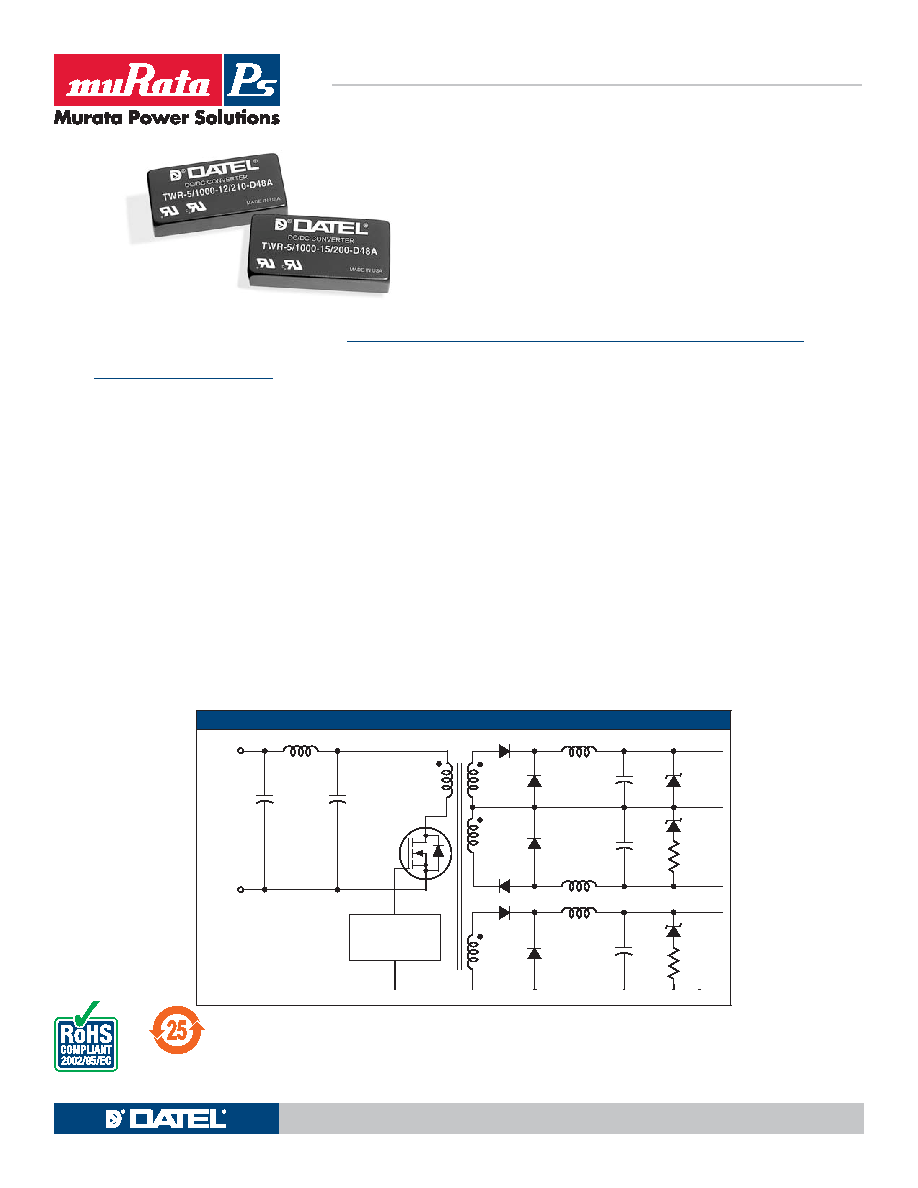

SIMPLIFIED SCHEMATIC
PRODUCT OVERVIEW
TWR Models
High-Reliability, 2" x 1", 8-11 W, Triple Output DC/DC Converters
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com
Technical enquiries email: sales@murata-ps.com, tel: +1 508 339 3000
MDC_TWR8-11W.B01 Page 1 of 5
