The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
2002
BIPOLAR ANALOG INTEGRATED CIRCUIT
μ
PC3533,3504
THREE-THERMAL POSITIVE OUTPUT VOLTAGE
DATA SHEET
Document No. G15965EJ2V0DS00 (2nd edition)
Date Published July 2002 NS CP(K)
Printed in Japan
The mark
#
shows major revised points.
DESCRIPTION
The
μ
PC3533 and 3504 are three-thermal positive output voltage regulators with an output current of 1 A at respective
output voltages of 3.3 and 4 V. These regulators are guaranteed to operate at as low as
40°C.
FEATURES
Output current capacity: 1 A
On-chip overcurrent limiter
On-chip output transistor safe operation area protection
On-chip thermal protection
Output capacitor capacitance: 0.1
μ
F or higher
Wide operating temperature range: T
A
=
40 to +85°C

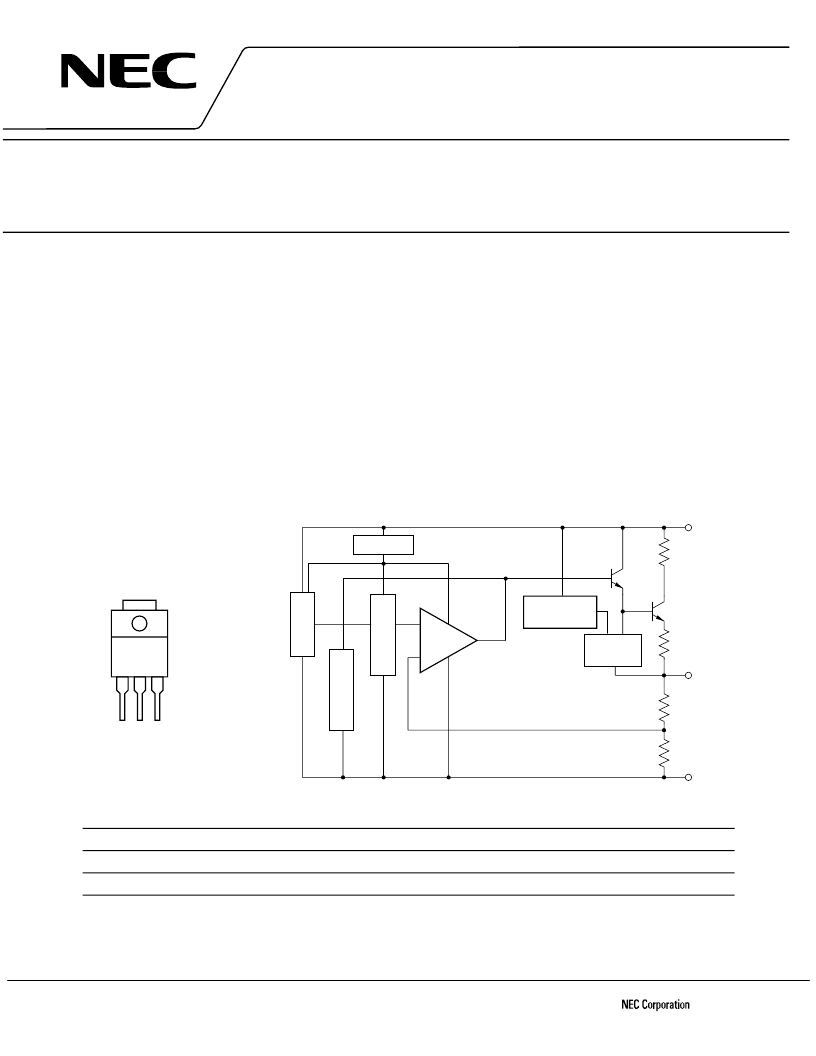

PIN CONFIGURATION
(Marking Side)
μ
PC3533HF, 3504HF: MP-45G
1: INPUT
2: GND
1
Marking
2
3
3: OUTPUT
BLOCK DIAGRAM
GND
OUTPUT
INPUT
S
T
R
c
Error Amp.
Safe operation
area protection
Overcurrent
protection
Constant
current source
ORDERING INFORMATION
Part Number
Package
Outputs
Marking
Packing Type
μ
PC3533HF
MP-45G (Isolated TO-220)
3.3 V
3533
Bag stuffing
μ
PC3540HF
MP-45G (Isolated TO-220)
4.0 V
3504
Bag stuffing
