參數資料
| 型號： | W24L01Q-70LI |
| 廠商： | WINBOND ELECTRONICS CORP |
| 元件分類： | SRAM |
| 英文描述： | 128K X 8 CMOS STATIC RAM |
| 中文描述： | 128K X 8 STANDARD SRAM, 70 ns, PDSO32 |
| 封裝： | 8 X 13.40 MM, TSOP1-32 |
| 文件頁數： | 6/11頁 |
| 文件大小： | 182K |
| 代理商： | W24L01Q-70LI |
W24L01
- 6 -

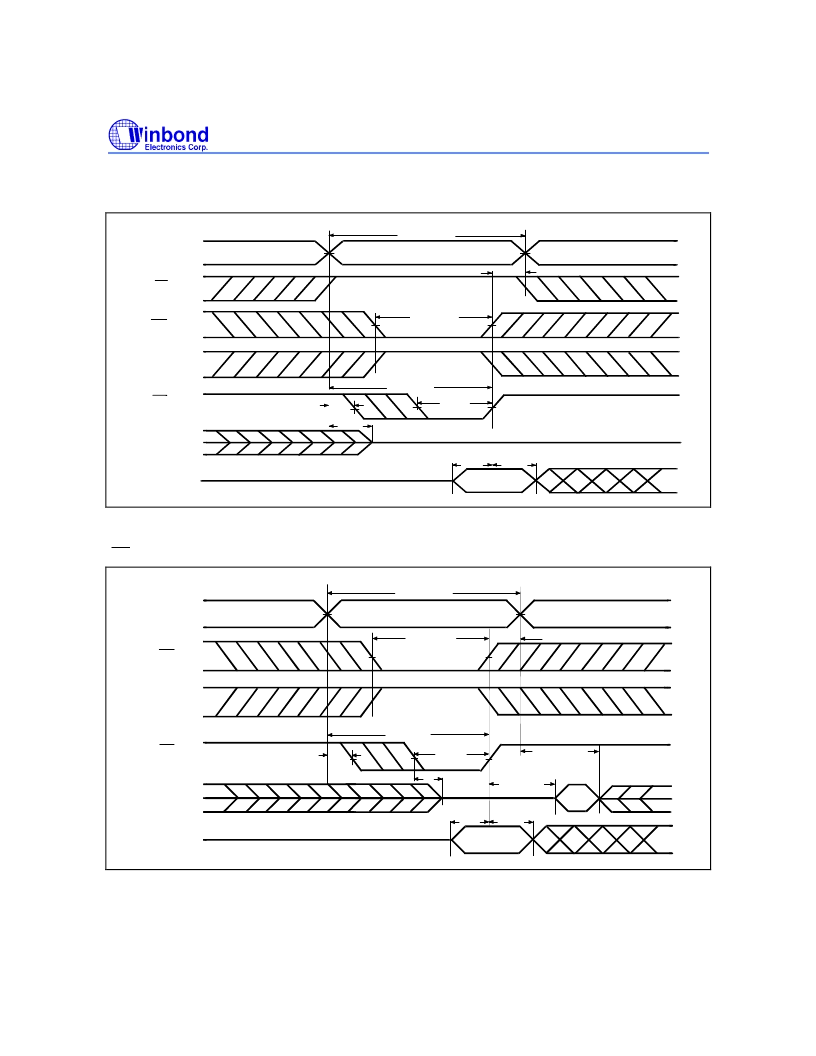

Timing Waveforms, continued
Write Cycle 1
Address
OE
T
WC
T
WR
WE
D
OUT
D
IN
T
WP
T
AS
T
OHZ
(1, 4)
T
DW
T
DH
T
AW
CS1
T
CW
CS2
Write Cycle 2
(OE = V
IL
Fixed)
WE
D
OUT
D
IN
T
AS
T
DH
T
WP
T
WHZ
DW
T
(2)
(3)
T
OW
T
OH
AW
T
(1, 4)
T
CW
T
WR
Address
T
WC
CS1
CS2
Notes:
1. During this period, I/O pins are in the output state, so input signals of opposite phase to the outputs should not be applied.
2. The data output from D
OUT
are the same as the data written to D
IN
during the write cycle.
3. D
OUT
provides the read data for the next address.
4. Transition is measured
±
500 mV from steady state with C
L
= 5 pF. This parameter is guaranteed but not 100% tested.
