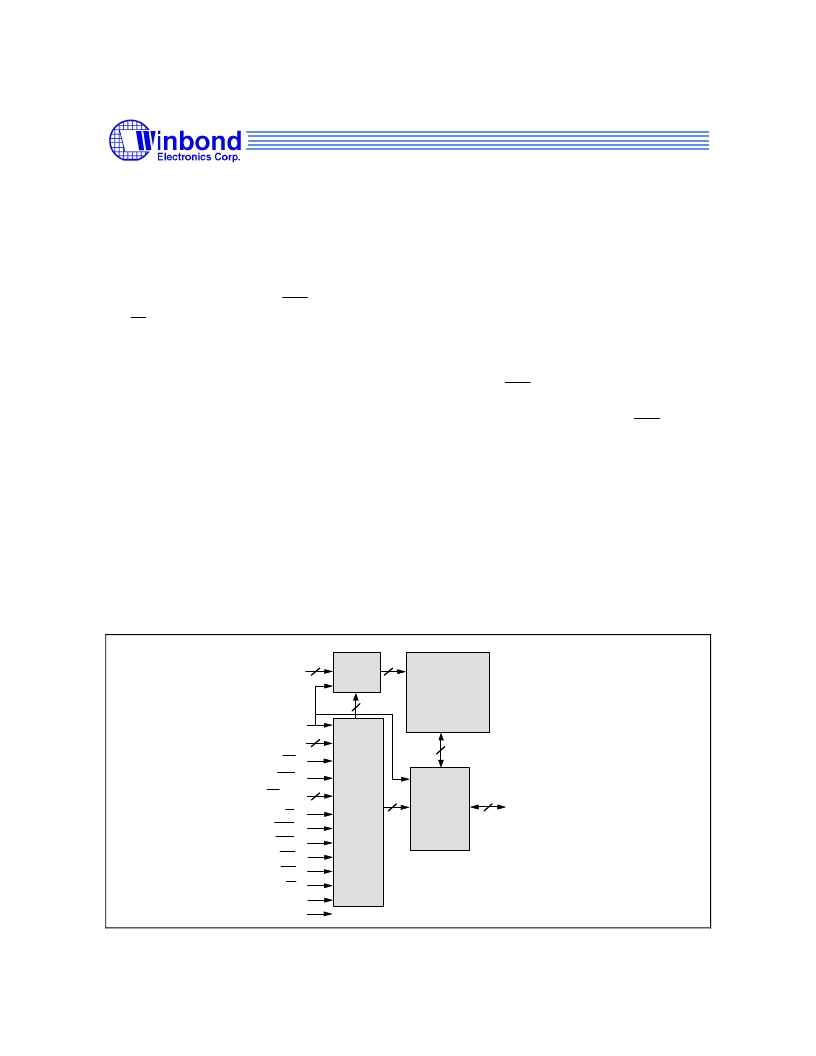

W25P012A
32K
×
32 BURST-PIPELINED HIGH-SPEED
CMOS STATIC RAM
Publication Release Date: Septermber 1996
- 1 -
Revision A4
GENERAL DESCRIPTION
The W25P012A is a high-speed, low-power, synchronous-burst pipelined, CMOS static RAM
organized as 32,768
×
32 bits that operates on a single 3.3-volt power supply. A built-in two-bit burst
address counter supports both Pentium
burst mode and linear burst mode. The mode to be
executed is controlled by the LBO pin. Pipelining or non-pipelining of the data outputs is controlled by
the FT pin. A snooze mode reduces power dissipation.
The W25P012A supports both 2T/2T mode and 2T/1T mode which can be selected by pin 42. The
default mode is 2T/1T, with pin 42 low. To switch to 2T/2T mode, bias pin 42 to V
DDQ
. The state of
pin 42 should not be changed after power up. The 2T/2T mode will sustain one cycle of valid data
output in a burst read cycle when the device is deselected by CE2/CE3. This mode supports 3-1-1-1-
1-1-1-1 in a two-bank, back-to-back burst read cycle. On the other hand, the 2T/1T mode disable data
output within one cycle in a burst read cycle when the device is deselected by CE2/CE3. In this
mode, the device supports only 3-1-1-1-2-1-1-1 in a two-bank, back-to-back burst read cycle.
FEATURES
Synchronous operation
High-speed access time: 6/7/8 nS (max.)
Single +3.3V power supply
Individual byte write capability
3.3V LVTTL compatible I/O
Clock-controlled and registered input
Asynchronous output enable
Pipelined/non-pipelined data output capability
Supports snooze mode (low-power state)
Internal burst counter supports Intel burst
mode & linear burst mode
Support both 2T/2T & 2T/1T mode
Packaged in 100-pin QFP and TQFP
BLOCK DIAGRAM
DATA I/O
REGISTER
INPUT
REGISTER
CONTROL
LOGIC
REGISTER
32K X 32
CORE
ARRAY
I/O (32:1)
A (14:0)
CE (3:1)
BWE
CLK
OE
GW
ADSC
ADSP
ADV
LBO
BW (4:1)
FT
ZZ
MS
