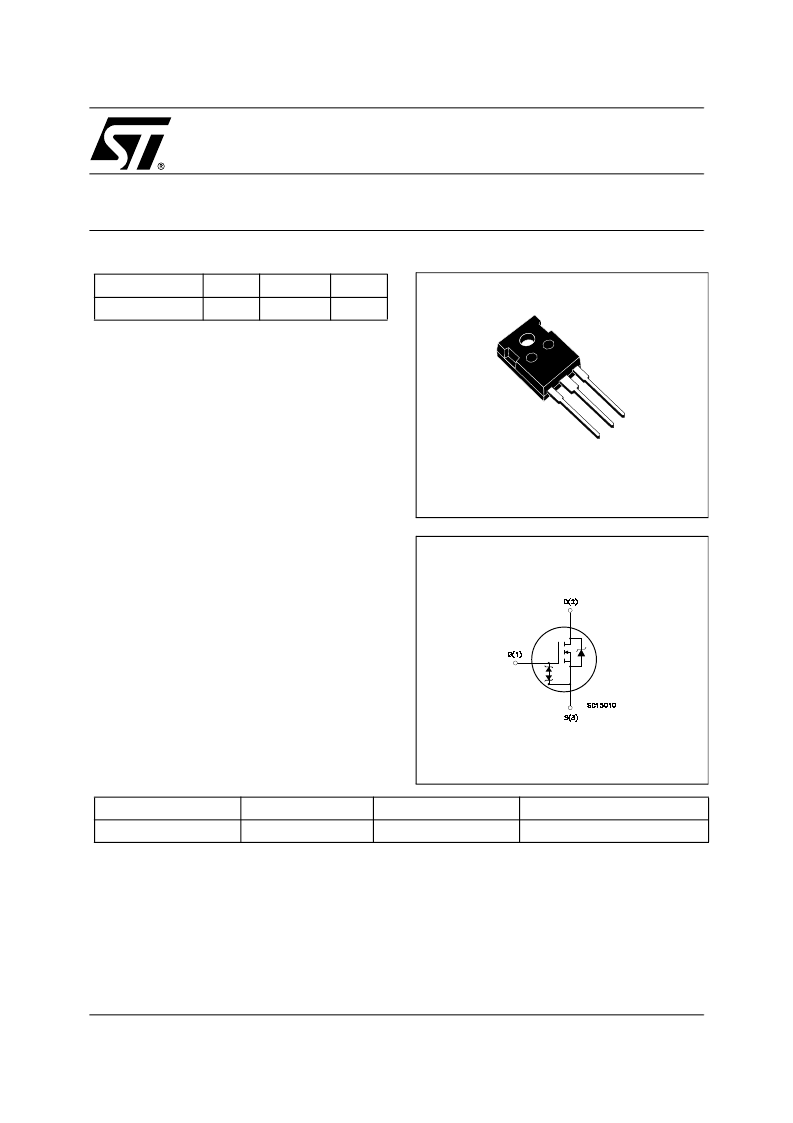

1/9
February 2005
STW26NM60
N-CHANNEL 600V - 0.125
- 30A TO-247
MDmesh MOSFET
Table 1: General Features
I
TYPICAL R
DS
(on) = 0.125
I
HIGH dv/dt AND AVALANCHE CAPABILITIES
I
IMPROVED ESD CAPABILITY
I
LOW INPUT CAPACITANCE AND GATE
CHARGE
I
LOW GATE INPUT RESISTANCE
DESCRIPTION
The MDmesh
is a new revolutionary MOSFET
technology that associates the Multiple Drain pro-
cess with the Company’s PowerMESH horizon-
tal layout. The resulting product has an
outstanding low on-resistance, impressively high
dv/dt and excellent avalanche characteristics. The
adoption of the Company’s proprietary strip tech-
nique yields overall dynamic performance that is
significantly better than that of similar competi-
tion’s products.
APPLICATIONS
The MDmesh family is very suitable for increas-
ing power density of high voltage converters allow-
ing system miniaturization and higher efficiencies.
Table 2: Order Codes
Figure 1: Package
Figure 2: Internal Schematic Diagram
TYPE
V
DSS
R
DS(on)
I
D
STW26NM60
600 V
< 0.135
30 A
TO-247
1
2
3
SALES TYPE
MARKING
PACKAGE
PACKAGING
STW26NM60
W26NM60
TO-247
TUBE
Rev. 5
