w
(8 + 8) Bit Output 16-bit CIS/CCD AFE/Digitiser
WM8198
DESCRIPTION
WOLFSON MICROELECTRONICS plc
w :: www.wolfsonmicro.com
Production Data, June 2004, Rev 4.0
Copyright
2002 Wolfson Microelectronics plc
The WM8198 is a 16-bit analogue front end/digitiser IC
which processes and digitises the analogue output signals
from CCD sensors or Contact Image Sensors (CIS) at pixel
sample rates of up to 6MSPS.
The device includes three analogue signal processing
channels each of which contains Reset Level Clamping,
Correlated Double Sampling and Programmable Gain and
Offset adjust functions. Three multiplexers allow single
channel processing. The output from each of these
channels is time multiplexed into a single high-speed 16-bit
Analogue to Digital Converter. The digital output data is
available in 8 or 4-bit wide multiplexed format.
An internal 4-bit DAC is supplied for internal reference level
generation. This may be used during CDS to reference CIS
signals or during Reset Level Clamping to clamp CCD
signals. An external reference level may also be supplied.
ADC references are generated internally, ensuring optimum
performance from the device.
Using an analogue supply voltage of 5V and a digital
interface supply of either 5V or 3.3V, the WM8198 typically
only consumes 195mW when operating from a single
5V supply.
FEATURES
16-bit ADC
6MSPS conversion rate
Low power – 212mW typical
5V single supply or 5V/3.3V dual supply operation
Single or 3 channel operation
Correlated double sampling
Dual Range Programmable Gain Amplifier (9-bit resolution)
Programmable offset adjust (8-bit resolution)
Programmable clamp voltage
8 or 4-bit wide multiplexed data output formats
Internally generated voltage references
28-pin SSOP package
Serial control interface
APPLICATIONS
Flatbed and sheetfeed scanners
USB compatible scanners
Multi-function peripherals
High-performance CCD sensor interface

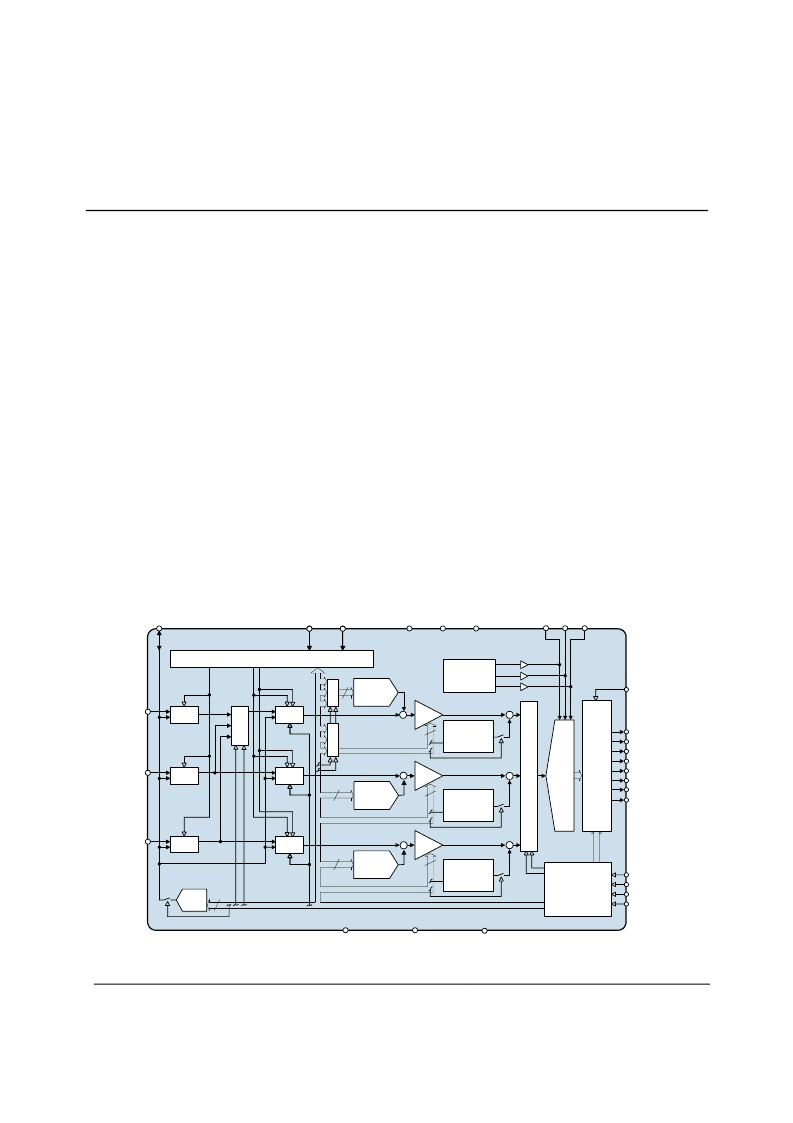

BLOCK DIAGRAM
RINP
DATA
I/O
PORT
SEN
SCK
VSMP
MCLK
VRLC/VBIAS
SDI
RLC/ACYC
DVDD2
TIMING CONTROL
CL
RLC
V
S
R
S
BINP
GINP
VRX
VRT
OEB
M
U
X
VRB
RLC
RLC
CDS
CDS
CDS
4
CONFIGURABLE
SERIAL
CONTROL
INTERFACE
ADC
AGND1
DGND
AVDD
DVDD1
OP[0]
OP[1]
OP[2]
OP[3]
OP[4]
OP[5]
OP[6]
OP[7]/SDO
AGND2
M
U
X
VREF/BIAS
M
U
X
R
G
B
M
U
X
R
G
B
+
PGA
I/P SIGNAL
POLARITY
ADJUST
9
8
PGA
9
8
PGA
9
8
+
+
+
+
+
I/P SIGNAL
POLARITY
ADJUST
I/P SIGNAL
POLARITY
ADJUST
OFFSET
DAC
OFFSET
DAC
OFFSET
DAC
RLC
DAC
w
WM8198
