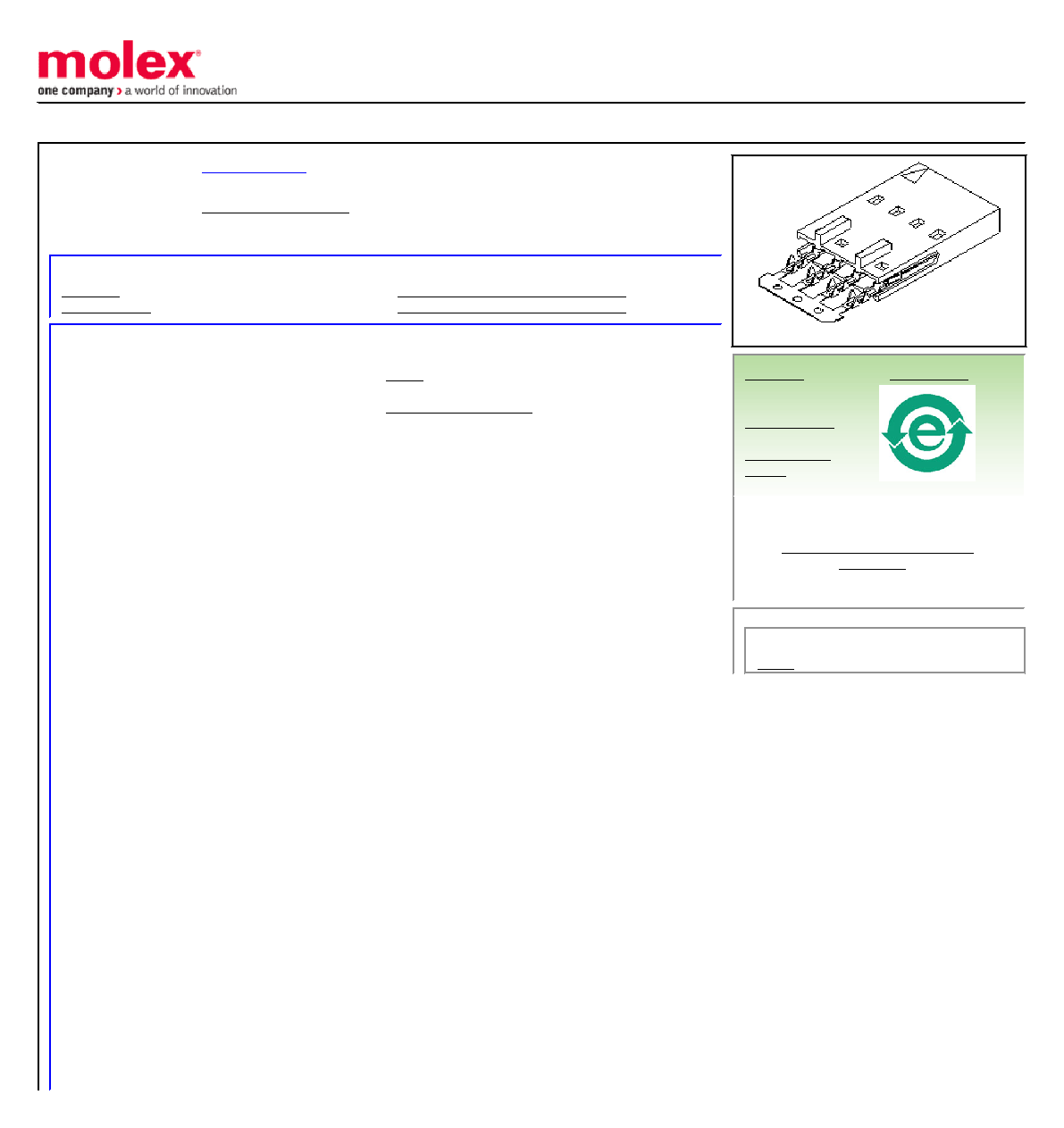

This document was generated on 12/07/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
2.54mm (.100") Pitch SL FFC/FPC Connector - Single Row Male Version D, 22
Circuits
Documents:
General
Product Family
FFC/FPC Connectors
Series
Comments
Male
Overview
Product Name
SL
Physical
Circuits (Loaded)
22
Color - Resin
Black
Contact Position
N/A
Durability (mating cycles max)
25
Entry Angle
Vertical
Flammability
94V-0
Material - Metal
Phosphor Bronze
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Material - Resin
Polyester Alloy
Number of Rows
1
Orientation
Vertical
PCB Locator
No
PCB Retention
None
Packaging Type
Tube
Pitch - Mating Interface (in)
0.100 In
Pitch - Mating Interface (mm)
2.54 mm
Plating min: Mating (in)
150
Plating min: Mating (m)
3.75
Plating min: Termination (in)
150
Plating min: Termination (m)
3.75
Polarized to PCB
No
Stackable
Yes
Surface Mount Compatible (SMC)
N/A
Temperature Range - Operating
-40°C to +105°C
Termination Interface: Style
IDT or Pierce
Wire/Cable Type
FFC/FPC
Electrical
CSA
LR19980
Current - Maximum
2A
UL
E29179
Voltage - Maximum
250V
Material Info
Reference - Drawing Numbers
Product Specification
PS-70431
Sales Drawing
SDA-70431-****
Sales Drawing
SDA-70431-0071-0094
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
70431 Series
