| 型號： | 0365630007 |
| 廠商： | MOLEX INC |
| 元件分類： | 電源輸入模塊 |
| 英文描述： | 4 CONTACT(S), MALE, POWER CONNECTOR, SOLDER |
| 文件頁數： | 1/2頁 |
| 文件大小： | 23K |
| 代理商： | 0365630007 |

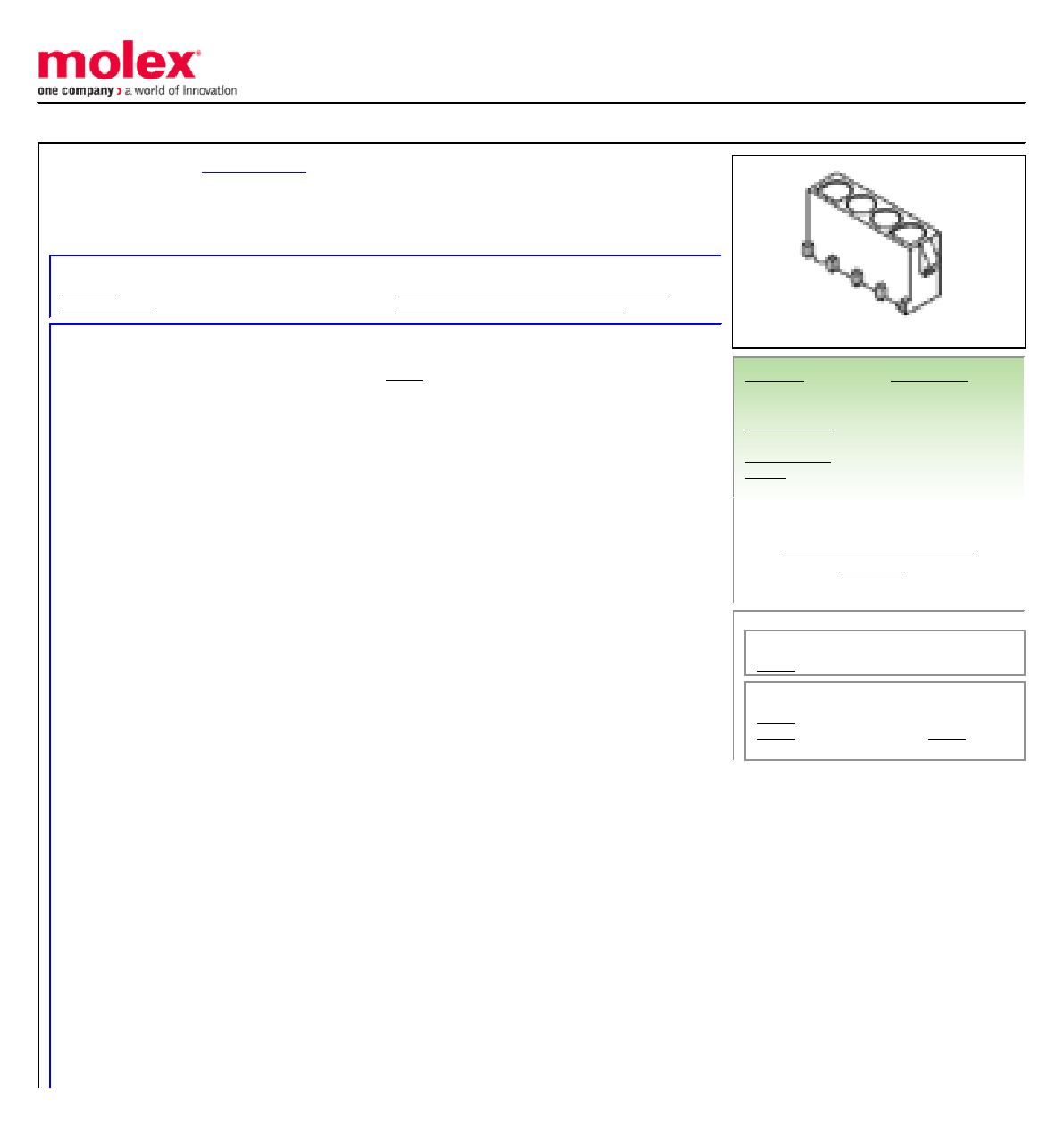

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
6.35mm (.250) Pitch MLX Power Connector Header, Vertical, without Plastic
Polarizing Peg, 4 Circuits, Polyester 94V-0, Tin Lead (Pb/Sn) Plating, White
Documents:
General
Product Family
PCB Headers
Series
Application
Wire-to-Board
Comments
Without Compliant / Polarization Peg
Overview
MLX
Product Name
MLX
Physical
Breakaway
No
Circuits (Loaded)
4
Circuits (maximum)
4
Color - Resin
White
Durability (mating cycles max)
50
First Mate / Last Break
No
Glow-Wire Compliant
No
Guide to Mating Part
Yes
Keying to Mating Part
Yes
Lock to Mating Part
Yes
Material - Metal
Brass
Material - Plating Mating
Tin-Lead
Material - Plating Termination
Nickel
Material - Resin
Polyester
Number of Rows
1
Orientation
Vertical
PC Tail Length (in)
0.170 In
PC Tail Length (mm)
4.30 mm
PCB Locator
No
PCB Retention
None
PCB Thickness Recommended (in)
0.062 In
PCB Thickness Recommended (mm)
1.57 mm
Packaging Type
Bag
Pitch - Mating Interface (in)
0.250 In
Pitch - Mating Interface (mm)
6.35 mm
Pitch - Term. Interface (in)
0.250 In
Pitch - Term. Interface (mm)
6.35 mm
Plating min: Mating (in)
60
Plating min: Mating (m)
15.25
Plating min: Termination (in)
50
Plating min: Termination (m)
1.27
Polarized to Mating Part
Yes
Polarized to PCB
No
Shrouded
Fully
Stackable
No
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
-55°C to +105°C
Termination Interface: Style
Through Hole
Series image - Reference only
Compliance Status
Not Reviewed
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
36563 Series
Mates With
42021 MLX Power Crimp Housing Plug.
Crimp Terminal
