參數資料
| 型號： | 0366380001 |
| 廠商： | MOLEX INC |
| 元件分類： | 電源輸入模塊 |
| 英文描述： | 72 CONTACT(S), MALE, POWER CONNECTOR, SOLDER |
| 封裝： | HALOGEN FREE AND ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 35K |
| 代理商： | 0366380001 |

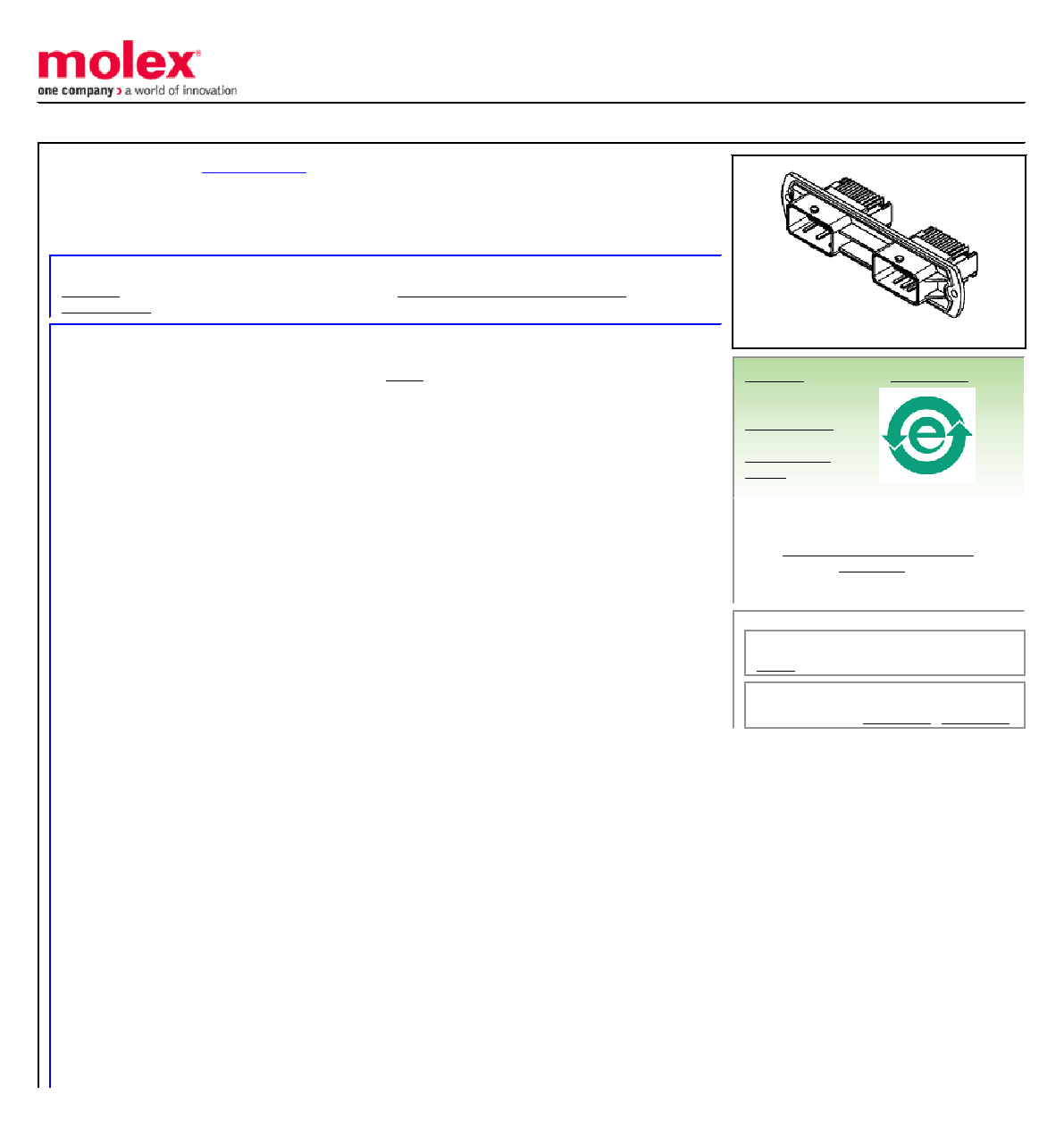

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
2.50mm (.098"), 3.50mm (.138") CMC Header, Right Angle, 96 Position, 72 loaded, 2
Port, Black and Brown, Lead-free
Documents:
General
Product Family
PCB Headers
Series
Application
Wire-to-Board
Overview
CMC Connectors
Product Name
CMC
Physical
Breakaway
No
Circuits (Loaded)
72
Circuits (maximum)
96
Circuits Detail
12 x 1.5mm & 60 x 0.635mm terminals
Color - Resin
Black
Durability (mating cycles max)
50
First Mate / Last Break
Yes
Glow-Wire Compliant
No
Guide to Mating Part
Yes
Keying to Mating Part
Yes
Lock to Mating Part
No
Mated Height (in)
0.264 In
Mated Height (mm)
6.70 mm
Material - Metal
Brass
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Material - Resin
Polyester
Number of Rows
4
Orientation
Right Angle
PC Tail Length (in)
0.114 In
PC Tail Length (mm)
2.90 mm
PCB Locator
No
PCB Retention
None
PCB Thickness Recommended (in)
0.031 In
PCB Thickness Recommended (in)
0.063 In
PCB Thickness Recommended (mm)
0.80 mm
PCB Thickness Recommended (mm)
1.60 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.098 In
Pitch - Mating Interface (in)
0.138 In
Pitch - Mating Interface (in)
0.146 In
Pitch - Mating Interface (mm)
2.50 mm
Pitch - Mating Interface (mm)
3.50 mm
Pitch - Mating Interface (mm)
3.70 mm
Pitch - Term. Interface (in)
0.098 In
Pitch - Term. Interface (in)
0.138 In
Pitch - Term. Interface (in)
0.146 In
Pitch - Term. Interface (mm)
2.50 mm
Pitch - Term. Interface (mm)
3.50 mm
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
36638 Series
Mates With
