| 型號： | 0471511112 |
| 廠商： | MOLEX INC |
| 元件分類： | 電信和以太網連接器 |
| 英文描述： | 19 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 35K |
| 代理商： | 0471511112 |

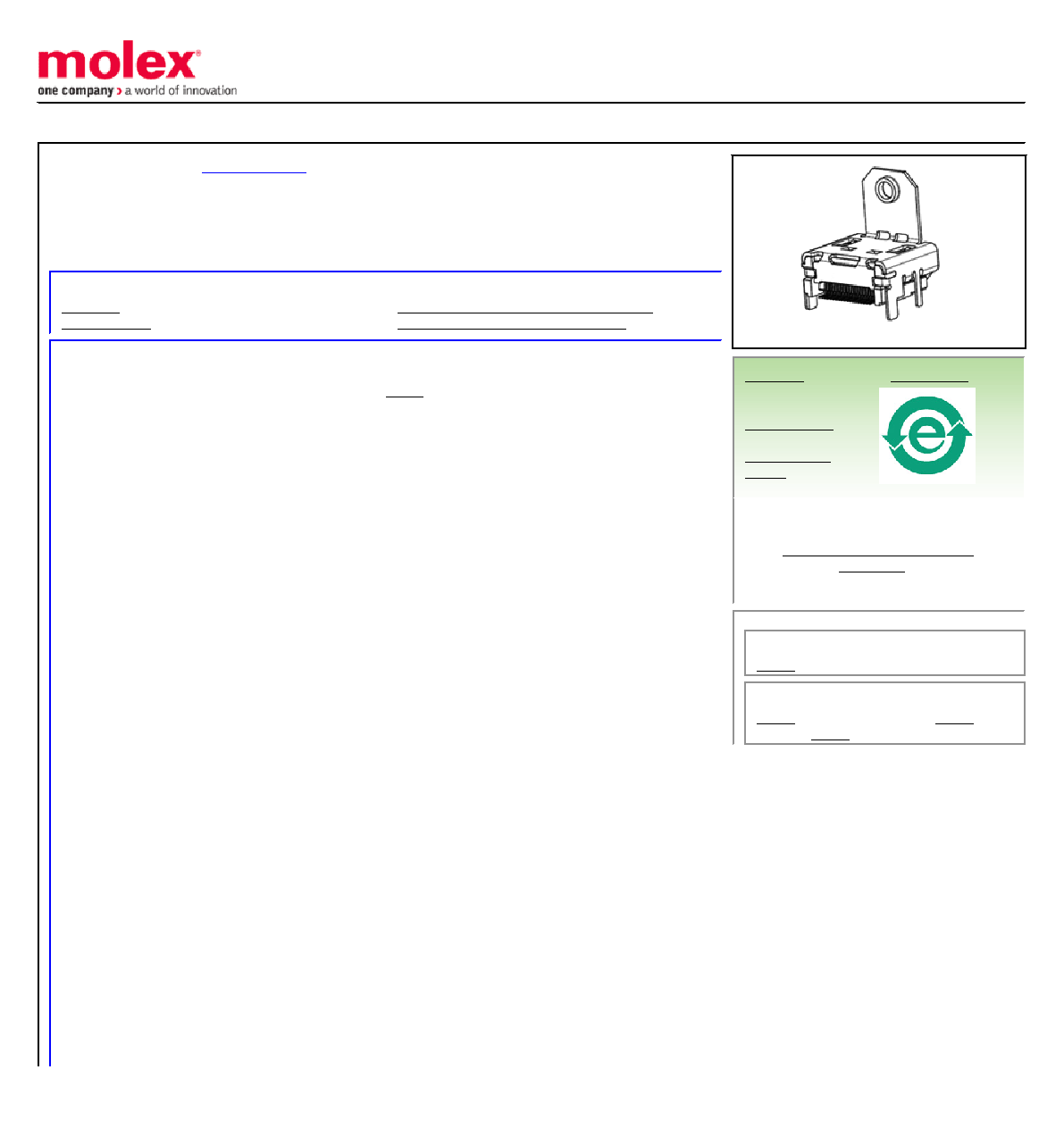

This document was generated on 11/10/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
1.00mm (.039") Pitch HDMI* Receptacle, Right Angle, 0.76m (30") Gold (Au) Plating,
Front Solder Tab Length 1.45mm (.057"), Shell Nickel (Ni) Plated, with Flange and
Back Cover, Natural Housing, Tray Packaging, Lead Free
Documents:
General
Product Family
I/O Connectors
Series
Application
Wire-to-Board
Component Type
Receptacle
Overview
HDMI High Definition Multimedia Interface
Product Name
HDMI
Type
N/A
Physical
Boot Color
N/A
Circuits (Loaded)
19
Color - Resin
Natural
Gender
Male
Keying to Mating Part
Yes
Lock to Mating Part
Yes
Material - Metal
Copper Alloy
Material - Plating Mating
Gold
Material - Plating Termination
Tin-Bismuth
Number of Rows
2
Orientation
Right Angle
PCB Locator
No
PCB Retention
Yes
Packaging Type
Tray
Panel Mount
With Flange
Pitch - Mating Interface (in)
0.039 In
Pitch - Mating Interface (mm)
1.00 mm
Pitch - Term. Interface (in)
0.039 In
Pitch - Term. Interface (mm)
1.00 mm
Plating min: Mating (in)
30
Plating min: Mating (m)
0.76
Plating min: Termination (in)
40
Plating min: Termination (m)
1
Polarized to Mating Part
Yes
Polarized to PCB
Yes
Ports
1
Temperature Range - Operating
-20°C to +85°C
Termination Interface: Style
Surface Mount
Waterproof / Dustproof
No
Wire Size AWG
N/A
Electrical
Current - Maximum
.5A
Shielded
Yes
Voltage - Maximum
40V DC
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
47151 Series
Mates With
Adapter, 88767 HDMI Adapter
