參數資料
| 型號： | 0504467125 |
| 廠商： | MOLEX INC |
| 元件分類： | 終端 |
| 英文描述： | 192.6 mm2, RING TERMINAL |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/1頁 |
| 文件大小： | 28K |
| 代理商： | 0504467125 |

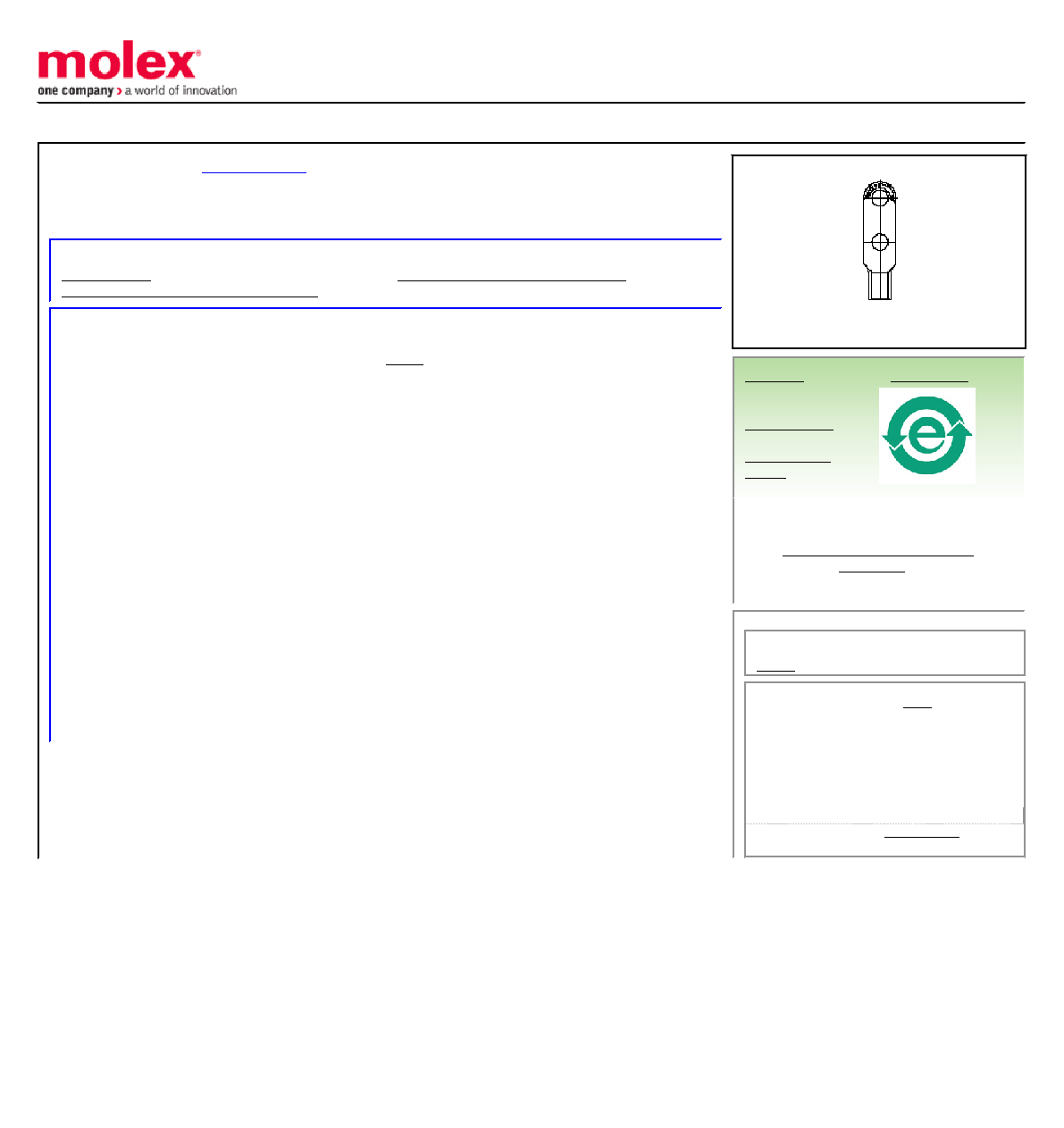

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
Ring Tongue Double Hole Terminal for 300 - 350MCM AWG, Closed Uninsulated
Brazed Barrel, Stud Size M14, Oxygen-Free Copper, Length 111.00mm (4.370")
Documents:
General
Product Family
Ring and Spade Terminals
Series
Mil-Spec
N/A
Product Name
RD (Double-Hole)
Type
Ring
Physical
Barrel Type
Closed - Brazed
Insulation
None
Material - Plating Mating
Tin
Packaging Type
Bag
Plating min: Mating (in)
40
Plating min: Mating (m)
1
Plating min: Termination (in)
40
Plating min: Termination (m)
1
Stud Size
M14
Termination Interface: Style
Crimp or Compression
Wire Size AWG
300MCM
Wire Size AWG
350MCM
Wire Size mm
152.05 - 192.6
Material Info
Reference - Drawing Numbers
Product Specification
PS-50442-001
Sales Drawing
SD-50446-001
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
50446 Series
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Japan
Description
Product #
Tool Kit For
57343-9012
This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
