Dimensions are shown in mm (inch)

Dimensions subject to change

128

CONTACT

BODY ASSEMBLY

RF Coaxial Connectors

Assembly Instructions

AI-770

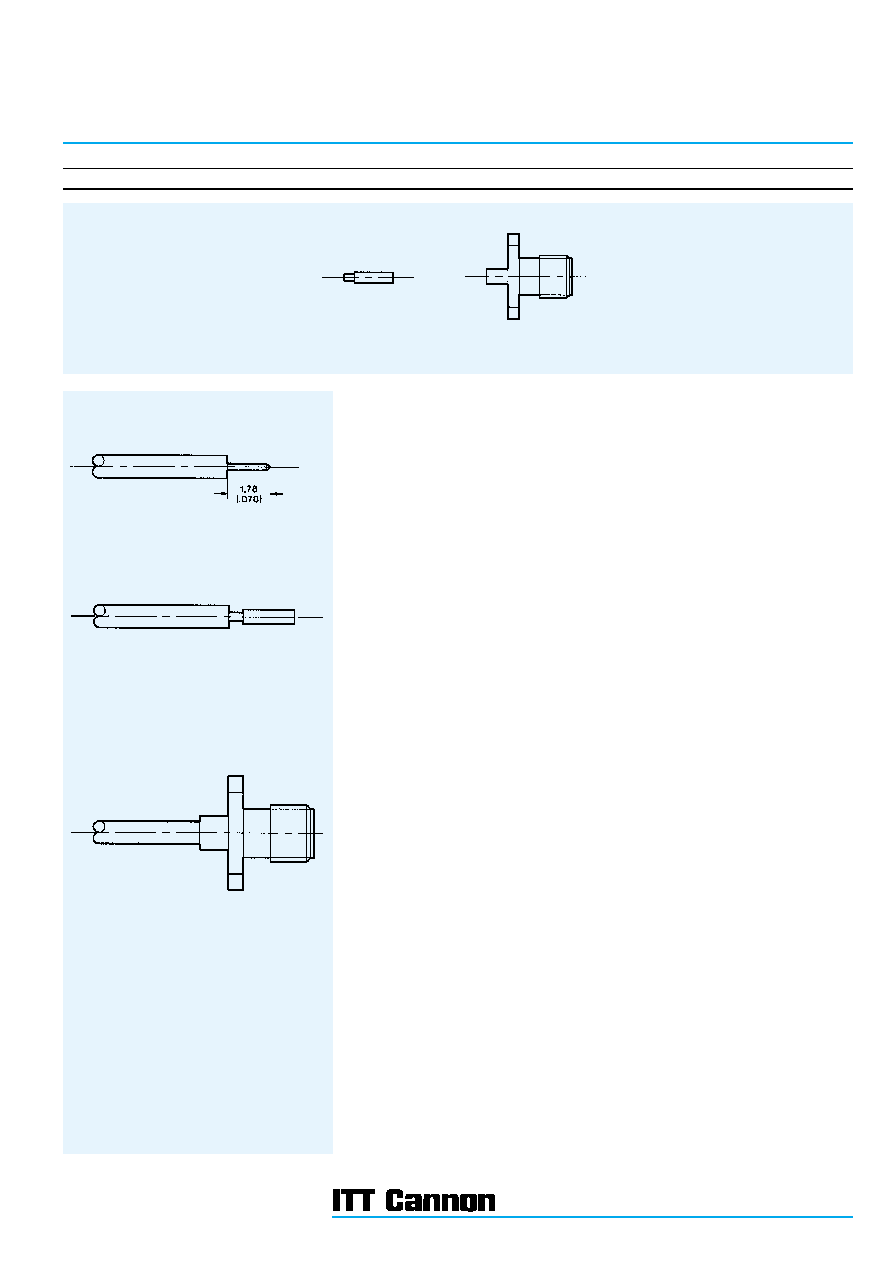

SMA Flange Mount Connectors, Direct Solder Type for Semi-Rigid Cable

1. Strip cable to dimension shown, do not nick inner conductor.

2. Insert contact over inner conductor and push until it bottoms against the cable dielectric as shown.

Solder contact to inner conductor through solder hole. Trim excess of cable dielectric, if required.

3. Slide contact and cable into rear of body assembly until it seats firmly against insulator in body.

Solder cable to body applying sufficient heat to body for solder to flow, but using minimum heat

cycle.
