Dimensions are shown in mm (inch)

Dimensions subject to change

137

Assy Insts

RF Coaxial Connectors

Assembly Instructions

BBAI-1228

MPC Straight Connectors, Crimp Type for Braided Cable

CRIMP FERRULE

CONTACT

BODY ASSEMBLY

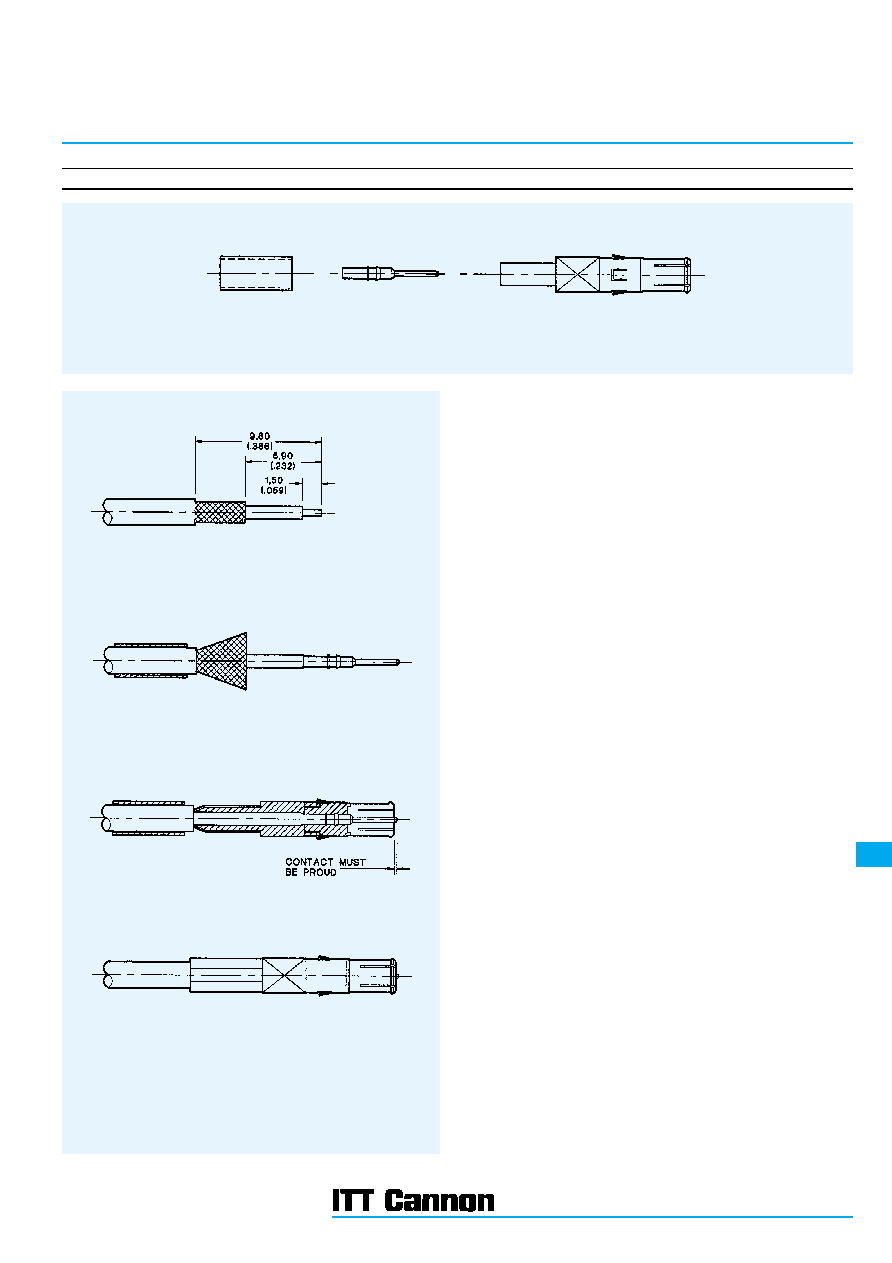

1. Trim cable to dimensions shown being careful not to nick or damage

braids or center conductor. Twist center conductor filaments together.

2. Slide ferrule over cable. Slide contact over center conductor and crimp

using ITT Cannon Tool CT120090-53 and Positioner 077350-1044. Flare

braids as shown.

3. Slide rear end of body assembly over contact and cable and under braids

until contact butts inside insulator, with full contact radius just protruding

from front of insert, as shown.

4. Slide ferrule over braids until it butts against insert square flange and

crimp using ITT Cannon Tool T1025/- and die set T1025/3.
