| 型號： | 0555600807 |
| 廠商： | MOLEX INC |
| 元件分類： | 電路板相疊連接器 |
| 英文描述： | 80 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大?。?/td> | 33K |
| 代理商： | 0555600807 |

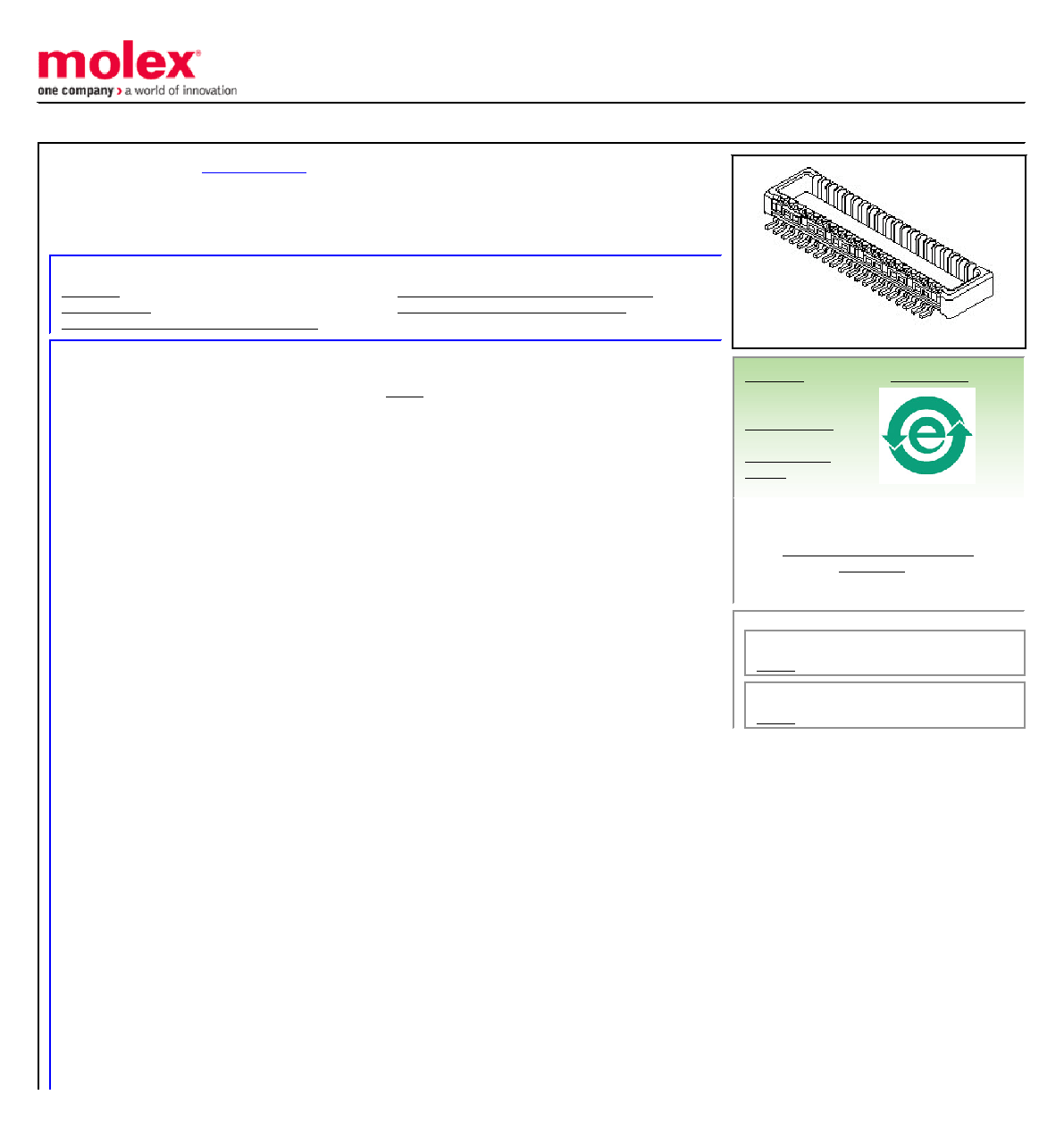

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
0.50mm (.020") Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 1.50mm
(.059") Stack Height, 80 Circuits
Documents:
General
Product Family
PCB Headers
Series
Application
Board-to-Board
Overview
SlimStack™
Product Name
SlimStack
Physical
Breakaway
No
Circuits (Loaded)
80
Circuits (maximum)
80
First Mate / Last Break
No
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
Yes
Mated Height (in)
0.059 In
Mated Height (mm)
1.50 mm
Material - Metal
Brass
Material - Plating Mating
Gold
Material - Plating Termination
Gold
Number of Rows
2
Orientation
Vertical
PC Tail Length (in)
0.029 In
PC Tail Length (mm)
0.74 mm
PCB Locator
No
PCB Retention
None
Packaging Type
Embossed Tape on Reel
Pitch - Mating Interface (in)
0.020 In
Pitch - Mating Interface (mm)
0.50 mm
Plating min: Mating (in)
10
Plating min: Mating (m)
0.25
Plating min: Termination (in)
4
Plating min: Termination (m)
0.1
Shrouded
Fully
Stackable
No
Temperature Range - Operating
-25°C to +85°C
Termination Interface: Style
Surface Mount
Electrical
Current - Maximum
0.5A
Voltage - Maximum
50V
Material Info
Reference - Drawing Numbers
Product Specification
PS-54722-009
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
55560 Series
Mates With
54722 PCB Receptacle
