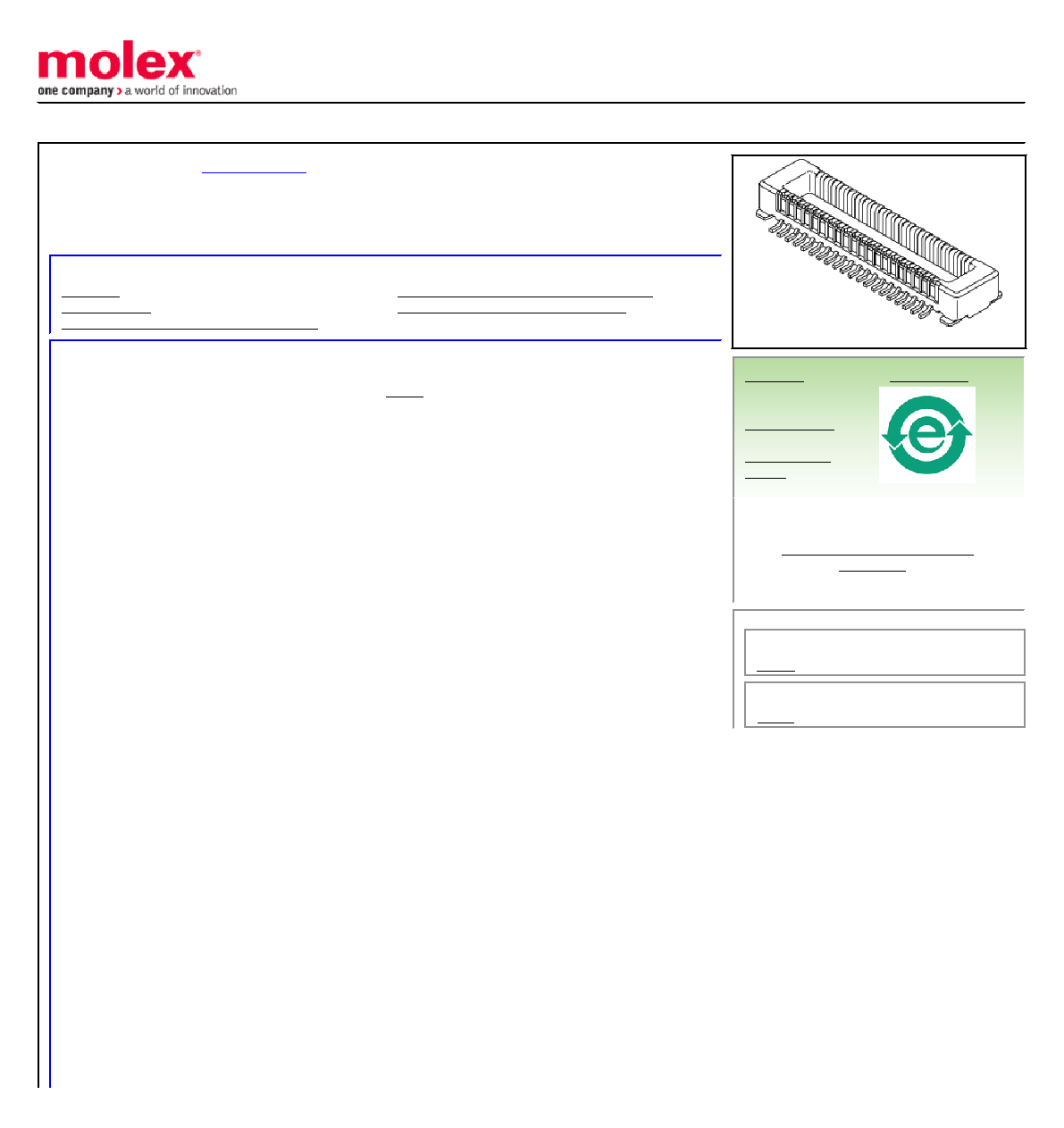

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
0.50mm (.020") Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 2.00mm
(.079") Stack Height, with Solder Tab, 20 Circuits, Lead-free
Documents:
General
Product Family
PCB Headers
Series
Application
Board-to-Board
Comments
Solder Tab Plating: Lead-free, Tin
Overview
SlimStack™
Product Name
SlimStack
Physical
Breakaway
No
Circuits (Loaded)
20
Circuits (maximum)
20
Color - Resin
Black
Durability (mating cycles max)
30
First Mate / Last Break
No
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
Yes
Mated Height (in)
0.079 In
Mated Height (mm)
2.00 mm
Material - Metal
Brass
Material - Plating Mating
Gold
Material - Plating Termination
Gold
Material - Resin
High Temperature Thermoplastic
Number of Rows
2
Orientation
Vertical
PC Tail Length (in)
0.000 In
PC Tail Length (mm)
0.00 mm
PCB Locator
No
PCB Retention
Yes
PCB Thickness Recommended (in)
0.000 In
PCB Thickness Recommended (mm)
0.00 mm
Packaging Type
Embossed Tape on Reel
Pitch - Mating Interface (in)
0.020 In
Pitch - Mating Interface (mm)
0.50 mm
Pitch - Term. Interface (in)
0.020 In
Pitch - Term. Interface (mm)
0.50 mm
Plating min: Mating (in)
10
Plating min: Mating (m)
0.25
Plating min: Termination (in)
4
Plating min: Termination (m)
0.1
Polarized to Mating Part
No
Polarized to PCB
No
Shrouded
No
Stackable
No
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
55650 Series
Mates With
54363 PCB Receptacle
