2mm FB
Amphenol

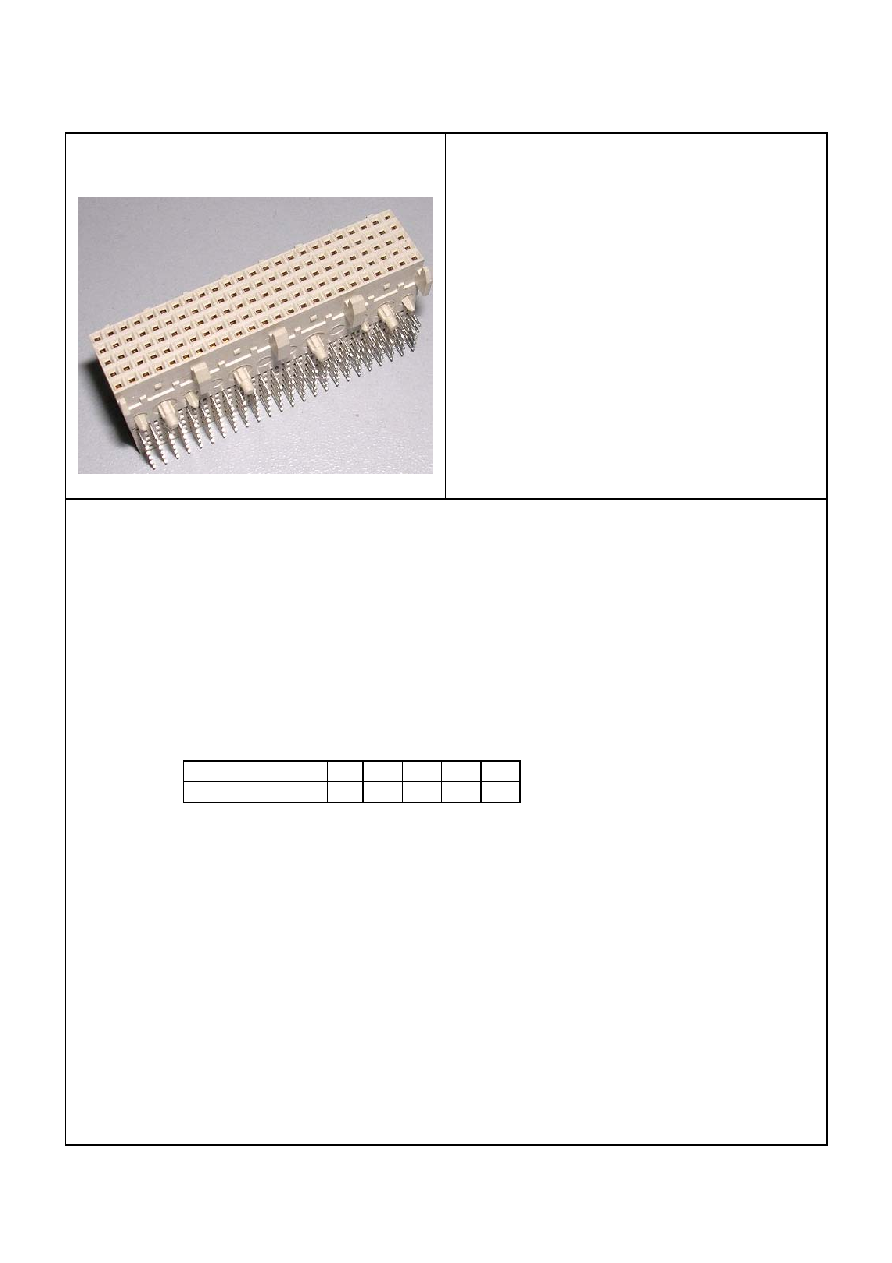

Part Number: 2021-AS6P-5XX-0X00
5 row Signal Female Right-Angle
Press- fit
- In accordance to IEC 1076-4-104
- 5 Rows and 2mm pitch permit high
signal density
- Modular design guarantees flexibility
- Compliant press-fit section with “eye
of needle” provides an optimum pin
stability and a gastight
- Parallel board applications
- Large hole tolerance 0.65-0.80mm
- RoHS compliant
1. Material:
A. Housing: Glass-filled LCP UL94 V-0, natural color
B. Cover: Class-filled LCP UL94 V-0, natural color
C. Contact: Phosphor bronze
2. Plating:
Mating area: 0.76 um Min. Au
Press-fit area: 0.6-2.0 um pure matte Tin
Under layer: 1.27-2.54 um Ni
3. Electrical characteristics:
Contact resistance:
Row
A
B
C
D
E
Milliohms Max.
30 40
45
50
55
Voltage rating: 100V AC
Current rating: 1A
Insulation Resistance: 1000 M ohms Min.
Withstanding voltage: 1000 V rms.
4. Mechanical characteristics:
Mating force: 0.45 N Max. per contact
Un-mating force: 0.15 N Min. per contact
Mechanical lifetime: 250 mating cycles Min.
5. Recommended hole diameter: 0.65-0.80mm
6. Packing
Type: Tray
Quantity per packing unit: See Tab. 1
