| 型號： | 203162 |
| 廠商： | ERNI ELECTRONICS INC |
| 元件分類： | 電信和以太網連接器 |
| 英文描述： | 64 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, JACK |
| 文件頁數： | 1/2頁 |
| 文件大小： | 51K |
| 代理商： | 203162 |

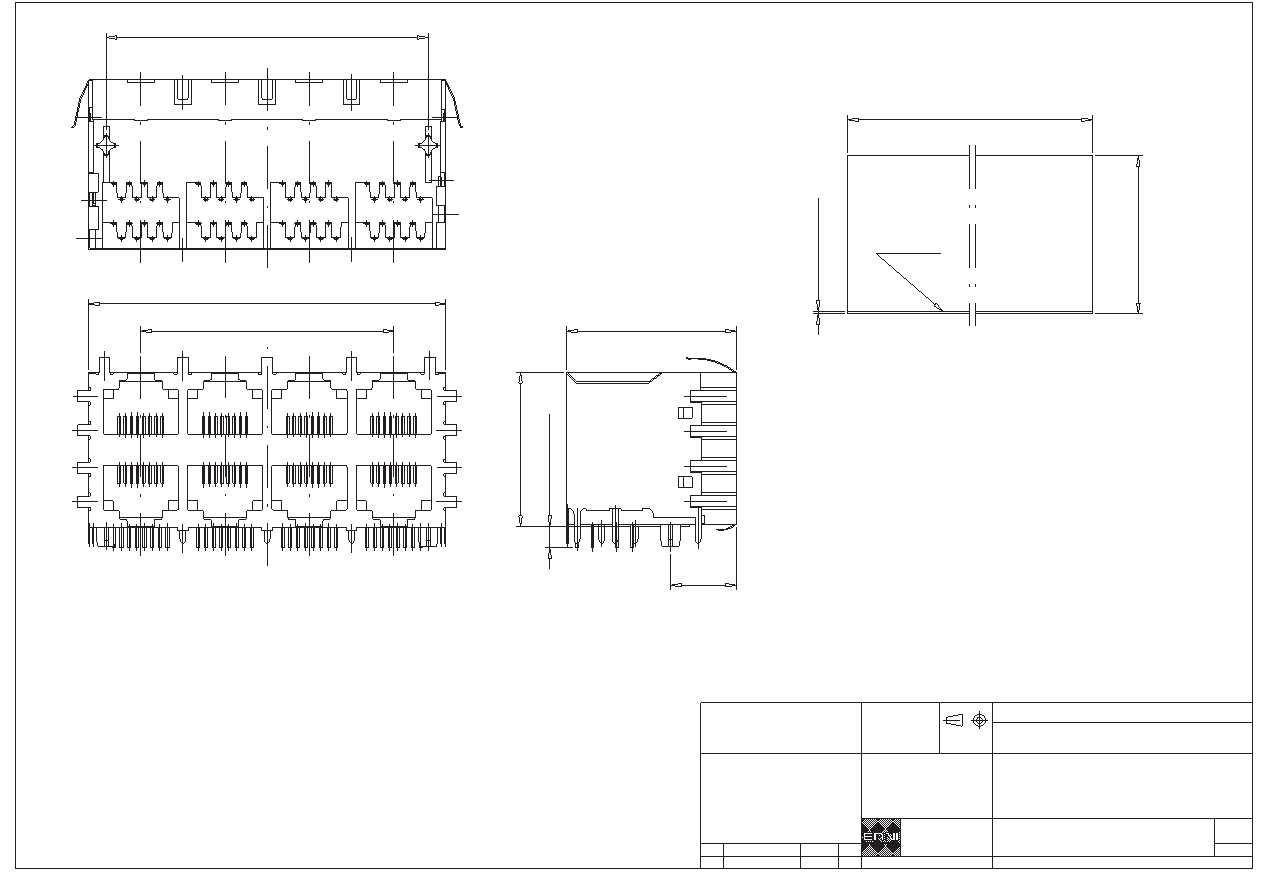

All Dimensions
8
1
8
1
8
1
8
1
8
1
8
1
8
1
53.34
±0.13 [2.100±.005]
59.17 [2.330]
3 x 13.97 [.550] = (41.91 [1.650])
25.50
[1.004]
MAX
3.50
±0.30
[.138
±.012]
10.89 [.429]
28.50 [1.122] MAX
EMPFOHLENER FRONTPLATTEN AUSSCHNITT
RECOMMENDED PANEL
CUTOUT
TOP OF PCB
LP
26.16
[1.030]
60.19
±0.20 [2.370±.012]
0.38
±0.10
[.015
±.004]
NOTE 1: PANEL GROUND FLANGES TOP, BOTTOM, SIDES (GF9)
NOTE 2: GROUNDING PIN BETWEEN EVERY PORT [T]
NOTE 3. 3 SIDE GROUND TABS EACH SIDE; STAGGERED (S1)
Date
Rev.
in mm
ERNI Components
CHESTER, VA U.S.A.
Group/Type
[in]
Scale
Designation
Tolerances
Consider
pr
otection
memo
fr
om
DIN
34
All rights reserved.
Only for information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
Subject to modification without
prior notice.
Drawing will not be updated.
Information:
HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK
CURRENT/VOLTAGE: 150 Vac AT 1.5 AMPS MAX AT 25C
DIELECTRIC WITHSTANDING VOLTAGE: 1000 Vrms MIN, 60Hz
INSULATION RESISTANCE: 500 MEGAOHMS MIN
CONTACT RESISTANCE: 30 MILLIOHMS MAX
ELECTRICAL CHARACTERISTICS
OPERATING TEMPERATURE: 0C TO 70C
REAR SHIELD: Cu ALLOY, PLATED WITH Ni
INNER SHIELD: Cu ALLOY, PLATED WITH Sn
MATERIALS AND FINISH
FRONT SHIELD: STAINLESS STEEL
TERMINAL FINISH: Sn
MECHANICAL CHARACTERISTICS
DURABILITY: 1000 MATING CYCLES
CONTACT FINISH: Au, 0.8
m [30 in]
CONTACTS: PHOSPHOR BRONZE
2:1
MAXMJ
MOD JACK - MJIM
8C8T, 2X4, INTEGRATED MAGNETICS
203162
