| 型號： | 203172 |
| 廠商： | ERNI ELECTRONICS INC |
| 元件分類： | 電信和以太網連接器 |
| 英文描述： | 112 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, JACK |
| 文件頁數： | 1/1頁 |
| 文件大小： | 42K |
| 代理商： | 203172 |
[in]
04JUN03
d
-
2:1
-
MJIM

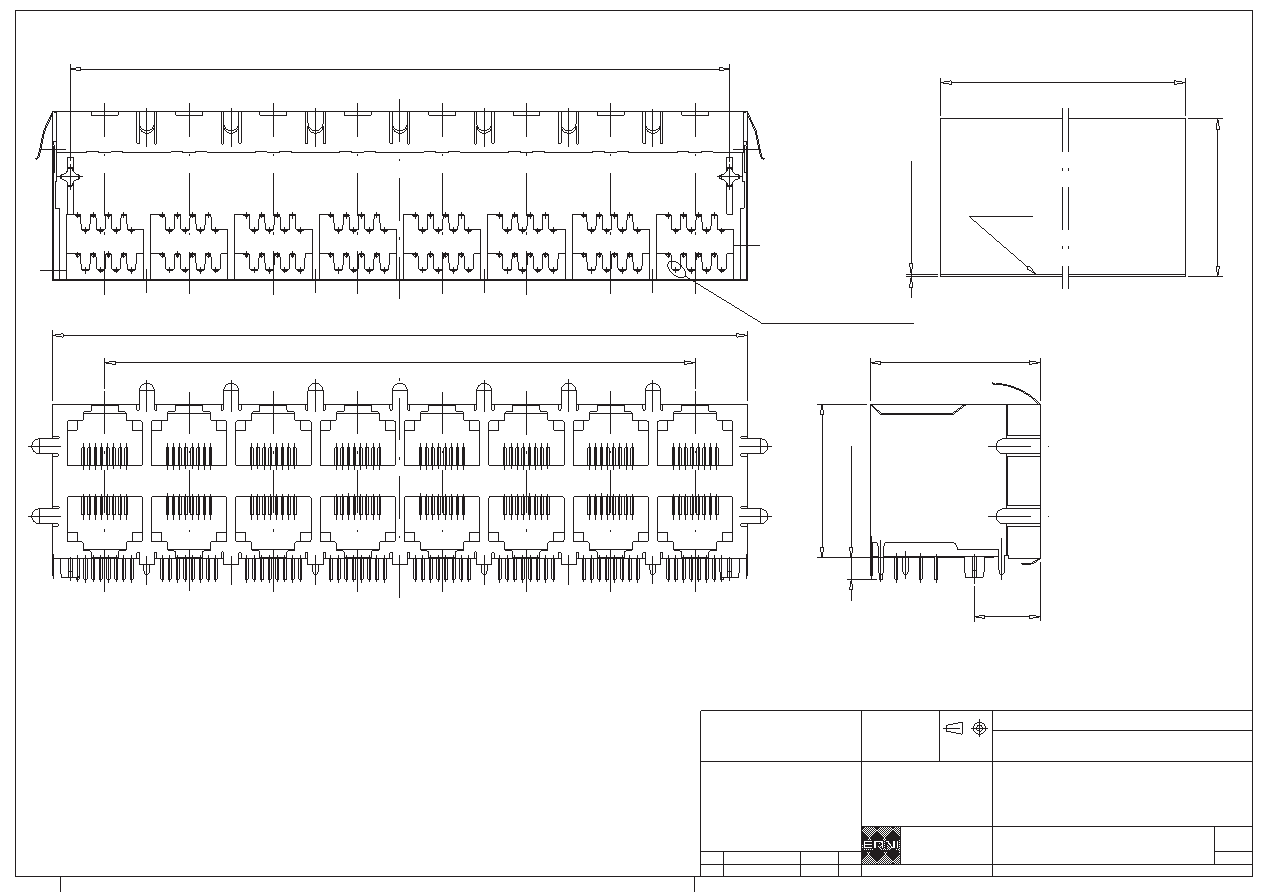

MOD JACK - MJIM
-
8C7T, 2X8, INTEGRATED MAGNETICS
203172
All Dimensions
8
1
8
1
8
1
8
1
8
1
8
1
8
1
8
1
8
1
8
1
8
1
8
1
8
1
#7 TERMINALS REMOVED
ANSCHLUSS ABGESCHNITTEN
109.22
±0.13 [4.300±.005]
115.06 [4.530]
7 x 13.97 [.550] = (97.79 [3.850])
28.50 [1.122] MAX
25.50
[1.004]
MAX
3.50
±0.30
[.138
±.012]
10.89 [.429]
EMPFOHLENER FRONTPLATTEN AUSSCHNITT
RECOMMENDED PANEL
CUTOUT
TOP OF PCB
LP
26.16
[1.030]
116.16
±0.20 [4.573±.007]
0.38
±0.10
[.015
±.004]
NOTE 1: PANEL GROUND FLANGES TOP, BOTTOM, SIDES (GF9)
NOTE 2: GROUNDING PIN BETWEEN EVERY OTHER PORT [P]
NOTE 3: 2 SIDE GROUND TABS EACH SIDE; STAGGERED ; ASSEMBLED WITH-OUT INNER SHIELD (S3)
TERMINAL FINISH: SnPb
MECHANICAL CHARACTERISTICS
DURABILITY: 1000 MATING CYCLES
CONTACT RESISTANCE: 30 MILLIOHMS MAX
ELECTRICAL CHARACTERISTICS
CONTACT FINISH: Au, 0.8
m [30 in], OVER Ni
HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK
MATERIALS AND FINISH
CONTACTS: PHOSPHOR BRONZE
OPERATING TEMPERATURE: 0C TO 70C
SHIELD: STAINLESS STEEL
Date
Rev.
in mm
ERNI Components
CHESTER, VA U.S.A.
Group/Type
[in]
I
Scale
Designation
Tolerances
Consider
pr
otection
memo
fr
om
DIN
34
All rights reserved.
Only for information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
Subject to modification without
prior notice.
Drawing will not be updated.
Information:
SCHEMATIC NUMBER: M3D02
