- 您現在的位置：買賣IC網 > PDF目錄153712 > 203166 (ERNI ELECTRONICS INC) 96 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SOLDER, JACK PDF資料下載
參數資料
| 型號： | 203166 |
| 廠商： | ERNI ELECTRONICS INC |
| 元件分類： | 電信和以太網連接器 |
| 英文描述： | 96 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SOLDER, JACK |
| 文件頁數： | 1/2頁 |
| 文件大小： | 60K |
| 代理商： | 203166 |
All Dimensions
8
1
8
1
8
1
8
1
8
1
8
1
8
1
8
1
8
1
81.28
±0.13 [3.200±.005]
87.13 [3.430]
3 x 13.97 [.550] = (69.85 [2.750])
25.50
[1.004]
MAX
3.50
±0.30
[.138
±.012]
10.89 [.429]
28.50 [1.122] MAX
OPERATING TEMPERATURE: 0C TO 70C
ELECTRICAL CHARACTERISTICS
CONTACT RESISTANCE: 30 MILLIOHMS MAX
INSULATION RESISTANCE: 500 MEGAOHMS MIN
DIELECTRIC WITHSTANDING VOLTAGE: 1000 Vrms MIN, 60Hz
CURRENT/VOLTAGE: 150 Vac AT 1.5 AMPS MAX AT 25C
FRONT SHIELD: STAINLESS STEEL
CONTACTS: PHOSPHOR BRONZE
MATERIALS AND FINISH
REAR AND INNER SHIELDING: Cu ALLOY, PLATED WITH Ni
HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK
CONTACT FINISH: Au, 0.8
m [30 in]
DURABILITY: 1000 MATING CYCLES
MECHANICAL CHARACTERISTICS
TERMINAL FINISH: Sn
EMPFOHLENER FRONTPLATTEN AUSSCHNITT
RECOMMENDED PANEL
CUTOUT
TOP OF PCB
LP
26.16
[1.030]
88.01
±0.20 [3.465±.008]
0.38
±0.10
[.015
±.004]
NOTE 1: PANEL GROUND FLANGES TOP, BOTTOM, SIDES (GF9)
NOTE 2: GROUNDING PIN BETWEEN EVERY OTHER PORT [P]
NOTE 3. 3 SIDE GROUND TABS EACH SIDE; STAGGERED (S1)
Date
Rev.
in mm
ERNI Components
CHESTER, VA U.S.A.
Group/Type
[in]
I
Scale
Designation
Tolerances
Consider
pr
otection
memo
fr
om
DIN
34
All rights reserved.
Only for information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
Subject to modification without
prior notice.
Drawing will not be updated.
Information:
2:1
MAXMJ

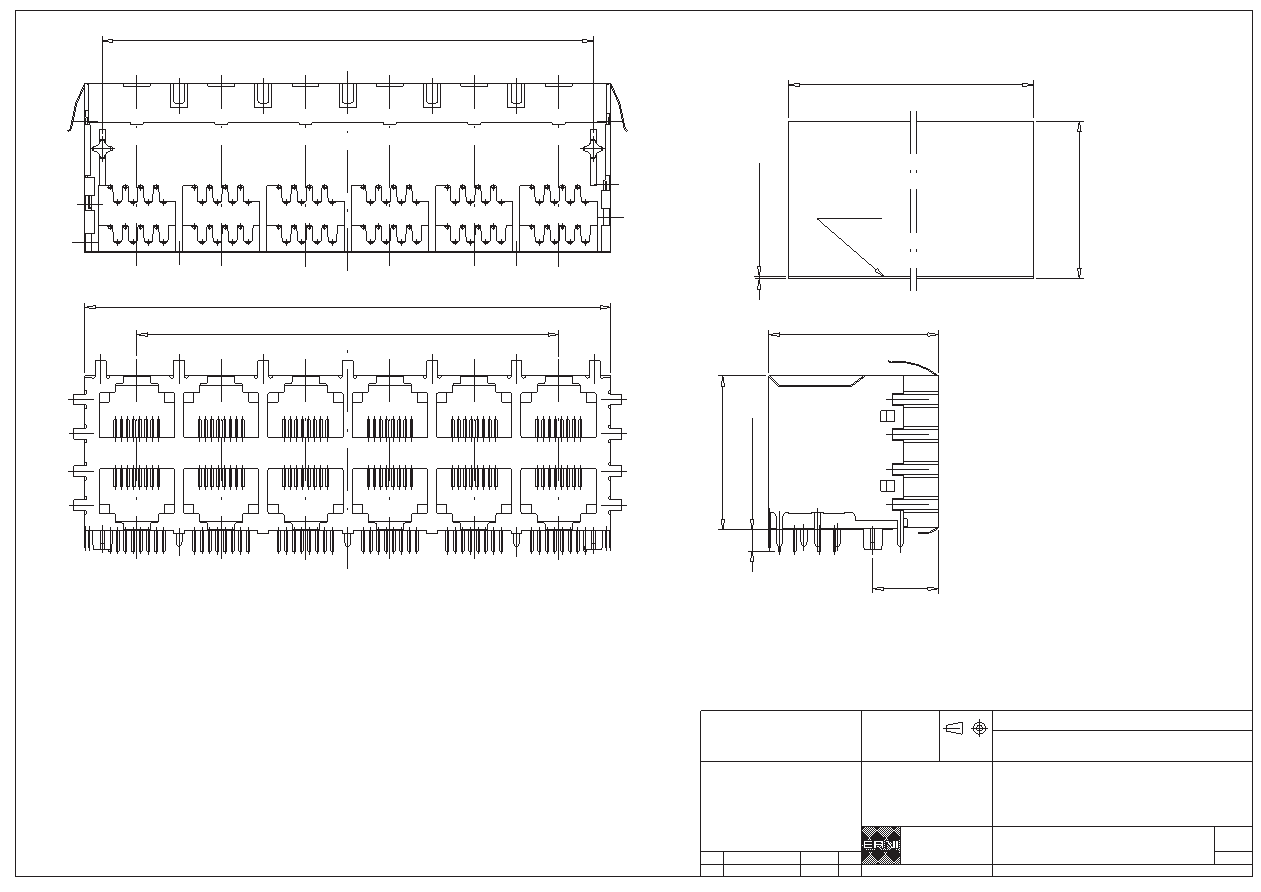

MOD JACK - MJIM
8C8T, 2X6, INTEGRATED MAGNETICS
203166
