24

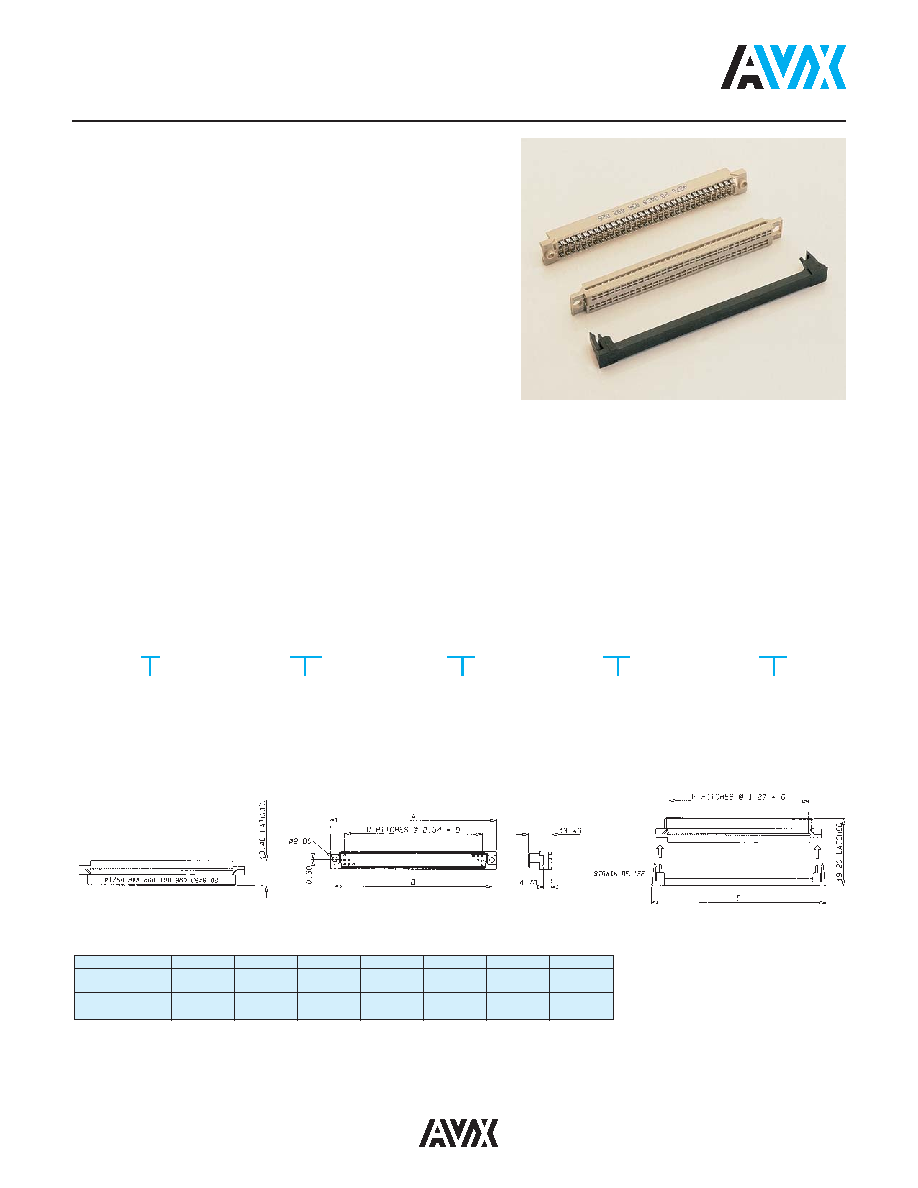

IDC DIN Connector
Series 8459
20
Connector Code
Prefix
8459
Series Number
096
Insulator Size
048 or 096 (See note)
001
Variation
001 = With strain relief
002 = Without strain relief
026
Plating Gold over Nickel
002 = DIN Class III
026 = Class II
050 = Class I
ORDERING CODE
Note: 96 position insulator fitted with 2 rows of 32 contacts, rows A and C.
48 position insulator fitted with 2 rows of 16 contacts, rows A and C.
Insulator Size
AB
C
D
E
F
G
048 position (3 x 16)
54.90
50.00
15
38.10
60.00
31
39.37
(2.16)
(1.97)
(1.50)
(2.36)
(1.55)
096 position (3 x 32)
94.90
90.00
31
78.74
100.00
63
80.01
(3.74)
(3.54)
(3.10)
(3.94)
(3.15)
Series 8459 IDC DIN connector are based on DIN 41612.
This series is loaded with 64 contacts in 2 rows of 32 in
rows "A" and "C". Also available is a 1/2 "C" version, with 2
rows of 16 contacts, also loaded in rows "A" and "C". A
strain relief is available as an option. Use of the Series 2521
accessory, which is optional, provides a connector latch
and eject system from inverted format shells. This connec-
tor series will mate with any industry standard DIN
connectors that are loaded only in rows "A" and "C".
Material:
Molding - UL94VO rated grey polyester
Contact - Phosphor bronze
Contact Plating:
Gold over nickel
Current Rating per contact
at ambient
+20C 3 amp
+70C 1.5 amp
+100C 1 amp
Working Voltage:
350V DC or AC peak
Contact Resistance:
15 milliohms max.
Operating Temperature:
-55C to +125C
Insertion/Withdrawal Force (Mating):
1N max/0.2N min per contact
Wire Gauge:
26 AWG Solid & Stranded
28 AWG Solid & Stranded
DIMENSIONS: millimeters (inches)
TECHNICAL SPECIFICATION
