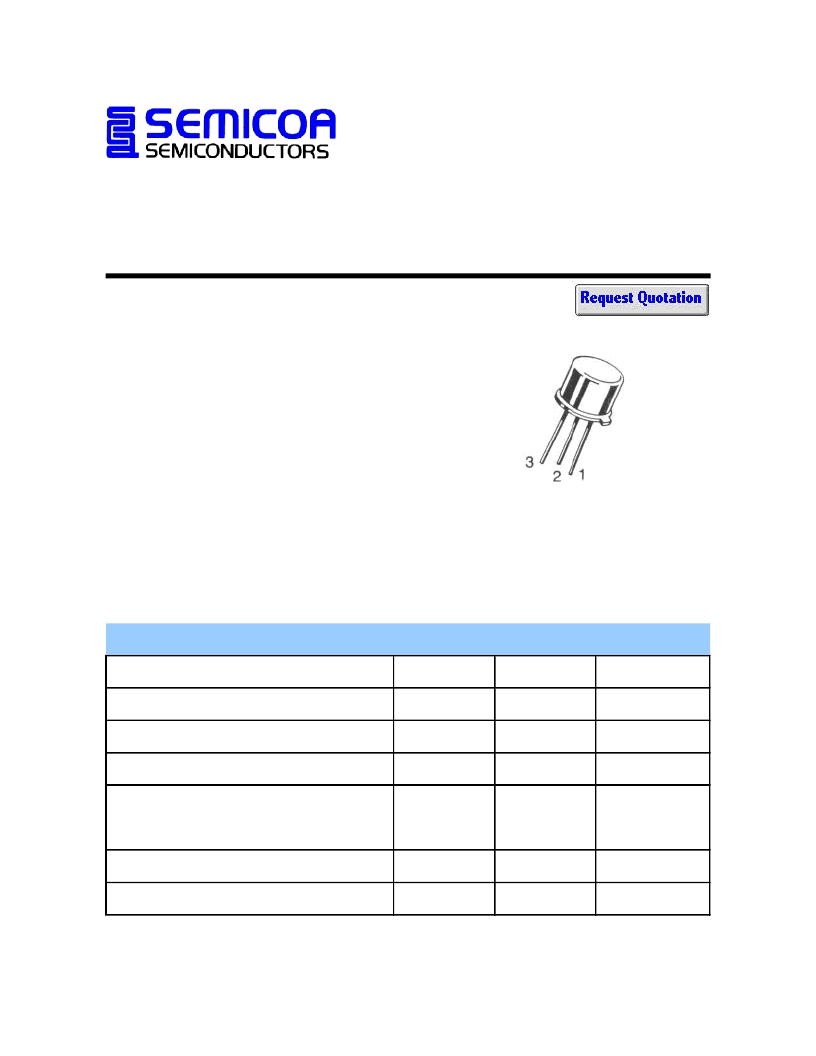

Type 2N3506
Geometry
1506
Polarity NPN
Qual Level: JAN - JANTXV
Data S heet No. 2N3506
Generic Part Number:
2N3506
REF: MIL-PRF-19500/349
Features:
General-purpose silicon transistor
for switching and amplifier appli-
cations.
Housed in
TO-39
case.
Also available in chip form using
the
1506
chip geometry.
The Min and Max limits shown are
per
MIL-PRF-19500/349
which
Semicoa meets in all cases.
Rating
Symbol
Rating
Unit
Collector-Emitter Voltage
V
CEO
40
V
Collector-Base Voltage
V
CBO
60
V
Emitter-Base Voltage
V
EBO
5.0
V
Collector Current, Continuous
I
C
3.0
A
Power Dissipation, T
A
= 25
o
C
1.0
W
Derate above 25
o
C
5.71
mW/
o
C
Operating Junction Temperature
T
J
-65 to +200
o
C
Storage Temperature
T
STG
-65 to +200
o
C
Maximum Ratings
T
C
= 25
o
C unless otherwise specified
P
T
TO-39
