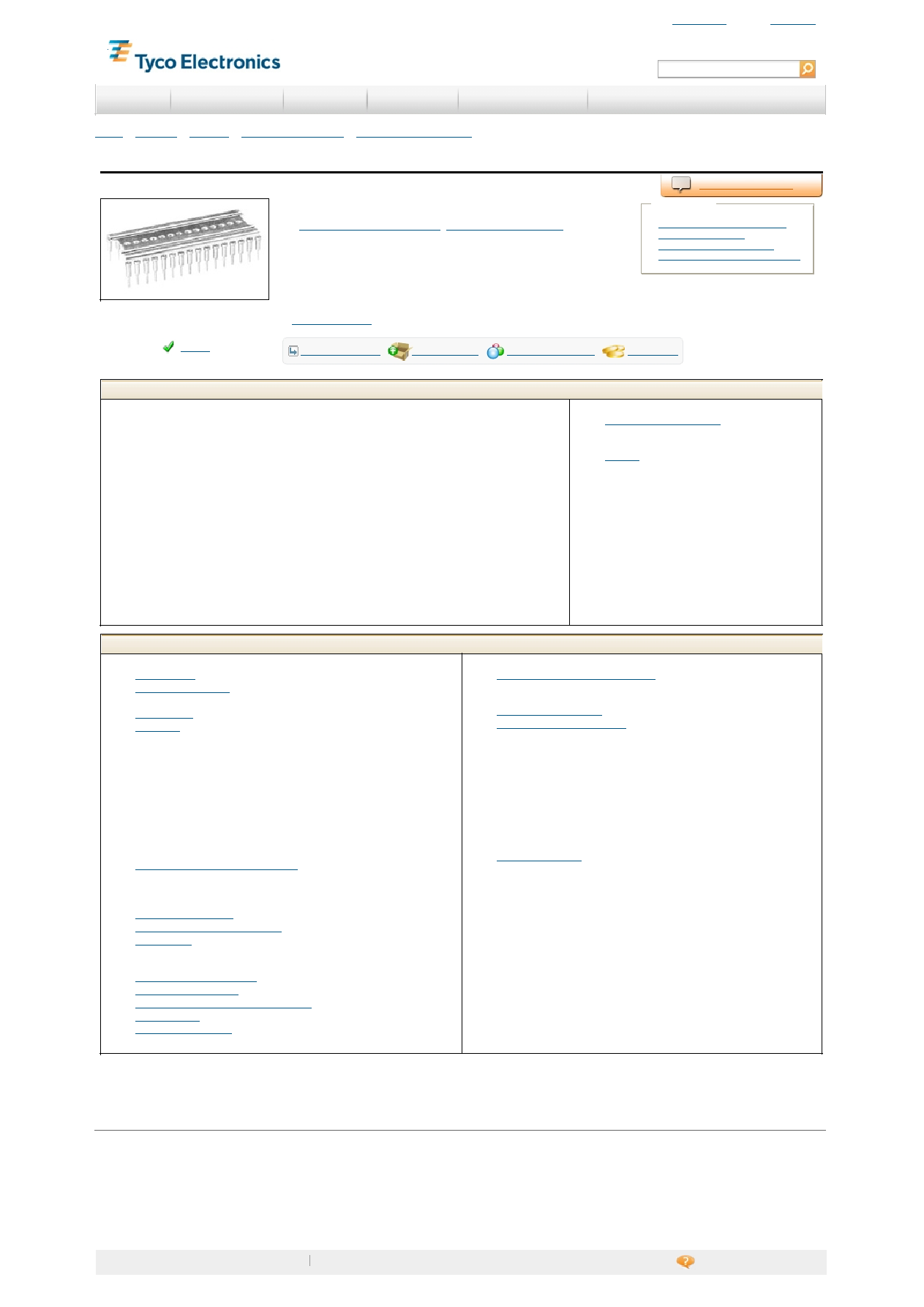

5-1437541-1 Product Details
5-1437541-1
T E I nternal N umber: 5 -1 4 3 7 5 4 1 -1
DIP Sockets
Product Highlights:
l
Socket Style = Standard
l
Through Hole Contact Termination Type
l
2.54 mm Centerline
l
Row-to-Row Spacing = 7.62 mm
l
14 Positions
Quick Links
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Related Products:
l
Product Features (Please use the Product Drawing for all design activity)
Product Type Features:
l
Socket Style = Standard
l
Number of Positions = 14
l
Profile = Standard
l
Frame Style = Disposable Carrier
l
Leg Style = Straight
l
Sleeve Material = Machined Brass
l
Product Series = 700 Series
l
Comment = Premium Series
Electrical Characteristics:
l
Insulation Resistance (M?) = 5,000
l
Contact Resistance (m?) = 10
l
Contact Rating = 3A
Termination Related Features:
l
Termination Post Length (mm [in]) = 3.18 [0.125]
l
Solder Tail Contact Plating = Tin
Body Related Features:
l
Centerline (mm [in]) = 2.54 [0.100]
l
Row-to-Row Spacing (mm [in]) = 7.62 [0.300]
l
Mount Style = Vertical
Contact Related Features:
l
Contact Termination Type = Through Hole
l
Contact Base Material = Beryllium Copper
l
l
Contact Style = Screw Machine
l
Mating Contact Type = Four-Fingered
Configuration Related Features:
l
Height Above PC Board (mm [in]) = 4.20 [0.165]
Industry Standards:
l
RoHS/ELV Compliance = RoHS compliant, ELV compliant
l
Lead Free Solder Processes = Wave solder capable to 240?C , Wave
solder capable to 260?C , Wave solder capable to 265?C
l
RoHS/ELV Compliance History = Always was RoHS compliant
Conditions for Usage:
l
Temperature Range (?C) = -55 – +125
Operation/Application:
l
Application = Production
Packaging Related Features:
l
Packaging Method = Package
Other:
l
Brand = AMP
