| 型號： | 54ACT139FMQB |
| 廠商： | NATIONAL SEMICONDUCTOR CORP |
| 元件分類： | 編、解碼器及復用、解復用 |
| 英文描述： | AC SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDFP16 |
| 封裝： | CERAMIC, FP-16 |
| 文件頁數： | 1/8頁 |
| 文件大小： | 165K |
| 代理商： | 54ACT139FMQB |
54AC139
54ACT139
Dual 1-of-4 Decoder/Demultiplexer
General Description
The ’AC/’ACT139 is a high-speed, dual 1-of-4 decoder/
demultiplexer. The device has two independent decoders,
each
accepting
two
inputs
mutually-exclusive active-LOW outputs. Each decoder has
an active-LOW Enable input which can be used as a data in-
put for a 4-output demultiplexer. Each half of the ’AC/
’ACT139 can be used as a function generator providing all
four minterms of two variables.
and
providing
four
Features
n
I
CC
reduced by 50%
n
Multifunction capability
n
Two completely independent 1-of-4 decoders
n
Active LOW mutually exclusive outputs
n
Outputs source/sink 24 mA
n
’ACT139 has TTL-compatible inputs
n
Standard Military Drawing (SMD)
— ’AC139: 5962-87623
— ’ACT139: 5962-87553

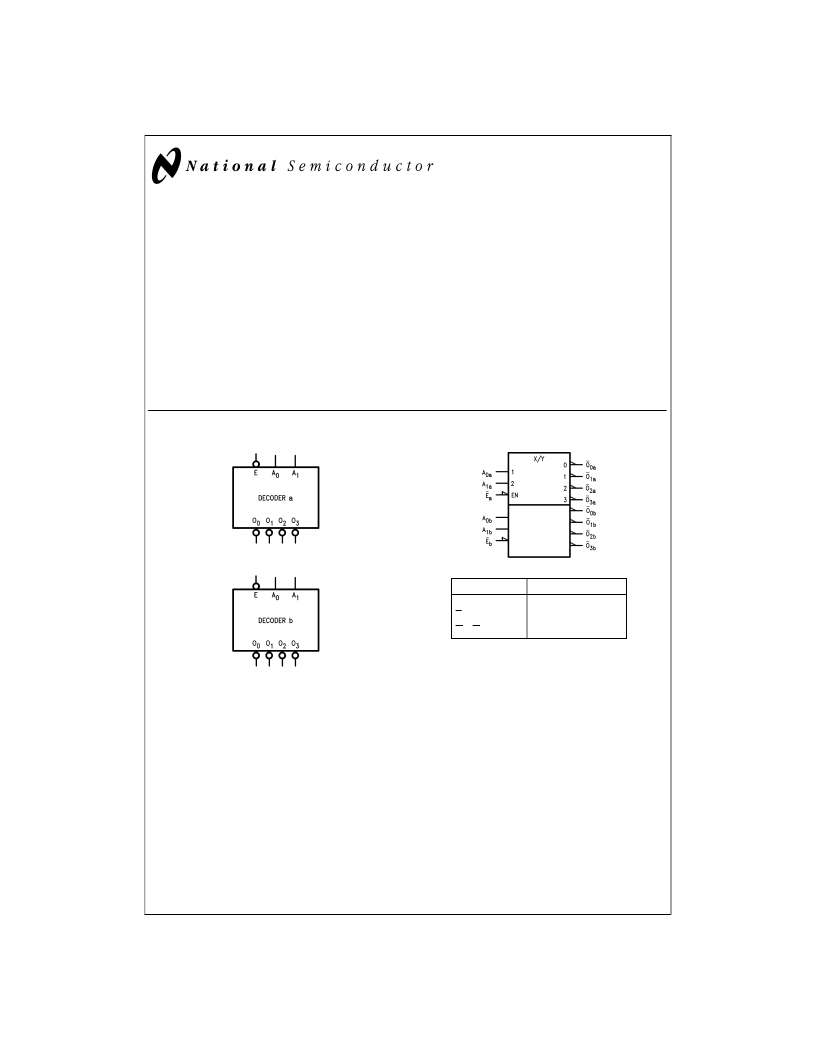

Logic Symbols
Pin Names
A
0
, A
1
E
O
0
–O
3
Description
Address Inputs
Enable Inputs
Outputs
FACT
is a registered trademark of Fairchild Semiconductor Corporation.
DS100269-8
DS100269-1
IEEE/IEC
DS100269-2
August 1998
5
1998 National Semiconductor Corporation
DS100269
www.national.com
