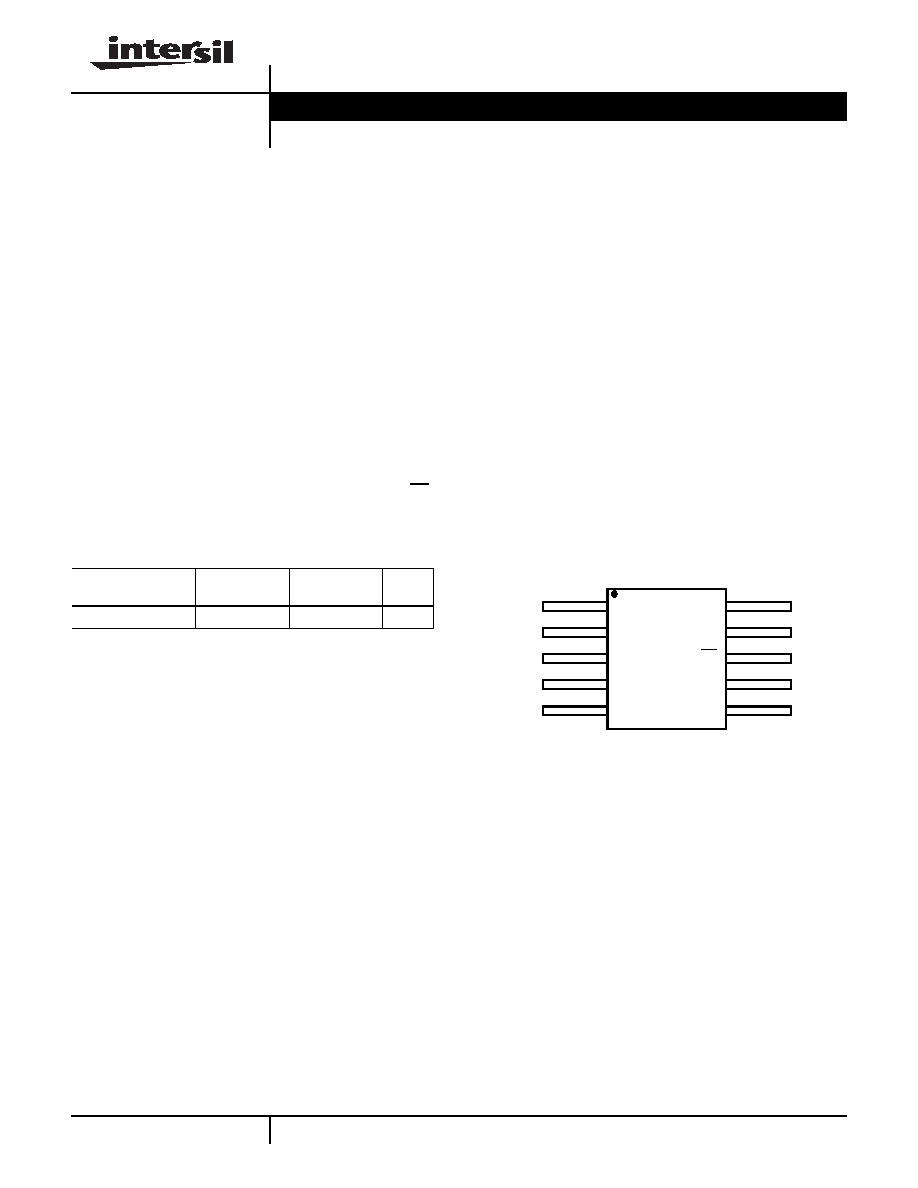

1
FN6490.0
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
| Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2007. All Rights Reserved.
All other trademarks mentioned are the property of their respective owners.
5962-0625501QHC
350MHz Fixed Gain Amplifiers with Enable
The 5962-0625501QHC is a fully DSCC SMD compliant part
information. The 5962-0625501QHC is a fixed gain amplifier
with a bandwidth of 350MHz. This amplifier is ideal for
today’s high speed video and monitor applications. It
features internal gain setting resistors and can be configured
in a gain of +1, -1 or +2.
With a supply current of just 1.5mA and the ability to run
from a single supply voltage from 5V to 12V, these amplifiers
are also ideal for handheld, portable or battery powered
equipment.
The 5962-0625501QHC has an enable and disable function
to reduce the supply current to 25A typical. Allowing the CE
pin to float or applying a low logic level will enable the
amplifier.
Features
Gain selectable (+1, -1, +2)
350MHz -3dB BW (AV = 2)
1.5mA supply current per amplifier
Fast enable/disable
Single and dual supply operation, from 5V to 12V
Applications
Battery powered equipment
Handheld, portable devices
Video amplifiers
Cable drivers
RGB amplifiers
Pinout
5962-0625501QHC
(10 LD FLAT PACK)
TOP VIEW
Ordering Information
PART NUMBER
PART
MARKING
PACKAGE
PKG.
DWG. #
5962-0625501QHC
06255 01QHC
10 Ld Flat Pack K10.A
IN+
VS-
CE
VS+
NC
10
9
8
7
6
2
3
4
5
1
IN-
NC
OUT
NC
Data Sheet
May 2, 2007
