COAXICON Series Mobile Phone Switching Coax Connectors
Product Facts
■
Able to switch RF signal
from internal to external
antenna
■
SMD component for
standard pick & place
■
Up to 2.4 GHz
■
Up to 30,000 life cycles
■
High radial and axial
tolerance capture
■
Low insertion loss
■
Right-angle cable plug with
floating for alignment
tolerance capture
■
Application in handsets
Product Specification
108-71000
Technical Features
Impedance
— 50 Ohms
Operating Temperature
—
–40°C to +85°C
Radial Tolerance Capture
—
±1.0 [.039] (except for 3.5 [.138] height)
Axial Tolerance Capture
— 0.6 [.024]
Plating
— Outer shell and center
contact are gold plated
Short Stamped Contact
—
Selective gold plating
Long Stamp Contact (switch)
—
Full gold plating with ink barrier
Insertion Loss
— 0.30 dB max.
at 2 GHz
Isolation
— 26 dB min. at 2 GHz
VSWR
— 1.15:1 at 1 GHz, below
1.20:1 at 2 GHz
Mated Insertion Loss (after life
cycle testing)
— Below 0.30 dB at
1 GHz, below 0.45 dB at 2 GHz
Unmated Insertion Loss (after life
cycle testing)
— Below 0.20 dB at
1 GHz, below 0.35 dB at 2 GHz
Packaging on reels for SMD.
For more details, refer to the product
specification.
The Tyco Electronics SMD
mobile phone connector
system offers a low-cost
and effective solution to
passive switching between
an internal and external
phone antenna. When
implemented in a cradle kit,
the connector helps to
make possible hands-free
operation of the mobile
phone within a vehicle,
enhancing safety and per-
mitting compliance with a
growing body of legislation.
Connection to the external
antenna also enhances
signal gain and clarity.
The connector design
accommodates gross mis-
alignment between the
phone and cradle, which is
extremely important when
blindmating is necessary.
The Tyco Electronics switch-
ing coax connector system
meets all performance
objectives, including up to
30,000 connect/disconnect
and switching cycles over
the connector’s life.

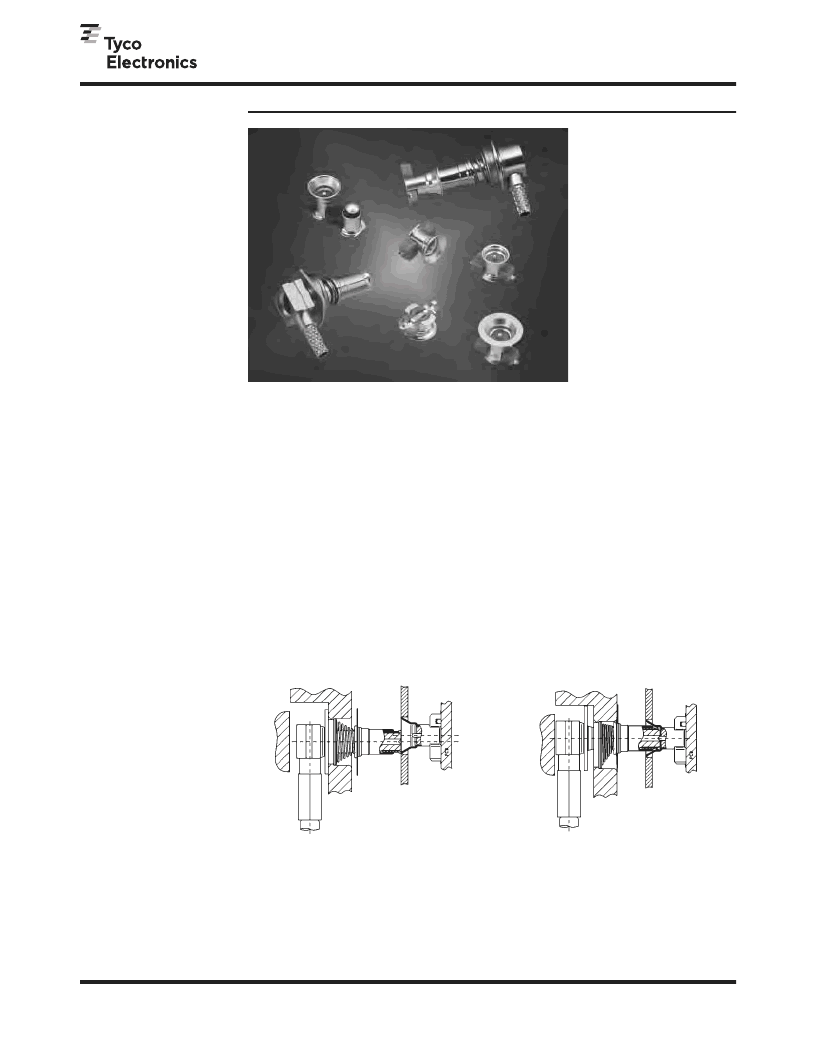

Figure 1 — System Configuration
Figure 2 — System Configuration
229
Catalog 1307191
Revised 3-07
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
www.tycoelectronics.com
RF Coax Connectors
